KA67V-AXMFSW (1983)

Toyota Carina Fr

Production Aug 1983 - Apr 1988
Engine 5KJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

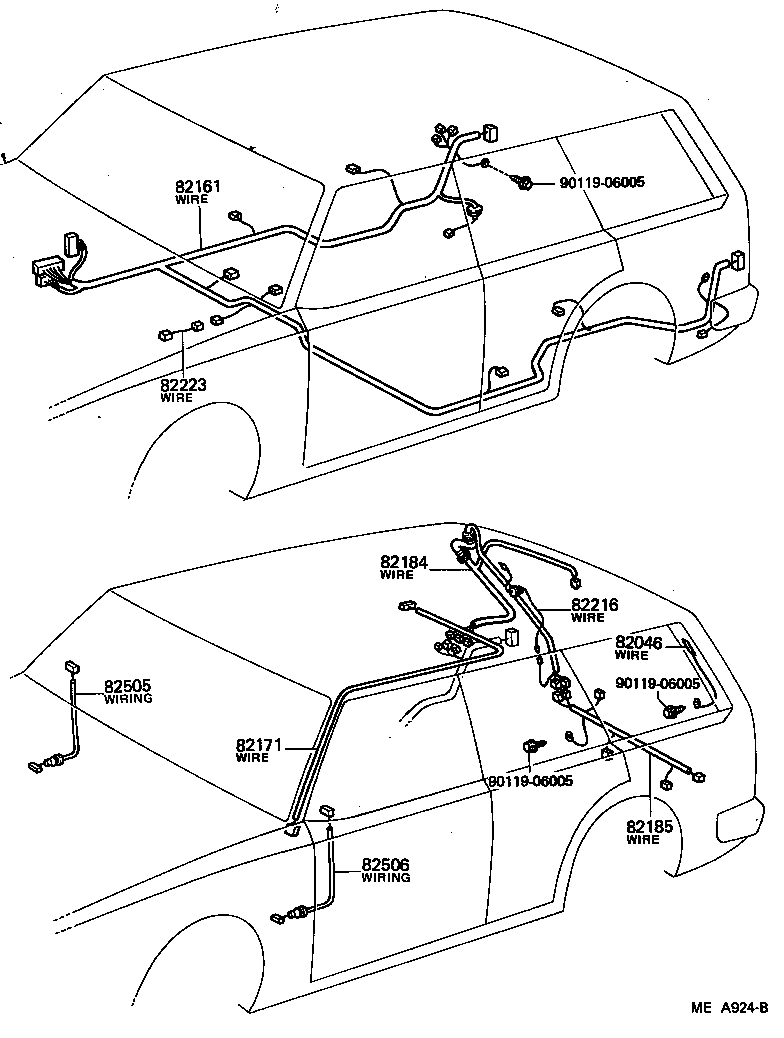

ILLUST NO. 2 OF 5(8109-8804)V,WG

Click highlighted areas on diagram

diagram 82046 82161 82171 82184 82185 82216 82223 82505 82506 9011906005 9011906005 9011906005
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-91255

CA67,KA67,SA60,TA67..V,WG

 1
82171 - WIRE, ROOF, NO.1
82171-91C01

CA67,KA67,TA67

 1
82184 - WIRE, BACK DOOR, NO.1
82184-91C02

CA67,KA67,TA67

W/RR DEFOGGER

 1
82185 - WIRE, BACK DOOR, NO.2
82185-91C01

CA67,KA67,TA67

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-91255

CA67,KA67,TA67

 1
Common parts
90119-06005
