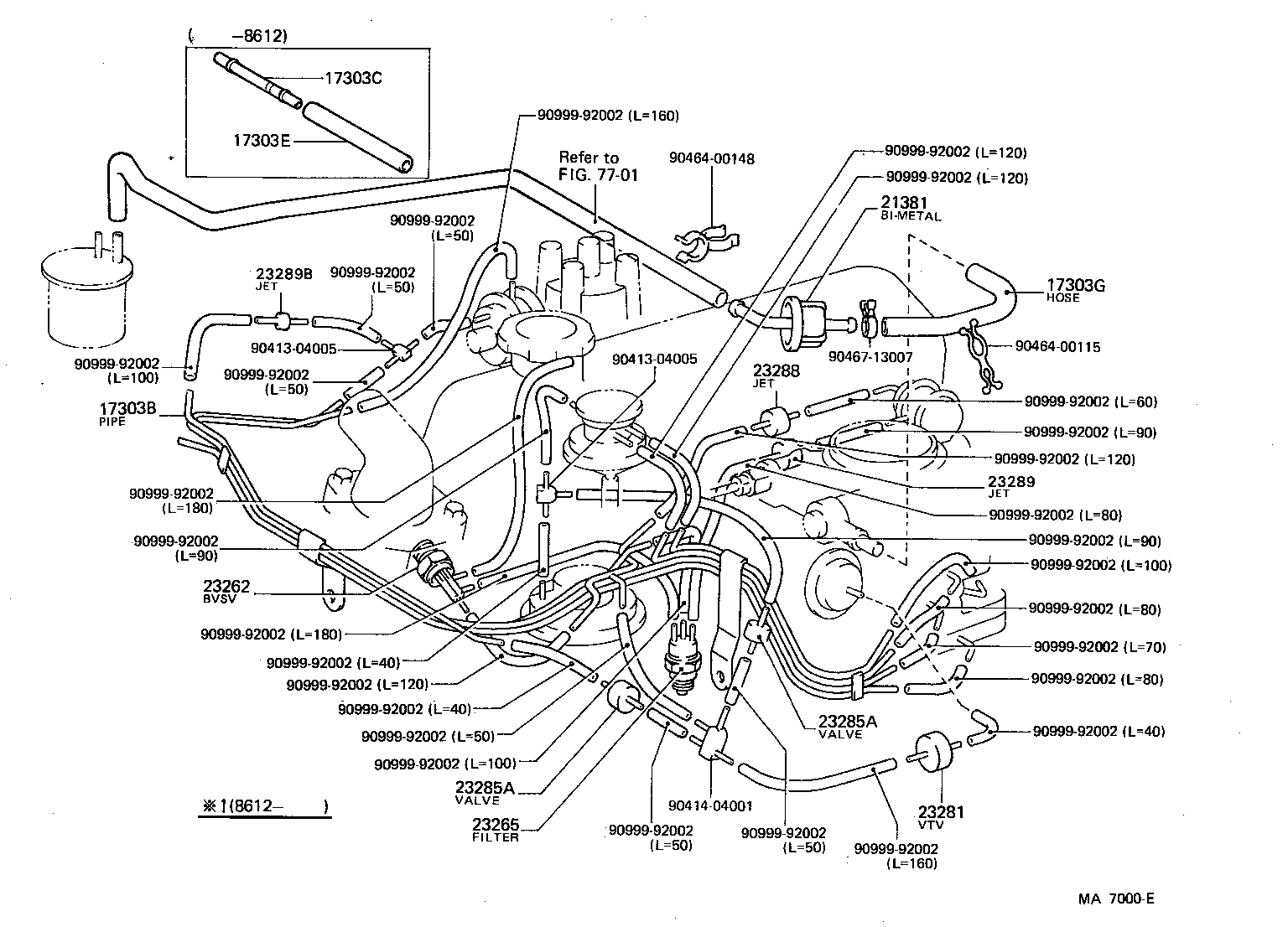

Toyota Carina fr KA67 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-13110	5KJ..KA67	08/1983 - 04/1988	1
17303C - PIPE SUB-ASSY, AIR, NO.2
23818-13030	5KJ..KA67	08/1983 - 12/1986	1
17303E - HOSE, NO.1(FOR AIR PIPE)
90445-14084	5KJ..KA67	08/1983 - 12/1986	1
17303G - HOSE, NO.3(FOR AIR PIPE)
90910-05161	5KJ..KA67	08/1983 - 04/1988	1
21381 - BIMETAL, THERMOSTATIC
21381-13030	5KJ..KA67	08/1983 - 04/1988	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-13010	5KJ..KA67	08/1983 - 04/1988	1
23265 - FILTER, GAS, NO.1
90917-11024	5KJ..KA67 DENSO	09/1981 - 04/1988	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014	5KJ..KA67	09/1981 - 04/1988	1
23285A - VALVE, CHECK, NO.1
90917-10049	5KJ..KA67	09/1981 - 04/1988	2
23285A - VALVE, CHECK, NO.1
90917-10049	5KJ..KA67	09/1981 - 04/1988	2
23288 - JET, NO.1
90925-04005	5KJ..KA67 BLUE	08/1983 - 04/1988	1
23289 - JET, NO.2
90925-04006	5KJ..KA67 YELLOW	08/1983 - 04/1988	1
23289B - JET, NO.3
90925-04031	5KJ..KA67	08/1983 - 04/1988	1
Common parts
90413-04005
90414-04001
90464-00115
90464-00148
90467-13007
90999-92002
Linked diagrams
7701

KA67V-AXMFSW (1983)
