KA67V-AXKRSW (1983)

Toyota Carina Fr

Production Aug 1983 - Apr 1988
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5KJ

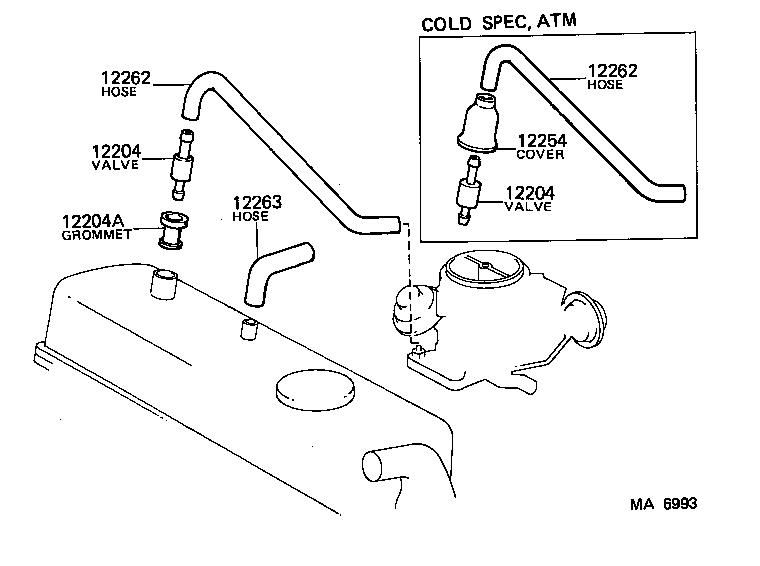

Click highlighted areas on diagram

diagram 12204 12204 12204A 12254 12262 12262 12263
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-13060

5KJ..KA67

 1
12204-13090

5KJ..KA67

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-13060

5KJ..KA67

 1
12204-13090

5KJ..KA67

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-16003

5KJ..KA67

 1
12254 - COVER, VENTILATION VALVE
12236-24010

5KJ..KA67..MTM

COLD SPEC

 1
12262 - HOSE, VENTILATION, NO.2
12261-13030

5KJ..KA67

 1
12262 - HOSE, VENTILATION, NO.2
12261-13030

5KJ..KA67

 1
12263 - HOSE, VENTILATION, NO.3
90910-05130

5KJ..KA67

 1
