KA67V-AXKFSW (1983)
Toyota Carina Fr
Production
Aug 1983
-
Apr 1988
Engine
5KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8804)V,WG

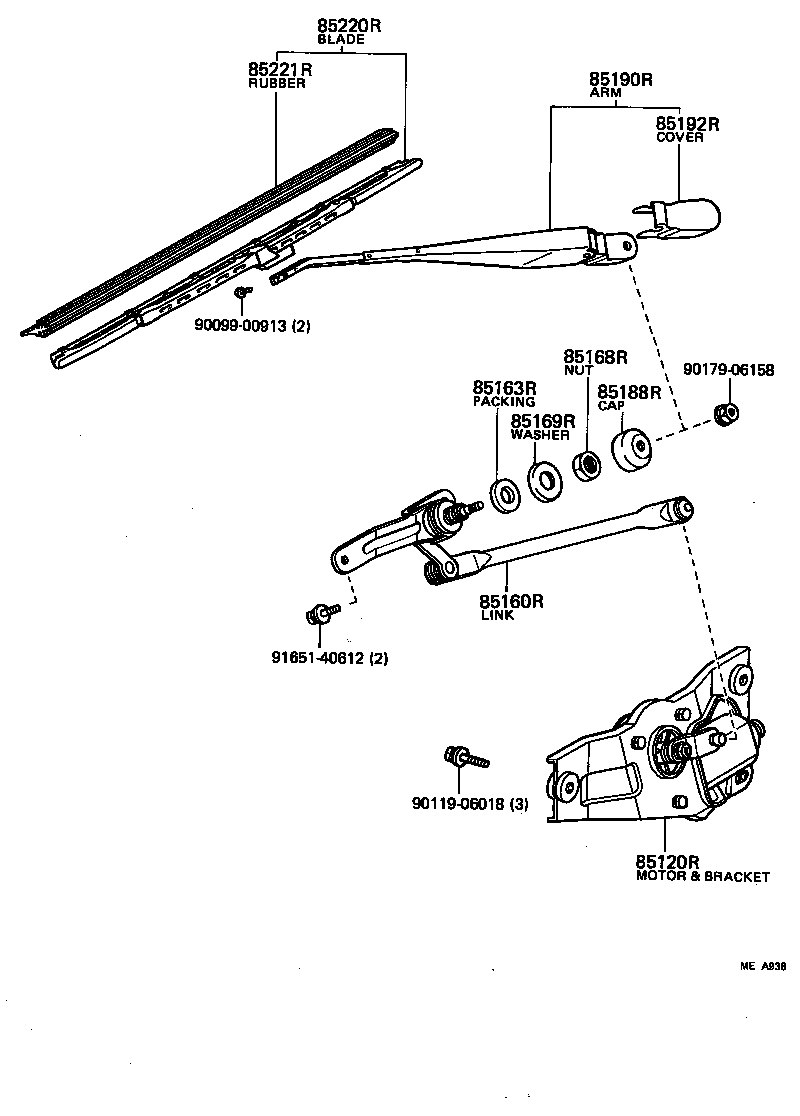

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85120-91C01 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-91C02 |
CA67,KA67,SA60..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85163R - PACKING, REAR WIPER PIVOT, NO.1 | ||||
| 85174-12320 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05141 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-01458 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85188R - CAP, REAR WIPER PIVOT, NO.1 | ||||
| 85178-12320 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-91C03 |
CA67,KA67,SA60..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-14020 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-14400 |
CA67,KA67,SA60..(V,WG)..(DLX,SG,ST) |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-91C01 |
CA67,KA67,SA60,TA67..(V,WG)..(DLX,SG,ST) |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06018 | ||||
| 90179-06158 | ||||
| 91651-40612 | ||||
