KA67V-AXKFSW (1983)
Toyota Carina Fr
Production
Aug 1983
-
Apr 1988
Engine
5KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8804)

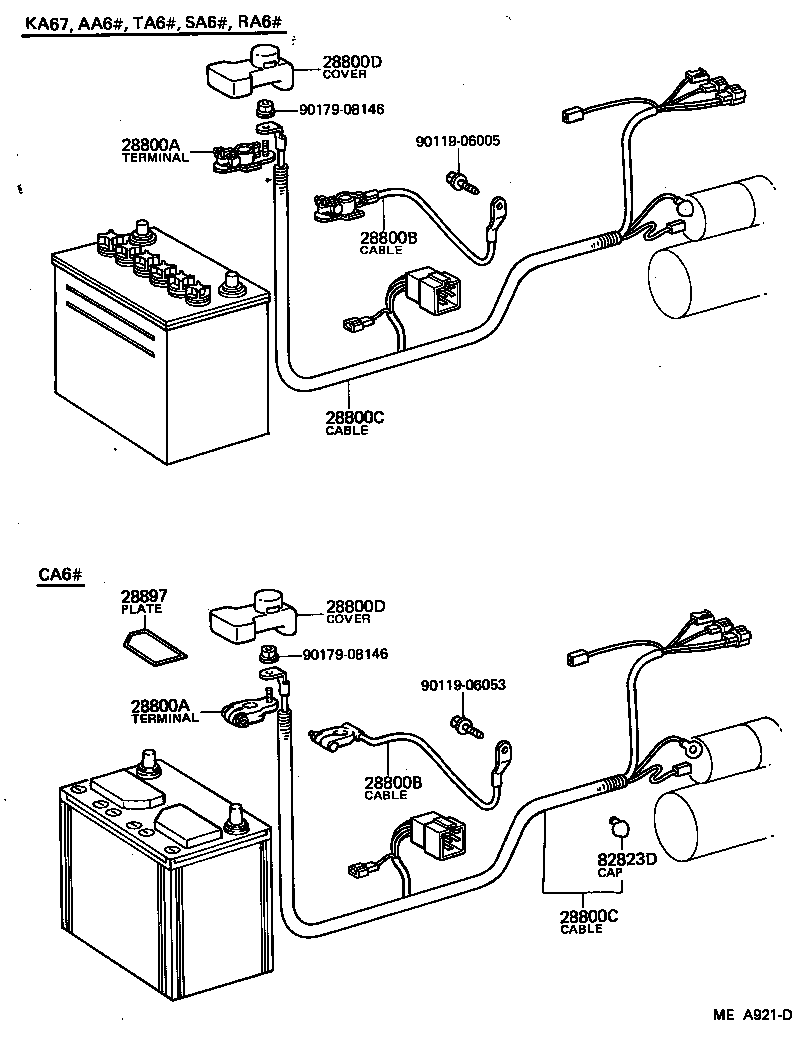

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05028 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,2TGEU,3T#..AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05028 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,2TGEU,3T#..AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02222 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,2TGEU,3T#..AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 28800B - CABLE, BATTERY TO GROUND | ||||
| 90982-02222 |
12TJ,18RGEU,3AU,4AGEU,5KJ,1SU,2TGEU,3T#..AA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-14440 |
5KJ..KA67 |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-14440 |
5KJ..KA67 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-24010 |
12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-24010 |
12TJ,18RGEU,3AU,4AGEU,1C,5KJ,1SU,2TGEU,3T#..AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
