KA67V-AXKFSW (1983)

Toyota Carina Fr

Production Aug 1983 - Apr 1988
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8804)SED,V

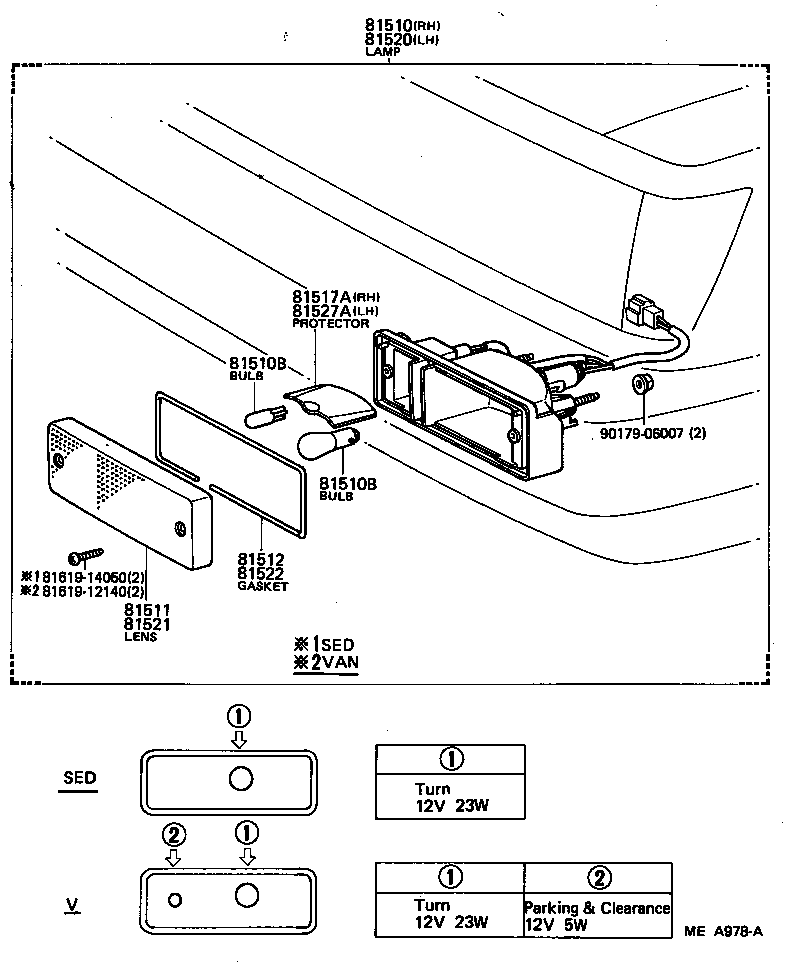

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81517A 81520 81521 81522 81527A 8161912140 8161914050 9017906007
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-19705

CA67,KA67,TA67

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 2
99132-12050

AA60,CA67,KA67,RA63,SA60,TA6#..CP,V,WG

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

AA6#,CA6#,KA67,RA63,SA60,TA6#

12V 23W,12V 23W

 2
99132-12050

AA60,CA67,KA67,RA63,SA60,TA6#..CP,V,WG

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22221

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-14140

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
81517A - PROTECTOR, FRONT TURN SIGNAL LAMP, RH
81517-22220

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-19705

CA67,KA67,TA67

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22221

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-14140

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
81527A - PROTECTOR, FRONT TURN SIGNAL LAMP, LH
81517-22220

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V

 1
Common parts
81619-12140
81619-14050
90179-06007
