KA67V-AXKFSW (1983)

Toyota Carina Fr

Production Aug 1983 - Apr 1988
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5KJ

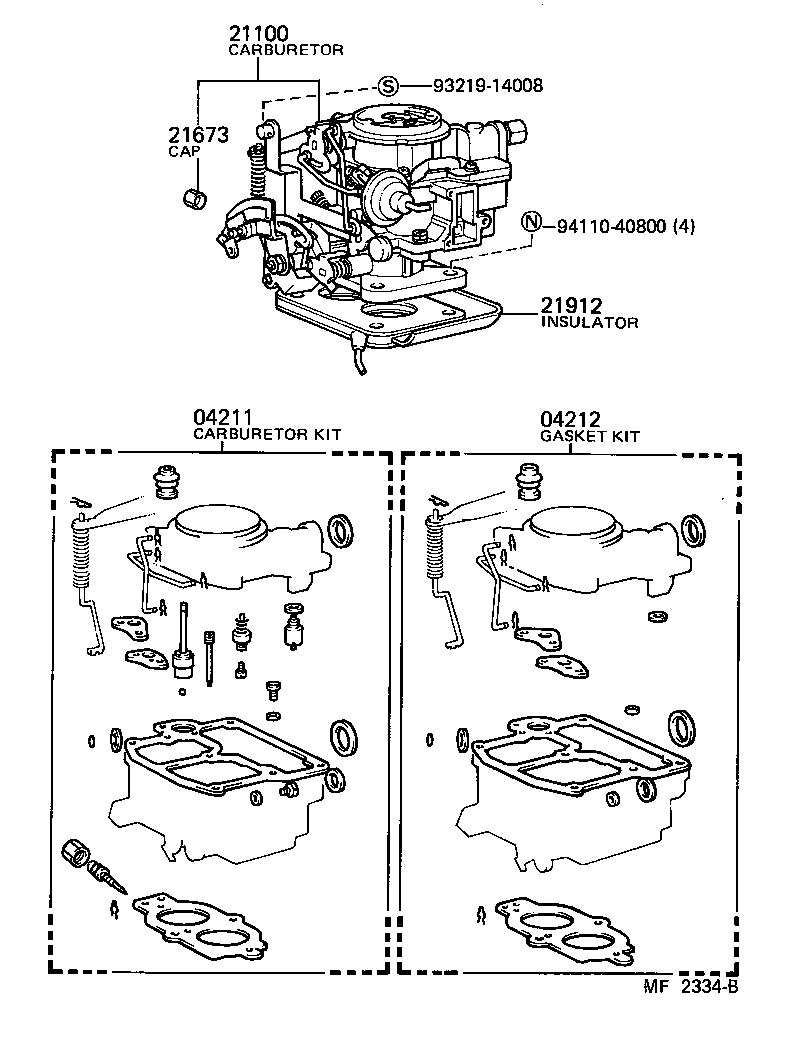

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9321914008 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-13321

5KJ..KA67

 1
04211-13320

5KJ..KA67

 1
04212 - GASKET KIT, CARBURETOR
04212-13041

5KJ..KA67

 1
04212-13040

5KJ..KA67

 1
21100 - CARBURETOR ASSY
21100-13450

5KJ..KA67..MTM

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-13031

5KJ..KA67

 1
Common parts
93219-14008
94110-40800
