KA67V-AXKFSW (1983)

Toyota Carina Fr

Production Aug 1983 - Apr 1988
Engine 5KJ
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8804)5KJ

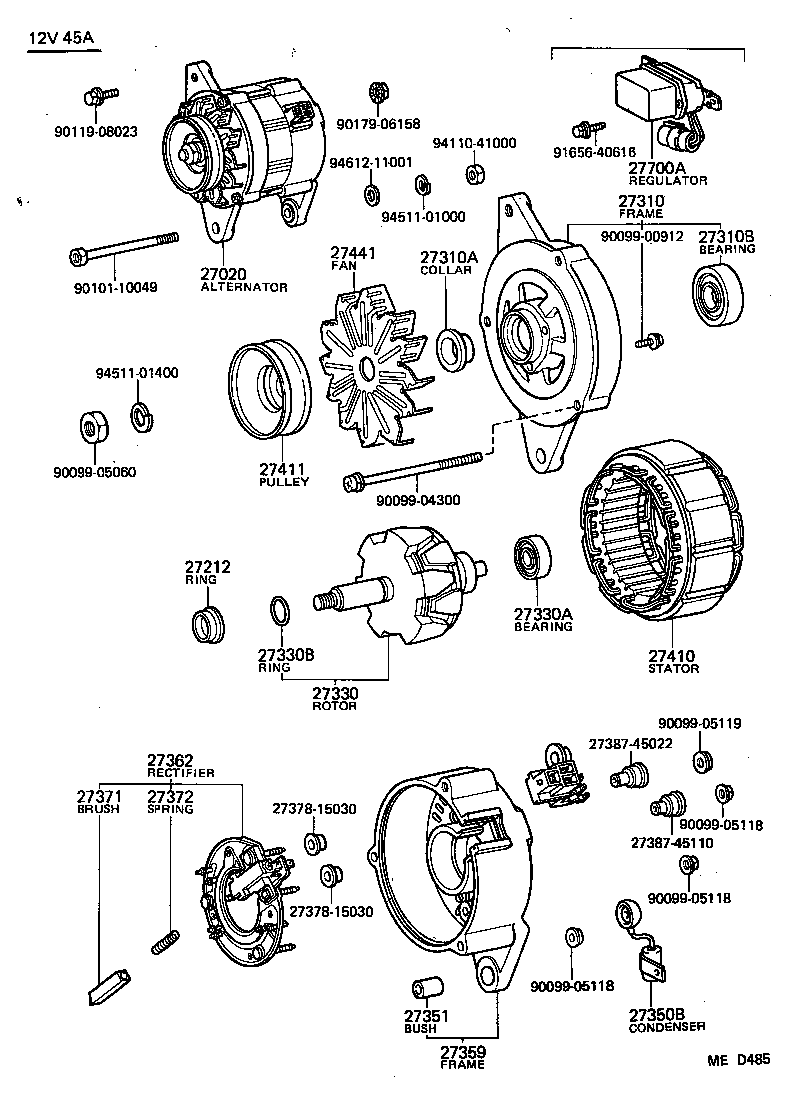

Click highlighted areas on diagram

diagram 27020 27212 27310 27310A 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908023 9017906158 9165640616 9411041000 9451101000 9451101400 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-13170

5KJ..KA67

12V 45A,12V 45A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

12TJ,5KJ..KA67,TA67

12V 45A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13050

5KJ..KA67

12V 45A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6#

12V 45A,55A,60A,65A

 1
27412-31040

3AU,5KJ,3TGTEU..AA60,KA67,TA63

12V 45A,55A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

12TJ,3AU,5KJ..AA60,KA67,TA67

12V 45A,55A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45020

12TJ,5KJ..KA67,TA67

12V 45A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

12TJ,3AU,5KJ..AA60,KA67,TA67

12V 45A,55A

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

12TJ,5KJ..KA67,TA67

12V 45A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6#

12V 45A,55A,60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13090

5KJ..KA67

12V 45A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-13090

5KJ..KA67

12V 45A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6#

12V 45A,55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

12TJ,18RGEU,3AU,5KJ,1SU,2TGEU,3T#..AA60,KA67,RA63,SA60,TA6#

12V 45A,55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

12TJ,5KJ..KA67,TA67

12V 45A

 1
27411 - PULLEY, ALTERNATOR
27411-13160

5KJ..KA67

12V 45A

 1
27441 - FAN, ALTERNATOR
27441-34030

12TJ,3AU,5KJ..AA60,KA67,TA67

12V 45A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63010

12TJ,3AU,1C,5KJ,1SU..AA60,CA6#,KA67,SA60,TA67

12V 45A,55A

 1
Common parts
27378-15030
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
91656-40616
94110-41000
94511-01000
94511-01400
94612-11001
