KA67V-AXKFSW (1983)
Toyota Carina Fr
Production
Aug 1983
-
Apr 1988
Engine
5KJ
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )5KJ

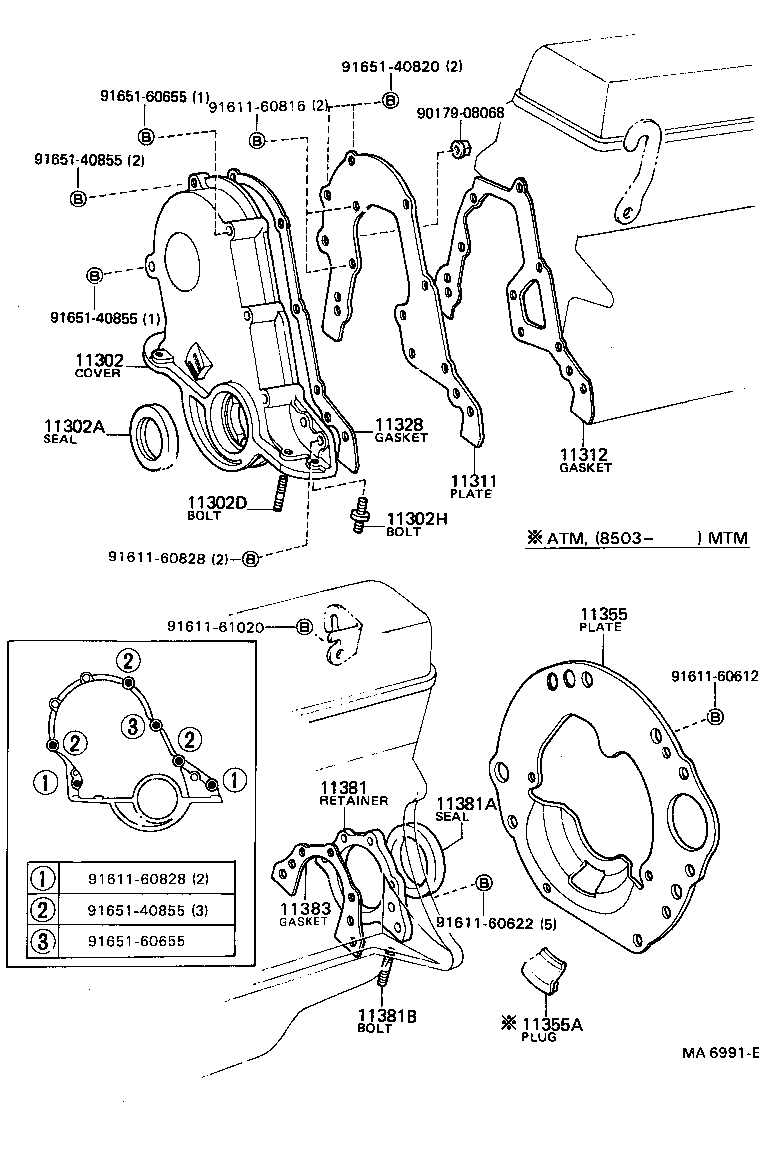

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-13041 |
5KJ..KA67 |
1 | ||
| 11321-13042 |
5KJ..KA67 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-06012 |
5KJ..KA67 L=26,S=12&12 |
2 | ||
| 11302H - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-06006 |
5KJ..KA67 L=26.4,S=12&12 |
2 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-13010 |
5KJ..KA67 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-13030 |
5KJ..KA67 |
1 | ||
| 11312-13040 |
5KJ..KA67 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-13011 |
5KJ..KA67 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11305-13010 |
5KJ..KA67..MTM |
1 | ||
| 11355-24043 |
5KJ..KA67 |
1 | ||
| 11355A - PLUG, HOLE(FOR REAR END PLATE) | ||||
| 90950-01343 |
5KJ..KA67 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-13011 |
5KJ..KA67 |
1 | ||
| 11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) | ||||
| 90116-06035 |
5KJ..KA67 L=23,S=12&9 |
2 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-13010 |
5KJ..KA67 |
1 | ||
| Common parts | ||||
| 90179-08068 | ||||
| 91611-60612 | ||||
| 91611-60622 | ||||
| 91611-60816 | ||||
| 91611-60828 | ||||
| 91611-61020 | ||||
| 91651-40820 | ||||
| 91651-40855 | ||||
| 91651-60655 | ||||
