CA67V-AXMFSY (1982)
Toyota Carina Fr

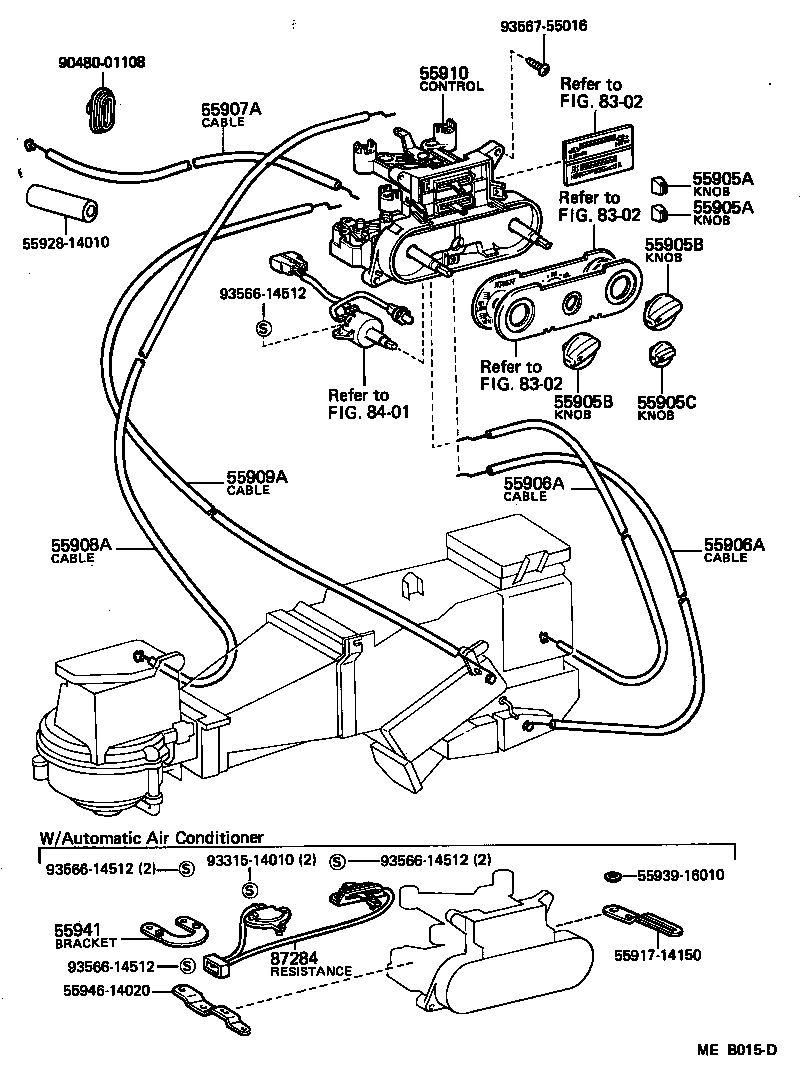

ILLUST NO. 1 OF 3(8109-8804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12070 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-12070 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-24011 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-24011 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-24021 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14150 |
AA6#,CA6#,KA67,RA63,SA60,TA6# WIRE:L=450,TUBE L=400 |
1 | ||
| 55906-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# WIRE:L=450,TUBE:L=385 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-14150 |
AA6#,CA6#,KA67,RA63,SA60,TA6# WIRE:L=450,TUBE L=400 |
1 | ||
| 55906-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# WIRE:L=450,TUBE:L=385 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-14200 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-14080 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-14040 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-14240 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 55917-14150 | ||||
| 55928-14010 | ||||
| 55939-16010 | ||||
| 55946-14020 | ||||
| 90480-01108 | ||||
| 93315-14010 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

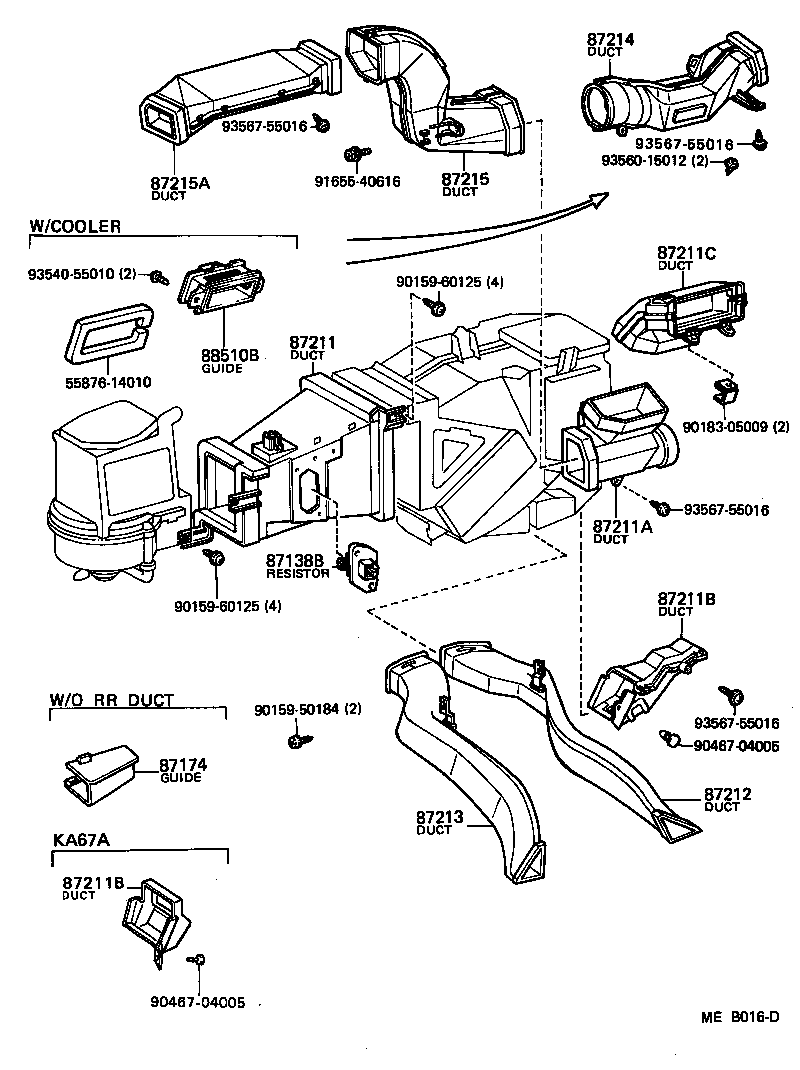

ILLUST NO. 2 OF 3(8109-8804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-14080 |
AA6#,CA6#,KA67,SA60,TA6# |
1 | ||
| 87138-24010 |
AA60,CA6#,RA63,SA60,TA6# |
1 | ||
| 87138-24011 |
AA6#,CA67,KA67,SA60,TA63 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-24032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87201-24031 |
AA60,CA6#,RA63,SA60,TA6# |
1 | ||
| 87201-24033 |
AA6#,CA67,KA67,SA60,TA63 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-14100 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-24020 |
AA6#,CA6#,RA63,SA60,TA6# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-24020 |
AA6#,CA6#,RA63,SA60,TA6# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55086-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-24010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55087-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55088-14050 |
AA60,CA6#,RA63,SA60,TA6# |
1 | ||
| 55088-14051 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 88510B - GUIDE, COOLER AIR | ||||
| 55680-1401004 |
AA6#,CA6#,KA67,RA63,SA60,TA6# BLUE,BLUE,TRIM8# |
1 | ||
| 55680-1401001 |
AA6#,CA6#,KA67,RA63,SA60,TA6# BLACK,BLACK,TRIM2# |
1 | ||
| 55680-1401006 |
AA6#,CA6#,KA67,RA63,SA60,TA6# DARK BROWN,BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 55876-14010 | ||||
| 90159-50184 | ||||
| 90159-60125 | ||||
| 90183-05009 | ||||
| 90467-04005 | ||||
| 91655-40616 | ||||
| 93540-55010 | ||||
| 93560-15012 | ||||
| 93567-55016 | ||||

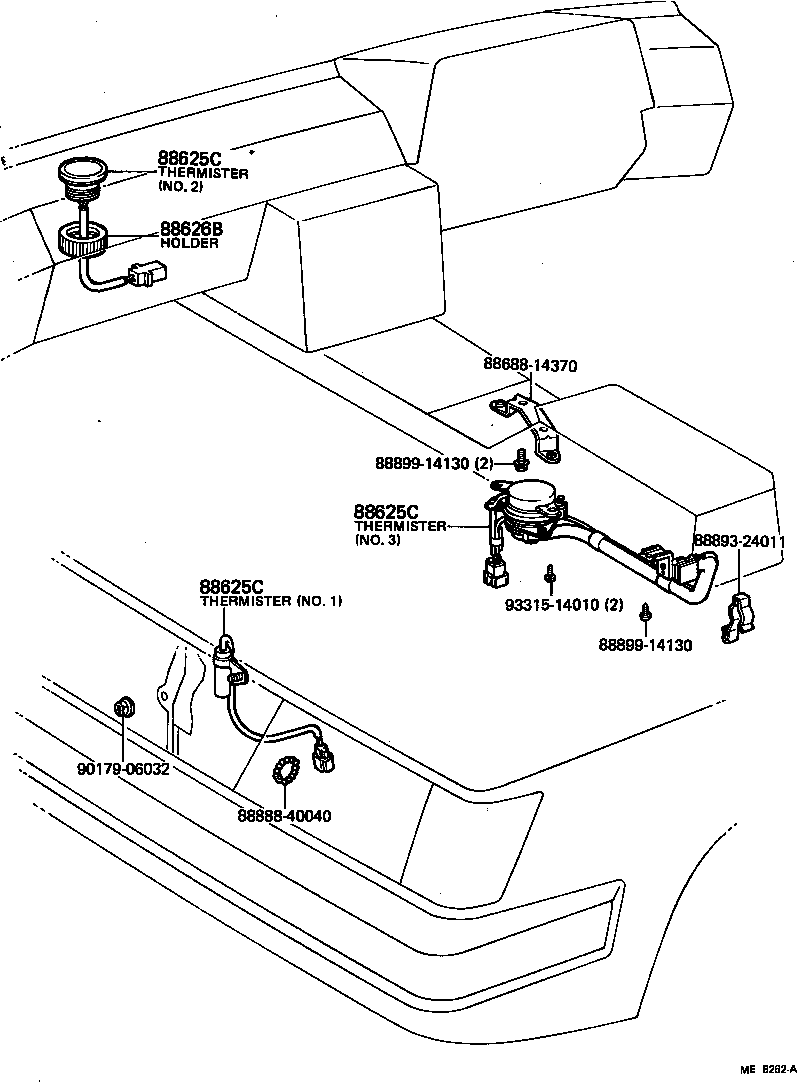

ILLUST NO. 3 OF 3(8109-8804)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-14370 | ||||
| 88888-40040 | ||||
| 88893-24011 | ||||
| 88899-14130 | ||||
| 90179-06032 | ||||
| 93315-14010 | ||||
