CA67V-AXMFSY (1982)

Toyota Carina Fr

Production Feb 1982 - Apr 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

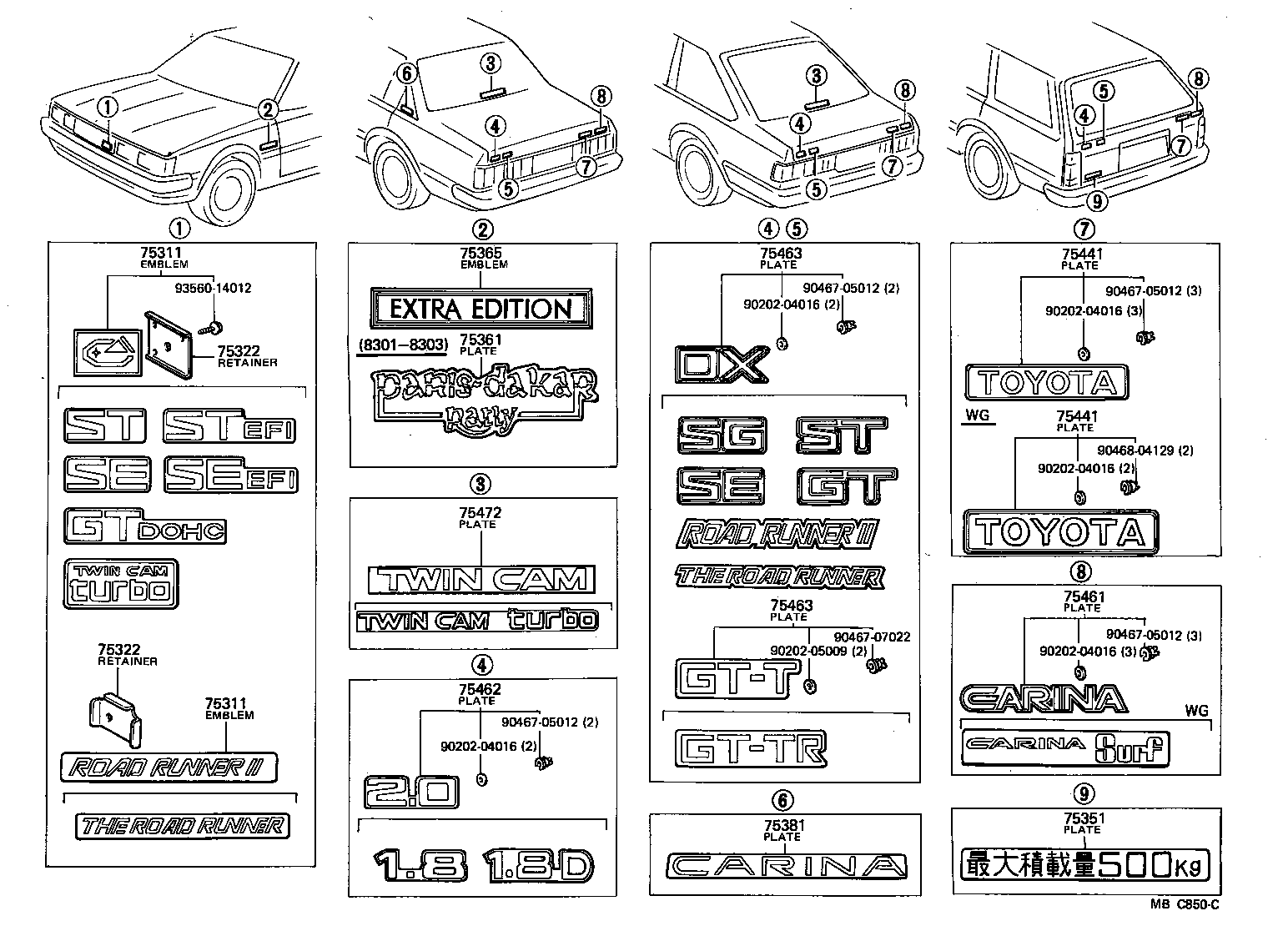

(8109-8305)

Click highlighted areas on diagram

diagram 75311 75311 75322 75322 75351 75361 75365 75381 75441 75441 75461 75462 75463 75463 75472 9020204016 9020204016 9020204016 9020204016 9020204016 9020205009 9046705012 9046705012 9046705012 9046705012 9046707022 9046804129 9356014012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19195

AA60,CA6#,SA60,TA67..DLX,SG,STD

 1
75301-19195

CA67,KA67,TA67

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19195

AA60,CA6#,SA60,TA67..DLX,SG,STD

 1
75301-19195

CA67,KA67,TA67

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14120

AA60,CA6#,SA60,TA67..CP,SED,V

 1
75324-14120

CA67,KA67,TA67

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14120

AA60,CA6#,SA60,TA67..CP,SED,V

 1
75324-14120

CA67,KA67,TA67

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75471-21010

CA67,KA67,TA67

500KG

 1
75441 - PLATE, REAR NAME, NO.1
75443-14190

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

TOYOTA,TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75443-14190

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14160

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

CARINA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-14240

CA6#

1.8D,1.8D

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
Common parts
90202-04016
90202-05009
90467-05012
90467-07022
90468-04129
93560-14012

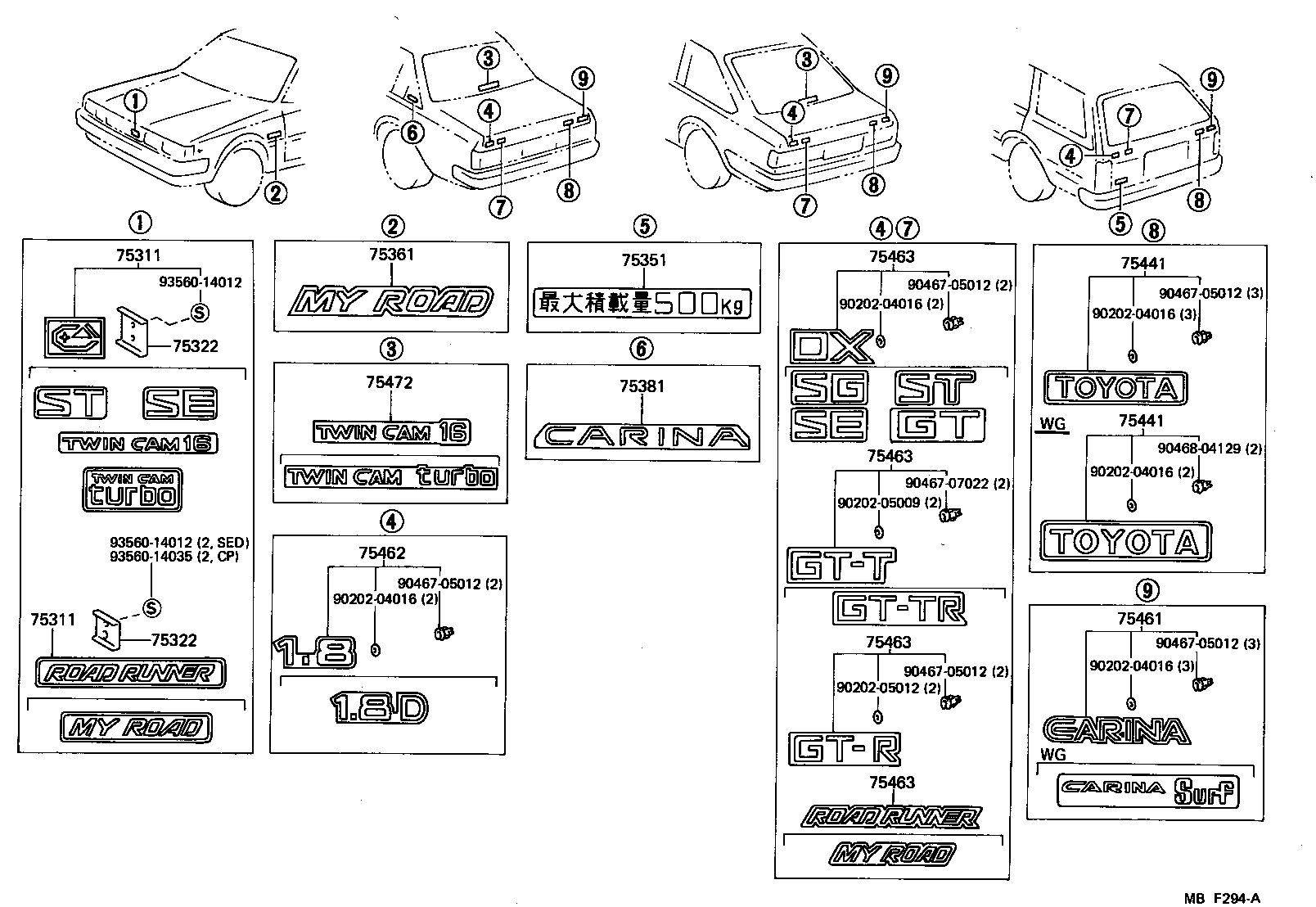

(8305- )

Click highlighted areas on diagram

diagram 75311 75311 75322 75322 75351 75361 75381 75441 75441 75461 75462 75463 75463 75463 75463 75472 9020204016 9020204016 9020204016 9020204016 9020204016 9020205009 9020205012 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9046804129 9356014012 9356014012 9356014035
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19195

AA60,CA6#,SA60,TA67..DLX,SG,STD

 1
75301-19195

CA67,KA67,TA67

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-19195

AA60,CA6#,SA60,TA67..DLX,SG,STD

 1
75301-19195

CA67,KA67,TA67

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14120

AA60,CA6#,SA60,TA67..CP,SED,V

 1
75324-14120

CA67,KA67,TA67

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14120

AA60,CA6#,SA60,TA67..CP,SED,V

 1
75324-14120

CA67,KA67,TA67

 1
75351 - PLATE, REAR NAME, NO.6 (MAXIMUM LOAD)
75471-21010

CA67,KA67,TA67

500KG

 1
75441 - PLATE, REAR NAME, NO.1
75443-14190

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

TOYOTA,TOYOTA

 1
75441 - PLATE, REAR NAME, NO.1
75443-14190

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

TOYOTA,TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14160

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

CARINA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-14240

CA6#

1.8D,1.8D

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14200

AA60,CA6#,KA67,SA60,TA67..SG

SG

 1
Common parts
90202-04016
90202-05009
90202-05012
90467-05012
90467-07022
90468-04129
93560-14012
93560-14035
