CA60-AEMFSY (1982)

Toyota Carina Fr

Production Feb 1982 - May 1984
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )AA60,CA60,SA60..DLX,SG,STD ; (8206-8507)SED..SE,ST

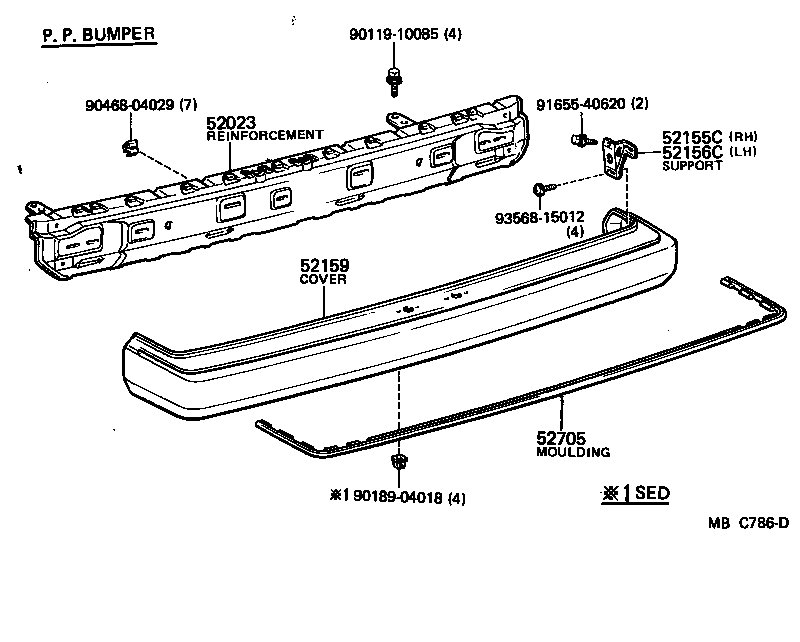

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52159 52705 9011910085 9018904018 9046804029 9165540620 9356815012
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-14060

AA60,CA60,SA60..DLX,SG,STD

 1
52023-14070

AA6#,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST)

*UB

 1
52023-14130

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/*BS

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-14081

AA60,CA60,SA60..DLX,SG,STD

 1
52155-14081

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/*BS

 1
52155-14100

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-14081

AA60,CA60,SA60..DLX,SG,STD

 1
52155-14100

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52156-14081

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/*BS

 1
52159 - COVER, REAR BUMPER
52159-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

URETHANE BUMPER

 1
52159-14260

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/*BS

 1
52159-14110

AA60,CA60,SA60..SED..(DLX,SG,STD)

 1
52705 - MOULDING SUB-ASSY, REAR BUMPER
52751-14040

AA60,CA60,SA60..SED..SE

W/BACK SONAR

 1
52751-14040

AA60,CA60,SA60..SG

 1
Common parts
90119-10085
90189-04018
90468-04029
91655-40620
93568-15012
