CA60-AEMFSY (1982)

Toyota Carina Fr

Production Feb 1982 - May 1984
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8202- )1C

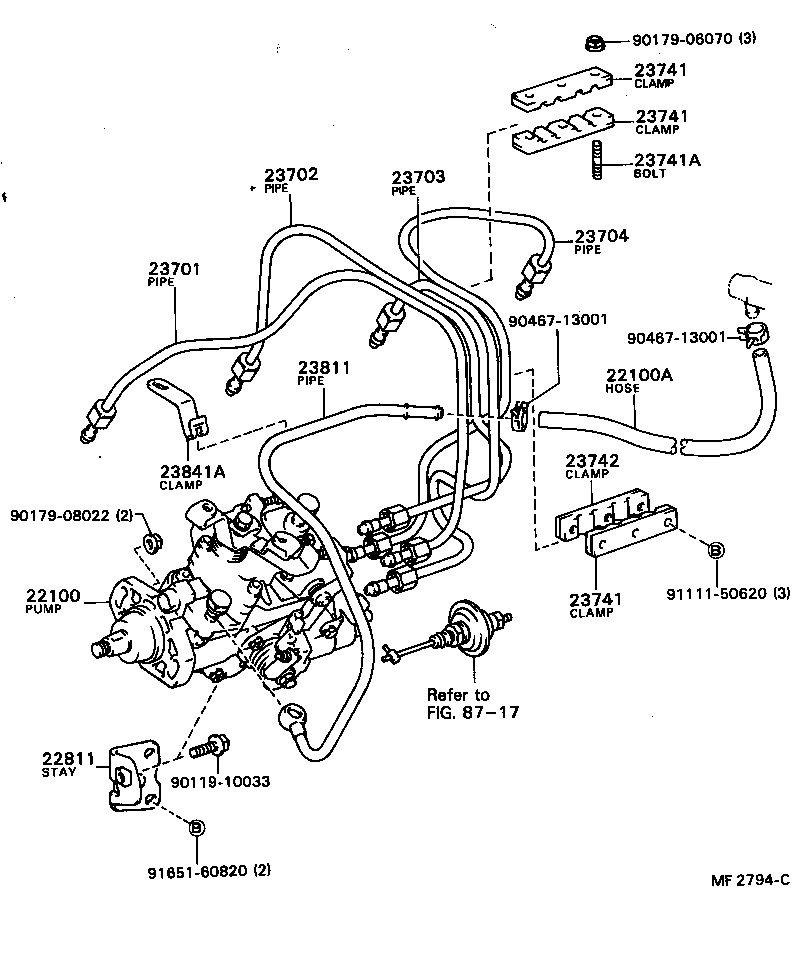

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741A 23742 23811 23841A 8717 9011910033 9017906070 9017908022 9046713001 9046713001 9111150620 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-64010

1C..CA6#..5F..(DLX,SG)

 1
22100-64040

1C..CA60..5F..SE

COLD SPEC

 1
22100-64020

1C..CA60..5F..SE

 1
22100-64290

1C..CA60..5F..SE

COLD SPEC

 1
22100-64280

1C..CA60..5F..SE

 1
22100-64030

1C..CA6#..5F..(DLX,SG)

COLD SPEC

 1
Common parts
90119-10033
90179-06070
90179-08022
90467-13001
91111-50620
91651-60820
Linked diagrams
8717
