AA63-AEMQF (1983)

Toyota Carina Fr

Production May 1983 - Jul 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

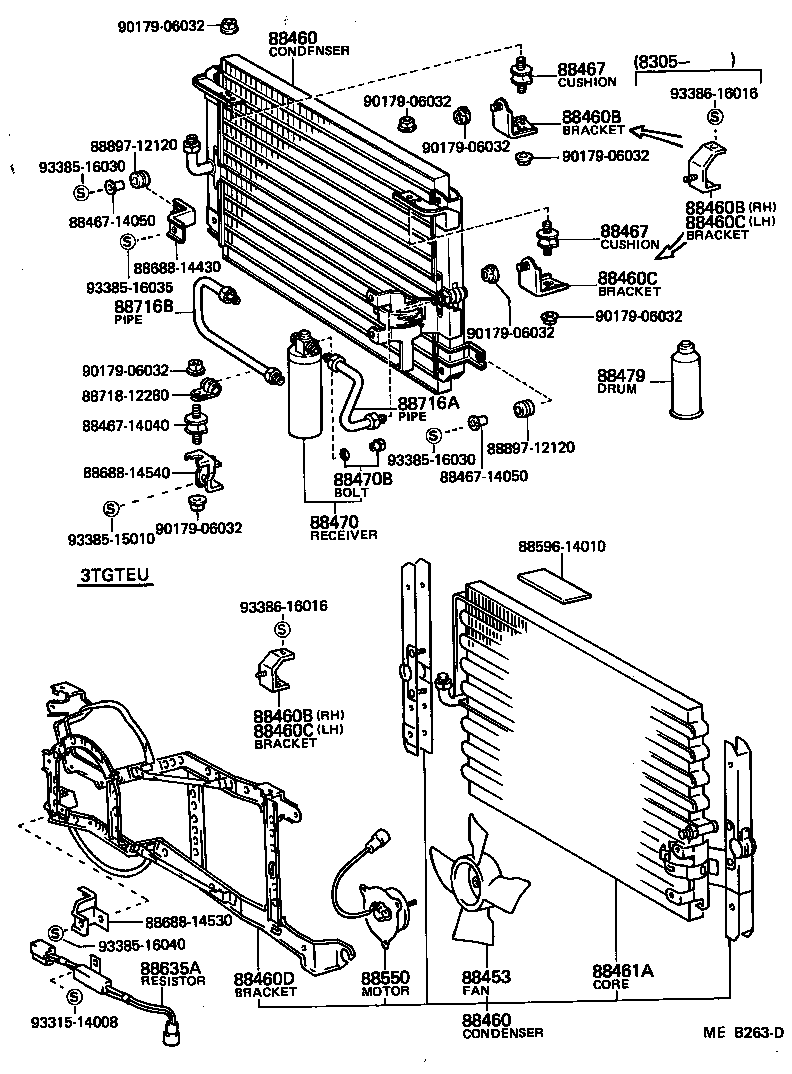

ILLUST NO. 1 OF 2(8109-8804)

Click highlighted areas on diagram

diagram 88453 88460 88460 88460B 88460B 88460B 88460C 88460C 88460C 88460D 88461A 88467 88467 8846714040 8846714050 8846714050 88470 88470B 88479 88550 8859614010 88635A 8868814430 8868814530 8868814540 88716A 88716B 8871812280 8889712120 8889712120 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9331514008 9338515010 9338516030 9338516030 9338516035 9338516040 9338616016 9338616016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-14210

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88460 - CONDENSER ASSY, COOLER
88460-14210

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88470-14010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
88470B - BOLT, FUSE
90099-04579

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

AA6#,CA6#,KA67,RA63,SA60,TA6#

400G

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-14730

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
Common parts
88467-14040
88467-14050
88596-14010
88688-14430
88688-14530
88688-14540
88718-12280
88897-12120
90179-06032
93315-14008
93385-15010
93385-16030
93385-16035
93385-16040
93386-16016

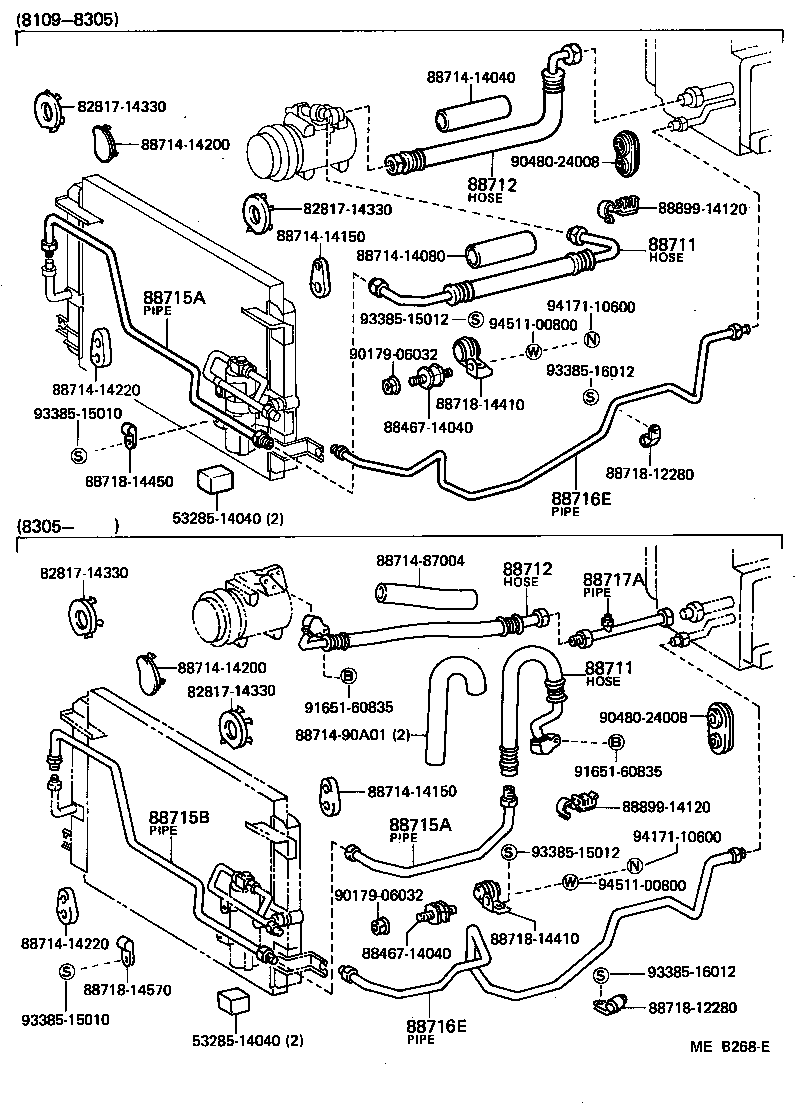

ILLUST NO. 2 OF 2(8109-8712)AA6#

Click highlighted areas on diagram

diagram 5328514040 5328514040 8281714330 8281714330 8281714330 8281714330 8846714040 8846714040 88711 88711 88712 88712 8871414040 8871414080 8871414150 8871414150 8871414200 8871414200 8871414220 8871414220 8871487004 8871490A01 88715A 88715A 88715B 88716E 88716E 88717A 8871812280 8871812280 8871814410 8871814410 8871814450 8871814570 8889914120 8889914120 9017906032 9017906032 9048024008 9048024008 9165160835 9165160835 9338515010 9338515010 9338515012 9338515012 9338516012 9338516012 9417110600 9417110600 9451100800 9451100800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14560

AA63

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-14560

AA63

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14870

AA63

 1
88712-14750

TA61,63..GT,SE,ST

W/*AAC

 1
88712-14910

AA63

W/POWER STEERING

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14870

AA63

 1
88712-14750

TA61,63..GT,SE,ST

W/*AAC

 1
88712-14910

AA63

W/POWER STEERING

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-14760

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-14240

CA60,RA63,SA60,TA61,63..GT,SE,SG,ST

W/*AAC

 1
88717-14260

AA63

W/POWER STEERING

 1
Common parts
53285-14040
82817-14330
88467-14040
88714-14040
88714-14080
88714-14150
88714-14200
88714-14220
88714-87004
88714-90A01
88718-12280
88718-14410
88718-14450
88718-14570
88899-14120
90179-06032
90480-24008
91651-60835
93385-15010
93385-15012
93385-16012
94171-10600
94511-00800
