AA63-AEMQF (1983)

Toyota Carina Fr

Production May 1983 - Jul 1985
Engine 4AGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8507)4AGEU

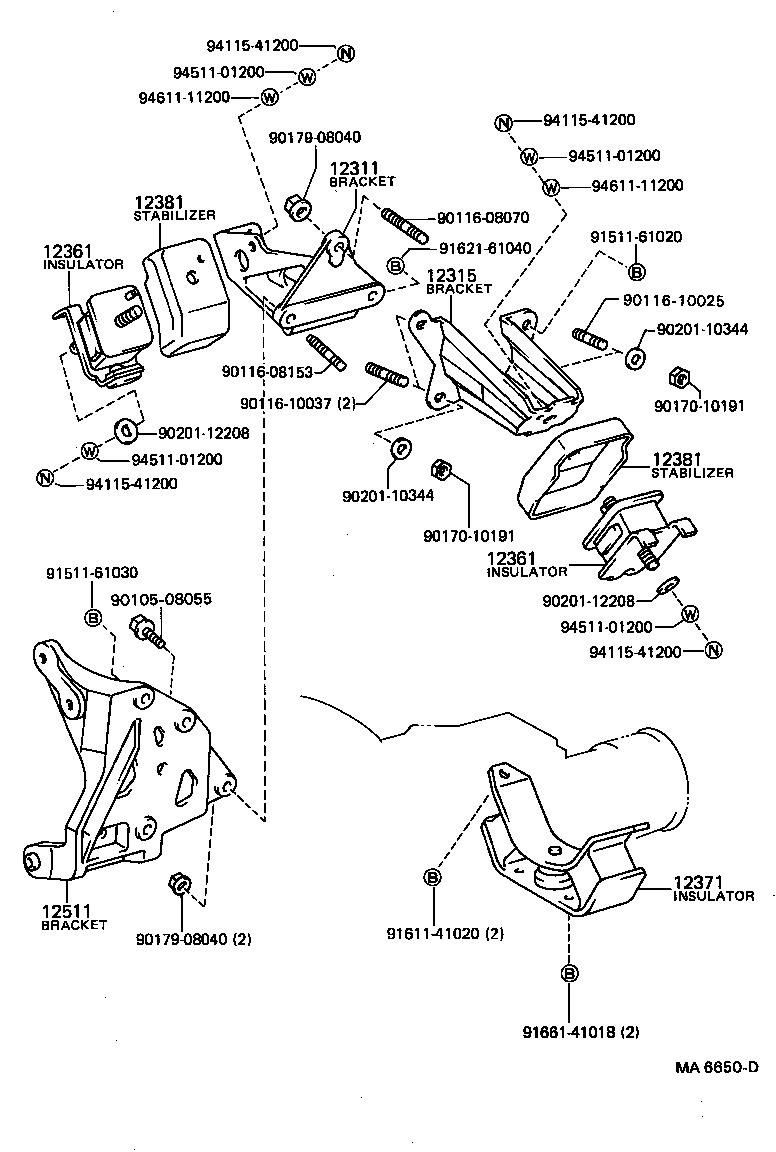

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9010508055 9011608070 9011608153 9011610025 9011610037 9017010191 9017010191 9017908040 9017908040 9020110344 9020110344 9020112208 9020112208 9151161020 9151161030 9161141020 9162161040 9166141018 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200 9461111200 9461111200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-15090

4AGEU..AA63

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-15060

4AGEU..AA63

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-16010

4AGEU..AA63

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-16010

4AGEU..AA63

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

3AU,4AGEU..AA6#..MTM

 1
12371-33010

3AU,4AGEU..AA6#..MTM

 1
12371-16030

4AGEU..AA63

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-15040

4AGEU..AA63

 2
12381-16010

4AGEU..AA63

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-15040

4AGEU..AA63

 2
12381-16010

4AGEU..AA63

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-16011

4AGEU..AA63

 1
12511-16010

4AGEU..AA63

 1
Common parts
90105-08055
90116-08070
90116-08153
90116-10025
90116-10037
90170-10191
90179-08040
90201-10344
90201-12208
91511-61020
91511-61030
91611-41020
91621-61040
91661-41018
94115-41200
94511-01200
94611-11200
