AA60-AEMSS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1984
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )AA60,CA6#,KA67,SA60,TA67

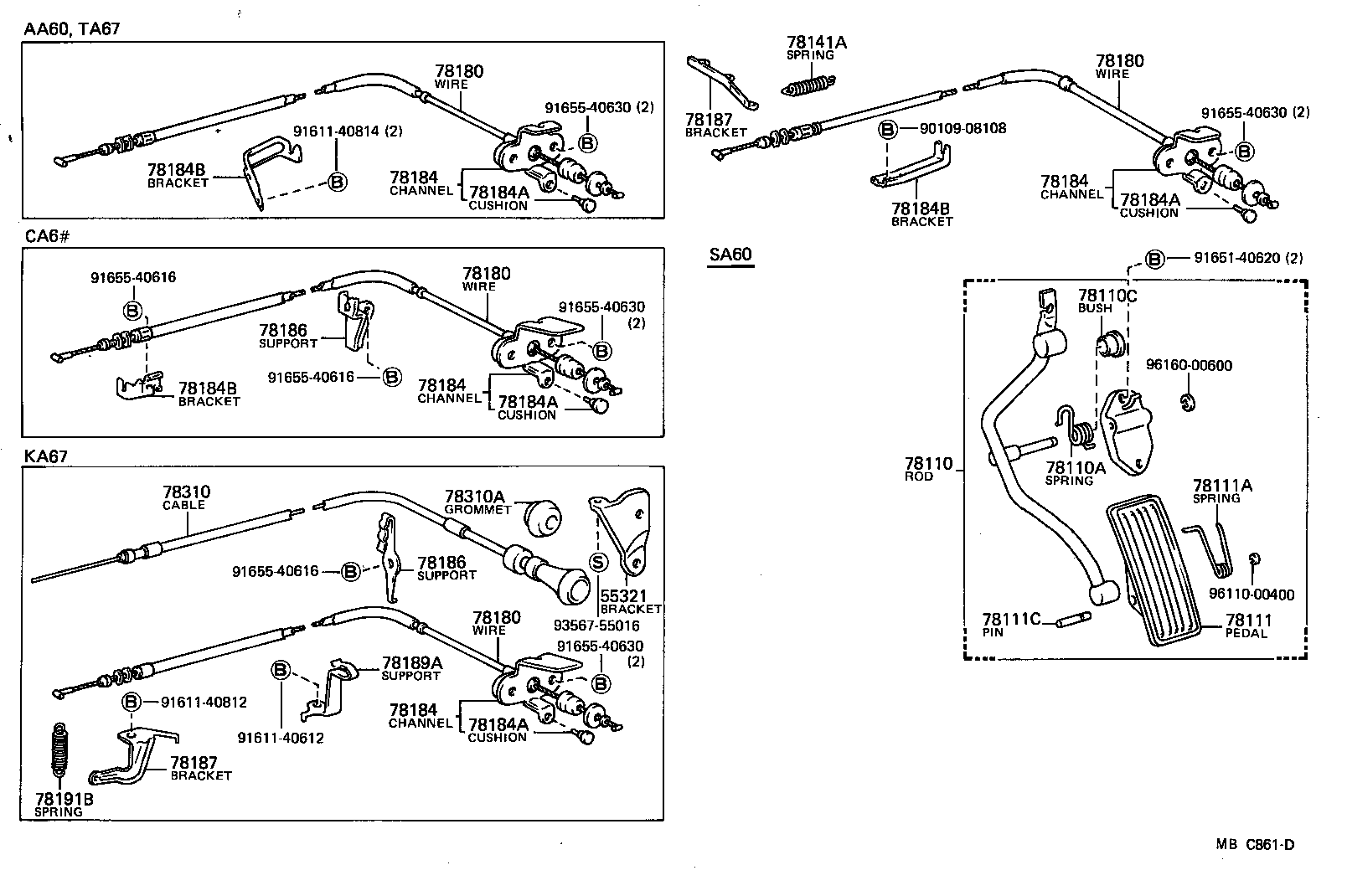

Click highlighted areas on diagram

diagram 55321 78110 78110A 78110C 78111 78111A 78111C 78141A 78180 78180 78180 78180 78184 78184 78184 78184 78184A 78184A 78184A 78184A 78184B 78184B 78184B 78186 78186 78187 78187 78189A 78191B 78310 78310A 9010908108 9161140612 9161140812 9161140814 9165140620 9165540616 9165540616 9165540616 9165540630 9165540630 9165540630 9165540630 9356755016 9611000400 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-14280

AA60,TA67..MTM

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

AA60,SA60,TA67..MTM

 1
78111 - PEDAL, ACCELERATOR
78111-12100

AA60,CA6#,KA67,SA60,TA67

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23003

AA60,CA6#,KA67,SA60,TA67

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AA60,CA6#,KA67,SA60,TA67

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14310

AA60

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14310

AA60

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14310

AA60

 1
78180 - WIRE ASSY, ACCELERATOR
78180-14310

AA60

 1
Common parts
90109-08108
91611-40612
91611-40812
91611-40814
91651-40620
91655-40616
91655-40630
93567-55016
96110-00400
96160-00600
