AA60-AEMFS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )SED,V,WG

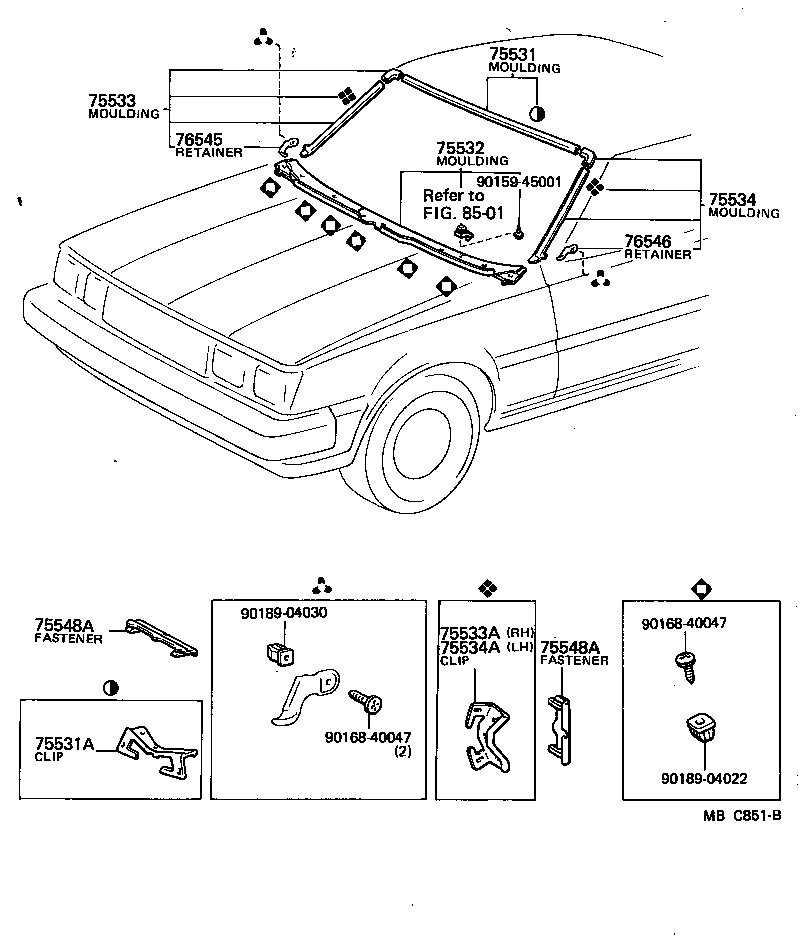

Click highlighted areas on diagram

diagram 75531 75531A 75532 75533 75533A 75534 75534A 75548A 75548A 76545 76546 8501 9015945001 9016840047 9016840047 9018904022 9018904030
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-14110

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75546-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 5
75532 - MOULDING, WINDSHIELD, LOWER
75535-14120

AA60,CA6#,SA60,TA63,67..DLX,GTT,SG,ST,STD

 1
75535-14120

AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,GTT,SG,ST,STD

 1
75535-14121

AA60..SED..SE

 1
75535-14140

AA60,CA60,RA63,SA60,TA61,63..GT,SE

 1
75535-14120

AA60..SED..SE

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-14120

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
75533A - CLIP, WINDSHIELD SIDE MOULDING, RH
75546-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 2
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-14090

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
75534A - CLIP, WINDSHIELD SIDE MOULDING, LH
75546-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 2
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 12
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 12
76545 - RETAINER, WINDSHIELD MOULDING, RH
76545-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
76546 - RETAINER, WINDSHIELD MOULDING, LH
76546-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V,WG

 1
Common parts
90159-45001
90168-40047
90189-04022
90189-04030
Linked diagrams
8501
