AA60-AEMFS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

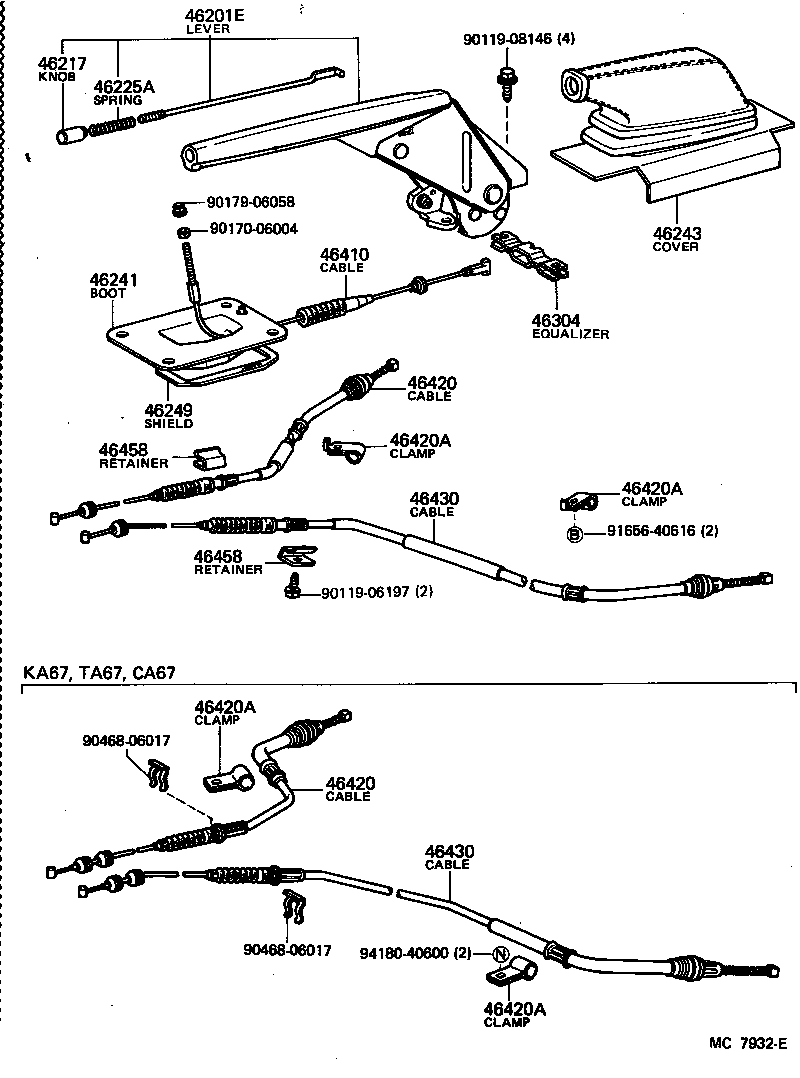

ILLUST NO. 1 OF 2(8109- )

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46249 46304 46410 46420 46420 46420A 46420A 46420A 46420A 46430 46430 46458 46458 9011906197 9011908146 9017006004 9017906058 9046806017 9046806017 9165640616 9418040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-1413014

AA60,SA60..DLX,SG

BLUE,BLUE,TRIM8#

 1
46201-1411004

AA60,CA60,SA60..DLX,SG

BLUE,BLUE,TRIM8#

 1
46201-2401001

AA6#,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,ST)

BLACK,BLACK,TRIM2#

 1
46201-1411001

AA60,CA6#,SA60,TA67..DLX,SG,STD

BLACK,BLACK,TRIM2#

 1
46201-1411006

AA60,CA6#,SA60,TA67..DLX,SG

DARK BROWN,BROWN,TRIM4#

 1
46201-1413004

AA60,CA60,SA60..DLX,SG

BLUE,BLUE,TRIM8#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002014

AA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
46217-1002001

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

BLACK,BLACK,TRIM2#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-12010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-24010

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-14170

AA60,CA60,SA60

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-14170

AA60,CA60,SA60

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-12121

AA60,CA60,SA60

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-12121

AA60,CA60,SA60

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-12121

AA60,CA60,SA60

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-12121

AA60,CA60,SA60

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-14210

AA60,CA60,SA60

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-14210

AA60,CA60,SA60

 1
46458 - RETAINER, CABLE
46458-20020

AA6#,CA60,RA63,SA60,TA61,63

 2
46458 - RETAINER, CABLE
46458-20020

AA6#,CA60,RA63,SA60,TA61,63

 2
Common parts
90119-06197
90119-08146
90170-06004
90179-06058
90468-06017
91656-40616
94180-40600
