AA60-AEMFS (1981)
Toyota Carina Fr
(8109- )CA60,SA60 ; (8109- )AA6#,CA67,RA63,TA63..MTM..DLX,GT,SE,SG,ST,STD ; (
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

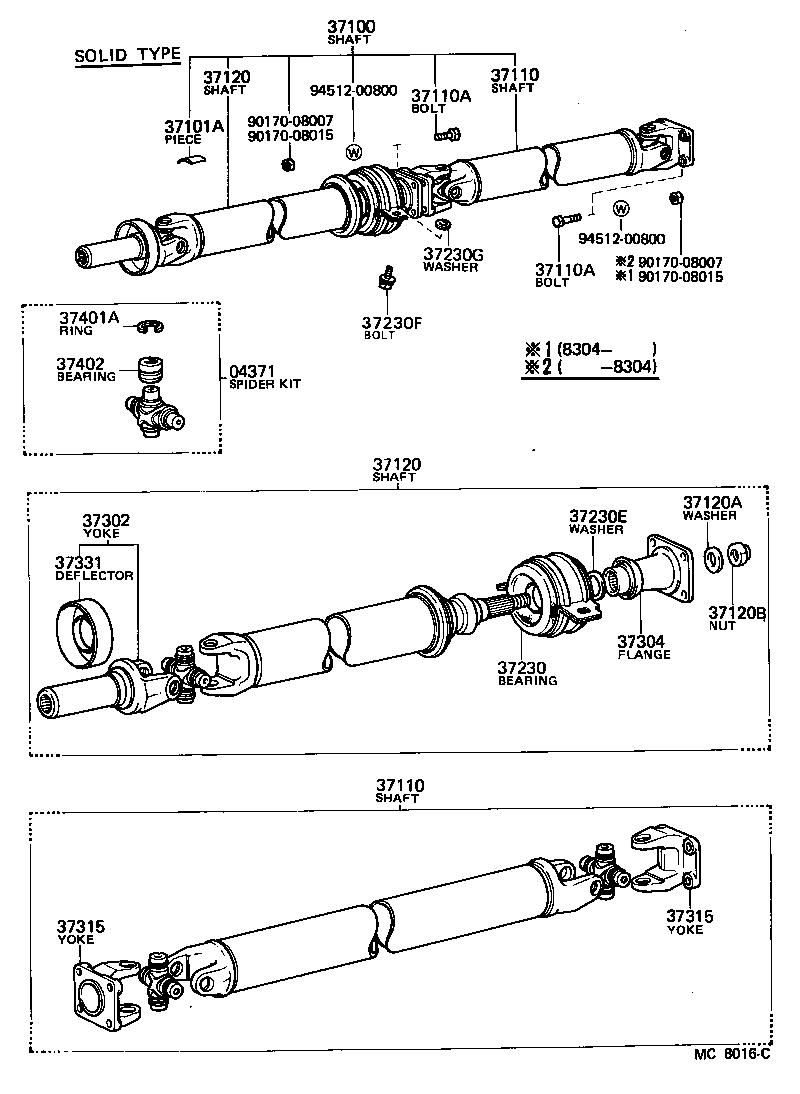

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-14200 |
AA60,SA60..MTM |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 20G,長さ=41.4,20G |
2 | ||
| 90937-01155 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 22G,長さ=45.6,22G |
2 | ||
| 90937-01154 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 18G,長さ=37.3,18G |
2 | ||
| 90937-01149 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 6G,長さ=12.4,6G |
2 | ||
| 90937-01157 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 26G,長さ=53.9,26G |
2 | ||
| 90937-01156 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 24G,長さ=49.7,24G |
2 | ||
| 90937-01140 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 30G,長さ=62.2,30G |
2 | ||
| 90937-01148 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 4G,厚さ=2.0,4G |
2 | ||
| 90937-01132 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 10G,長さ=20.7,10G |
2 | ||
| 90937-01150 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 8G,長さ=16.6,8G |
2 | ||
| 90937-01151 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 12G,長さ=24.9,12G |
2 | ||
| 90937-01147 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 2G,厚さ=2.0,2G |
2 | ||
| 90937-01153 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 16G,長さ=33.2,16G |
2 | ||
| 90937-01152 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 14G,長さ=29.0,14G |
2 | ||
| 90937-01158 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 28G,長さ=58.1,28G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22035 |
AA60,SA60 SOLID TYPE |
1 | ||
| 37110-14140 |
AA60,CA6#,SA60 SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22035 |
AA60,SA60 SOLID TYPE |
1 | ||
| 37110-14140 |
AA60,CA6#,SA60 SHELL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AA60,CA6#,RA63,SA60,TA6# |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AA60,CA6#,RA63,SA60,TA6# |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14190 |
AA60,SA60..MTM SOLID TYPE |
1 | ||
| 37120-14120 |
AA6#,SA60..MTM SHELL TYPE |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14190 |
AA60,SA60..MTM SOLID TYPE |
1 | ||
| 37120-14120 |
AA6#,SA60..MTM SHELL TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AA6#,CA6#,RA63,SA60,TA61,63 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AA6#,CA6#,RA63,SA60,TA61,63 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
AA6#,CA6#,RA63,SA60,TA61 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AA6#,CA6#,RA63,SA60,TA6# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10017 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=9.0,T=9.0 |
2 | ||
| 90201-10010 |
AA6#,CA6#,RA63,SA60,TA61,63 厚さ=12.0,T=12.0 |
2 | ||
| 90201-10008 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=4.5,T=4.5 |
2 | ||
| 90201-10033 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=6.5,T=6.5 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
AA6#,CA6#,RA63,SA60,TA61,63 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
AA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
(8109- )SA60 ; (8109- )AA60..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-22010 |
AA60,KA67,SA60,TA67 |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-14200 |
AA60,SA60..MTM |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 20G,長さ=41.4,20G |
2 | ||
| 90937-01155 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 22G,長さ=45.6,22G |
2 | ||
| 90937-01154 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 18G,長さ=37.3,18G |
2 | ||
| 90937-01149 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 6G,長さ=12.4,6G |
2 | ||
| 90937-01157 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 26G,長さ=53.9,26G |
2 | ||
| 90937-01156 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 24G,長さ=49.7,24G |
2 | ||
| 90937-01140 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 30G,長さ=62.2,30G |
2 | ||
| 90937-01148 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 4G,厚さ=2.0,4G |
2 | ||
| 90937-01132 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 10G,長さ=20.7,10G |
2 | ||
| 90937-01150 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 8G,長さ=16.6,8G |
2 | ||
| 90937-01151 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 12G,長さ=24.9,12G |
2 | ||
| 90937-01147 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 2G,厚さ=2.0,2G |
2 | ||
| 90937-01153 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 16G,長さ=33.2,16G |
2 | ||
| 90937-01152 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 14G,長さ=29.0,14G |
2 | ||
| 90937-01158 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 28G,長さ=58.1,28G |
2 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22035 |
AA60,SA60 SOLID TYPE |
1 | ||
| 37110-14140 |
AA60,CA6#,SA60 SHELL TYPE |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22035 |
AA60,SA60 SOLID TYPE |
1 | ||
| 37110-14140 |
AA60,CA6#,SA60 SHELL TYPE |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AA60,CA6#,RA63,SA60,TA6# |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08062 |
AA60,CA6#,RA63,SA60,TA6# |
8 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14190 |
AA60,SA60..MTM SOLID TYPE |
1 | ||
| 37120-14120 |
AA6#,SA60..MTM SHELL TYPE |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-14190 |
AA60,SA60..MTM SOLID TYPE |
1 | ||
| 37120-14120 |
AA6#,SA60..MTM SHELL TYPE |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AA6#,CA6#,RA63,SA60,TA61,63 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AA6#,CA6#,RA63,SA60,TA61,63 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-24010 |
AA6#,CA6#,RA63,SA60,TA61 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
AA6#,CA6#,RA63,SA60,TA6# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10017 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=9.0,T=9.0 |
2 | ||
| 90201-10010 |
AA6#,CA6#,RA63,SA60,TA61,63 厚さ=12.0,T=12.0 |
2 | ||
| 90201-10008 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=4.5,T=4.5 |
2 | ||
| 90201-10033 |
AA6#,CA6#,RA63,SA60,TA61 厚さ=6.5,T=6.5 |
2 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-14030 |
AA60,KA67,SA60,TA67..MTM |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
AA6#,CA6#,RA63,SA60,TA61,63 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
AA60,KA67,SA60,TA67 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-20020 |
AA60,KA67,SA60,TA67 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
AA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD) |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-29072 |
AA60,KA67,SA60,TA67 厚さ=2.475−2.525,T=2.475-2.525 |
8 | ||
| 90521-29071 |
AA60,KA67,SA60,TA67 厚さ=2.425−2.475,T=2.425-2.475 |
8 | ||
| 90521-29070 |
AA60,KA67,SA60,TA67 厚さ=2.375−2.425,T=2.375-2.425 |
8 | ||
| 90521-29073 |
AA60,KA67,SA60,TA67 厚さ=2.525−2.575,T=2.525-2.575 |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-22020 |
AA60,KA67,SA60,TA67 |
8 | ||
| Common parts | ||||
| 90170-08007 | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
