AA60-AEKFS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

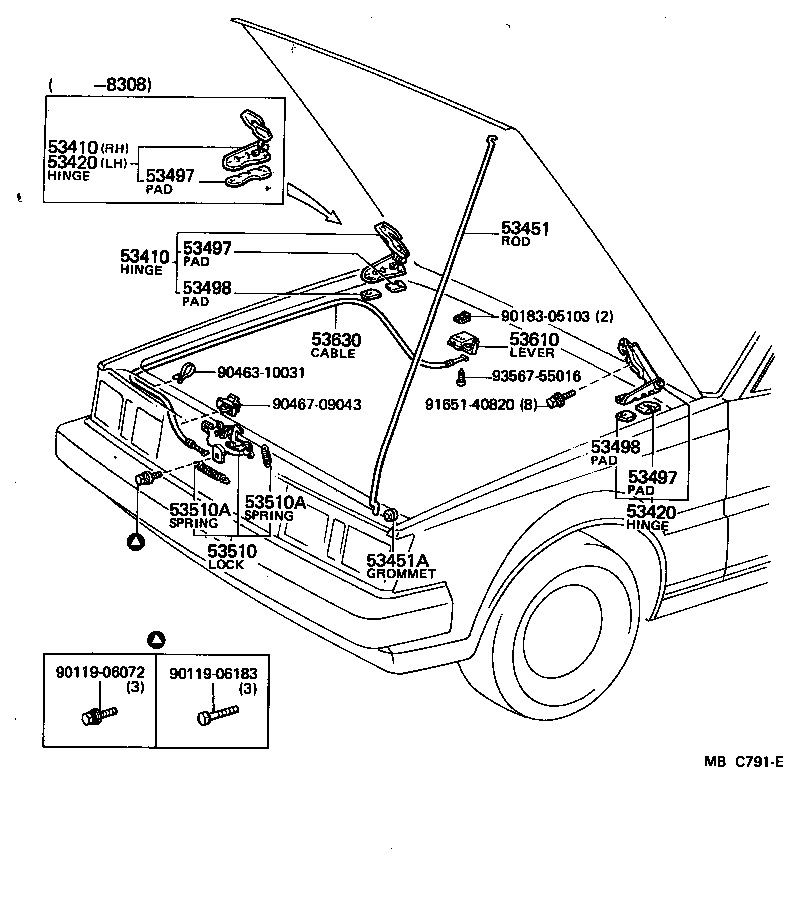

Click highlighted areas on diagram

diagram 53410 53410 53420 53420 53451 53451A 53497 53497 53497 53498 53498 53510 53510A 53510A 53610 53630 9011906072 9011906183 9018305103 9046310031 9046709043 9165140820 9356755016
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53410 - HINGE ASSY, HOOD, RH
53410-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53451 - ROD, HOOD SUPPORT
53451-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

AA60,RA63,SA60,TA6#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AA6#,CA6#,RA63,SA60,TA6#

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AA6#,CA6#,RA63,SA60,TA6#

T=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-14010

AA6#,CA6#,RA63,SA60,TA6#

T=1.0

 2
53510 - LOCK ASSY, HOOD
53510-14140

AA60,CA6#,RA63,SA60,TA6#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AA6#,CA6#,KA67,RA63,SA60,TA6#

線径=2.0,ｺｲﾙ巻数=17,WD=2.0,L=60

 1
90506-09008

AA60,CA6#,RA63,SA60,TA6#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,L=35

 2
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-20008

AA6#,CA6#,KA67,RA63,SA60,TA6#

線径=2.0,ｺｲﾙ巻数=17,WD=2.0,L=60

 1
90506-09008

AA60,CA6#,RA63,SA60,TA6#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9,L=35

 2
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1401004

AA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST

BLUE,BLUE,TRIM8#

 1
53601-1401001

AA6#,CA6#,KA67,RA63,SA60,TA6#..CP,SED,V

BLACK,BLACK,TRIM2#

 1
53601-1401006

AA6#,CA6#,KA67,RA63,SA60,TA6#..DLX,GT,SE,SG,ST

DARK BROWN,BROWN,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-14230

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
Common parts
90119-06072
90119-06183
90183-05103
90463-10031
90467-09043
91651-40820
93567-55016
