AA60-AEKFS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )SED

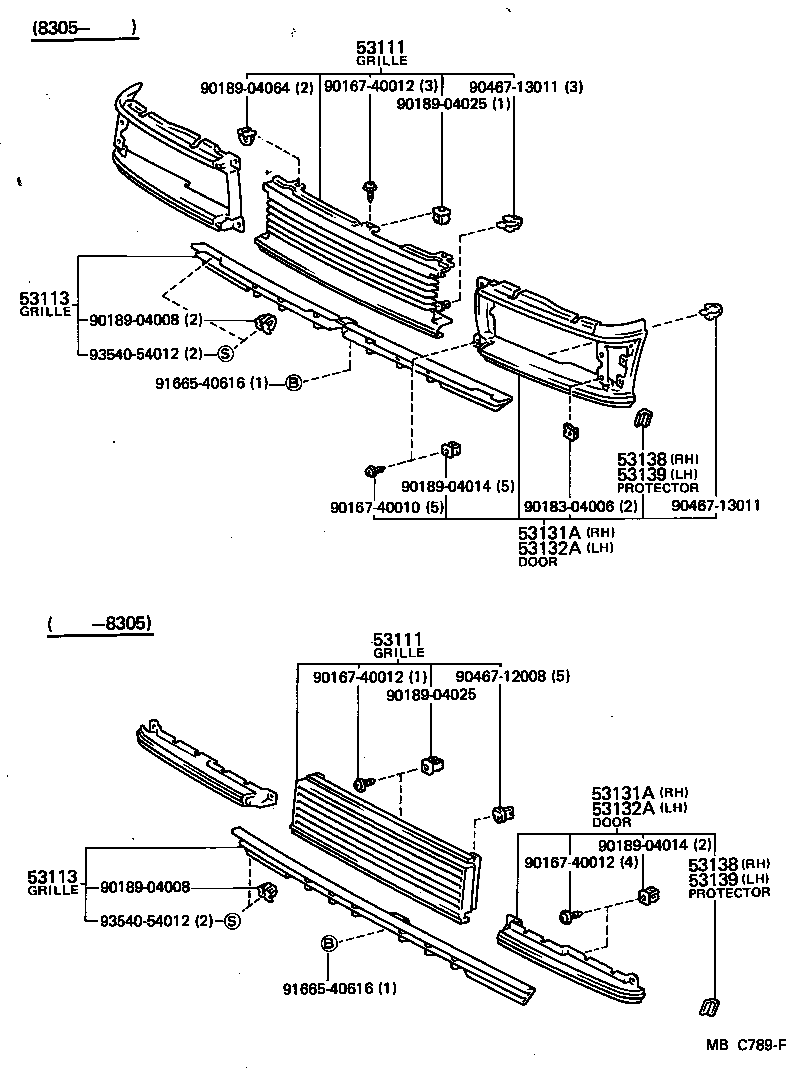

Click highlighted areas on diagram

diagram 53111 53111 53113 53113 53131A 53131A 53132A 53132A 53138 53138 53139 53139 9016740010 9016740012 9016740012 9016740012 9018304006 9018904008 9018904008 9018904014 9018904014 9018904025 9018904025 9018904064 9046712008 9046713011 9046713011 9166540616 9166540616 9354054012 9354054012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-19395

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53111-19535

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53111 - GRILLE, RADIATOR
53111-19395

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53111-19535

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53113 - GRILLE, RADIATOR, LH OR LOWER
53112-14040

AA6#,CA60,RA63,SA60,TA61,63

 1
53113 - GRILLE, RADIATOR, LH OR LOWER
53112-14040

AA6#,CA60,RA63,SA60,TA61,63

 1
53131A - DOOR, HEADLAMP, RH
53131-19505

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53131-19575

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53131A - DOOR, HEADLAMP, RH
53131-19505

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53131-19575

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53132A - DOOR, HEADLAMP, LH
53132-19575

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53132-19505

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53132A - DOOR, HEADLAMP, LH
53132-19575

AA6#,CA60,SA60,TA63..SED..(GT,GTT,SE,SG,ST)

 1
53132-19505

AA60,CA60,SA60..SED..(DLX,SE,SG)

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-14080

AA6#,CA60,SA60,TA63..SED

 1
53139-14090

AA60,CA6#,RA63,SA60,TA6#..SED,V

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53138-14080

AA6#,CA60,SA60,TA63..SED

 1
53139-14090

AA60,CA6#,RA63,SA60,TA6#..SED,V

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-14090

AA60,CA6#,RA63,SA60,TA6#..SED,V

 1
53139-14120

AA6#,CA60,SA60,TA63..SED

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-14090

AA60,CA6#,RA63,SA60,TA6#..SED,V

 1
53139-14120

AA6#,CA60,SA60,TA63..SED

 1
Common parts
90167-40010
90167-40012
90183-04006
90189-04008
90189-04014
90189-04025
90189-04064
90467-12008
90467-13011
91665-40616
93540-54012
