AA60-AEKFS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

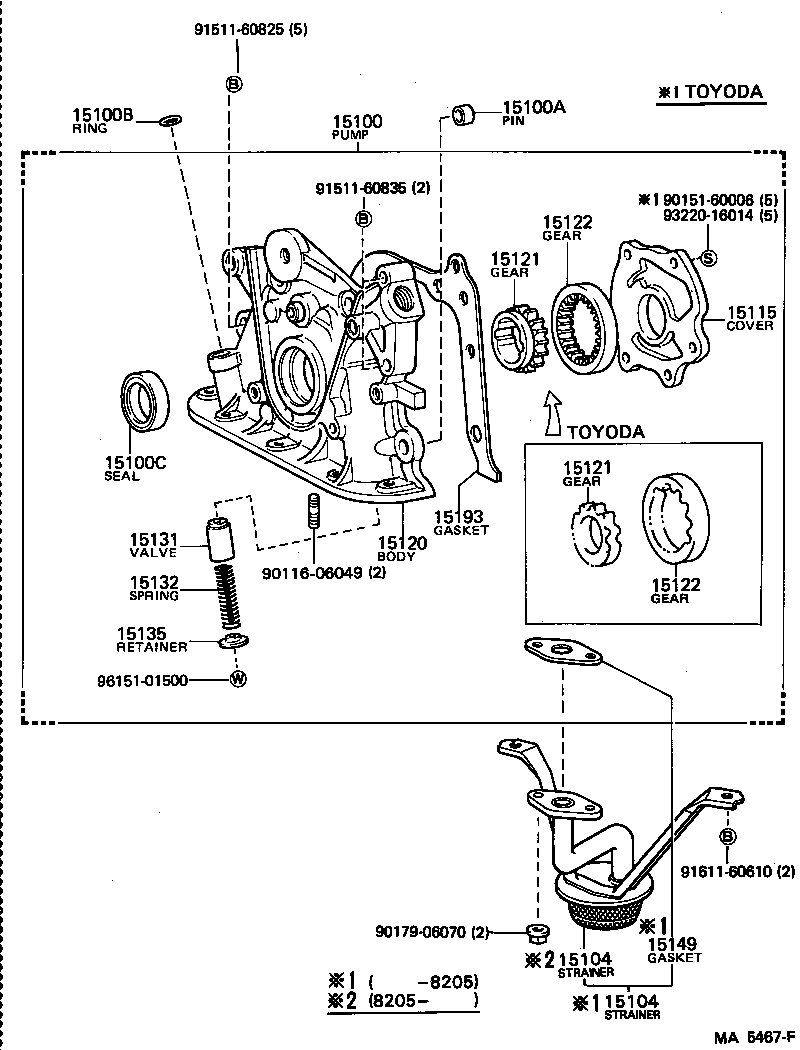

(8109-8511)3AU

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15104 15104 15115 15120 15121 15121 15122 15122 15131 15132 15135 15149 15193 9011606049 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

3AU..AA60

 1
15100-19015

3AU..AA60

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

3AU,4AGEU..AA6#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

3AU,4AGEU..AA6#

 1
96710-01010

3AU..AA60

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

3AU,4AGEU..AA6#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-19025

3AU..AA60

 1
15104-15080

3AU,4AGEU..AA6#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-19025

3AU..AA60

 1
15104-15080

3AU,4AGEU..AA6#

 1
15115 - COVER, OIL PUMP
15115-15010

3AU..AA60

AISIN

 1
15115-15020

3AU..AA60

AISIN

 1
15115-15030

3AU..AA60

TOYODA

 1
15120 - BODY SUB-ASSY, OIL PUMP
15101-15030

3AU..AA60

TOYODA

 1
15101-15020

3AU..AA60

AISIN

 1
15120-15011

3AU..AA60

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

3AU..AA60

AISIN

 1
15121-15030

3AU..AA60

TOYODA

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

3AU..AA60

AISIN

 1
15121-15030

3AU..AA60

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

3AU..AA60

AISIN

 1
15122-15030

3AU..AA60

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

3AU..AA60

AISIN

 1
15122-15030

3AU..AA60

TOYODA

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3AU,4AGEU..AA6#

AISIN

 1
15131-15030

3AU..AA60

TOYODA

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-15030

3AU..AA60

TOYODA

 1
15132-40010

3AU,4AGEU..AA6#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15030

3AU..AA60

TOYODA

 1
15135-15010

3AU,4AGEU..AA6#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

3AU,4AGEU..AA6#

 1
15193 - GASKET, OIL PUMP
15197-15011

3AU,4AGEU..AA6#

 1
Common parts
90116-06049
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500

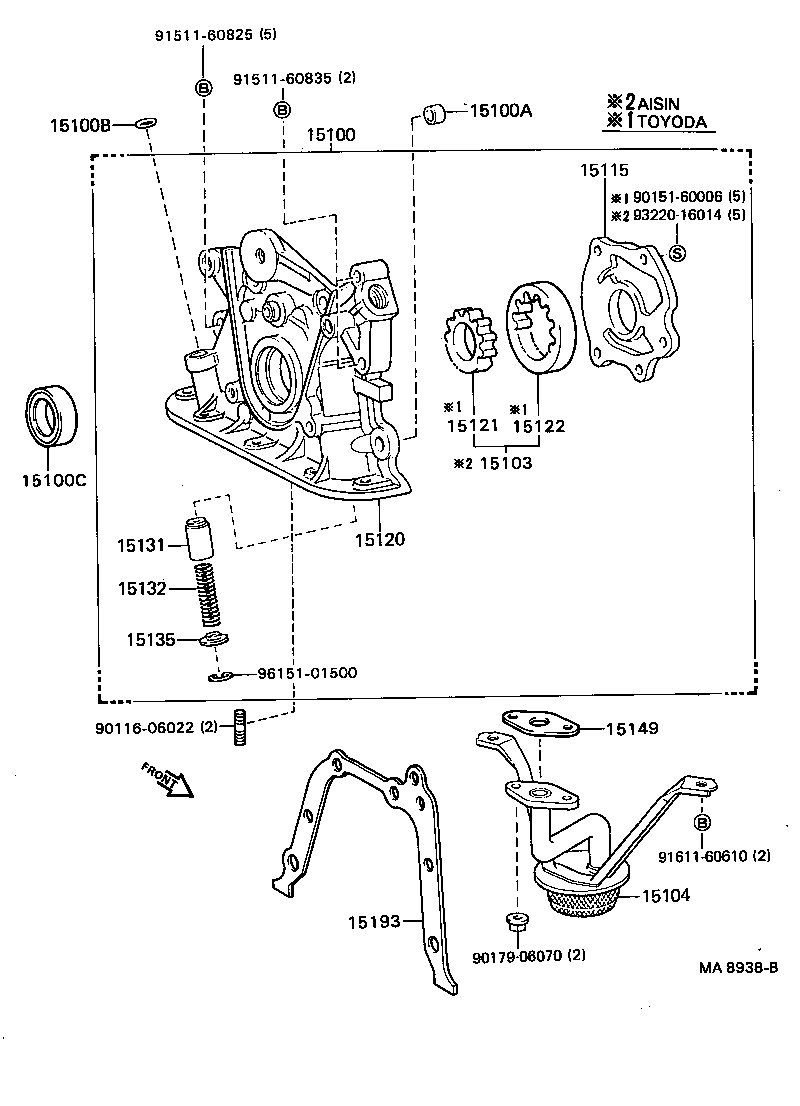

(8511- )3AU

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15103 15104 15115 15120 15121 15122 15131 15132 15135 15149 15193 9011606022 9015160006 9017906070 9151160825 9151160835 9161160610 9322016014 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-15020

3AU..AA60

 1
15100-19015

3AU..AA60

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

3AU,4AGEU..AA6#

 2
15100B - RING, O(FOR OIL PUMP)
96711-19010

3AU,4AGEU..AA6#

 1
96710-01010

3AU..AA60

 1
15100C - SEAL(FOR OIL PUMP)
90311-32001

3AU,4AGEU..AA6#

 1
15103 - GEAR SET, OIL PUMP
15103-15020

3AU..AA60

AISIN

 1
15104 - STRAINER SUB-ASSY, OIL
15104-15080

3AU,4AGEU..AA6#

 1
15104-19025

3AU..AA60

 1
15115 - COVER, OIL PUMP
15115-15010

3AU..AA60

AISIN

 1
15115-15020

3AU..AA60

AISIN

 1
15115-15030

3AU..AA60

TOYODA

 1
15120 - BODY SUB-ASSY, OIL PUMP
15101-15030

3AU..AA60

TOYODA

 1
15101-15020

3AU..AA60

AISIN

 1
15120-15011

3AU..AA60

AISIN

 1
15121 - GEAR, OIL PUMP DRIVE
15121-15010

3AU..AA60

AISIN

 1
15121-15030

3AU..AA60

TOYODA

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-15010

3AU..AA60

AISIN

 1
15122-15030

3AU..AA60

TOYODA

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3AU,4AGEU..AA6#

AISIN

 1
15131-15030

3AU..AA60

TOYODA

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-15030

3AU..AA60

TOYODA

 1
15132-40010

3AU,4AGEU..AA6#

AISIN

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15030

3AU..AA60

TOYODA

 1
15135-15010

3AU,4AGEU..AA6#

AISIN

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-15010

3AU,4AGEU..AA6#

 1
15193 - GASKET, OIL PUMP
15197-15011

3AU,4AGEU..AA6#

 1
Common parts
90116-06022
90151-60006
90179-06070
91511-60825
91511-60835
91611-60610
93220-16014
96151-01500
