AA60-AEHSS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8712)

Click highlighted areas on diagram

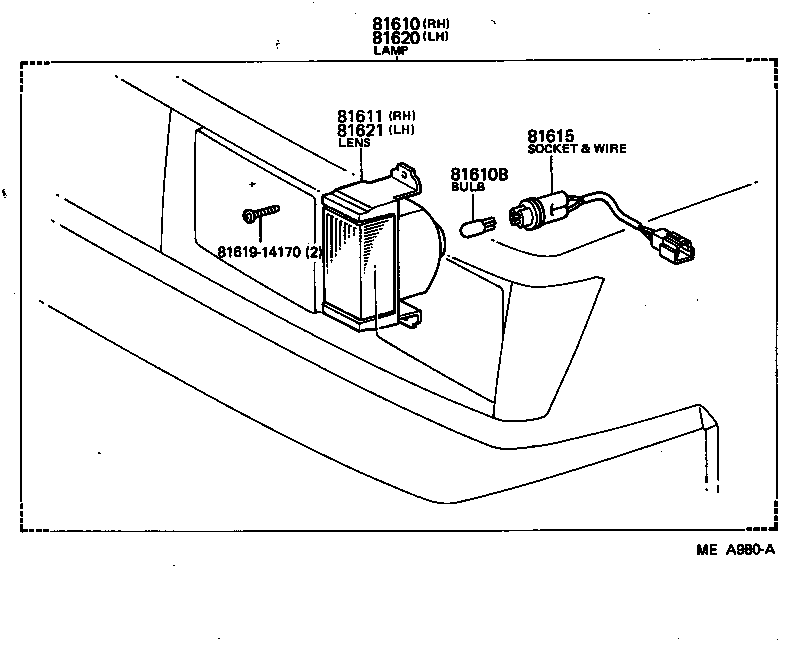

diagram 81610 81610B 81611 81615 8161914170 81620 81621
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-14170

AA6#,CA60,RA63,SA60,TA61,63..SED

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-12050

AA6#,CA60,RA63,SA60,TA61,63..SED

12V 5W,12V 5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-14170

AA6#,CA60,RA63,SA60,TA61,63..SED

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-14170

AA6#,CA60,RA63,SA60,TA61,63..SED

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-14170

AA6#,CA60,RA63,SA60,TA61,63..SED

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-14170

AA6#,CA60,RA63,SA60,TA61,63..SED

 1
Common parts
81619-14170
