AA60-AEHSS (1981)
Toyota Carina Fr
Production
Sep 1981
-
May 1983
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )AA60,CA6#,KA67,SA60,TA67

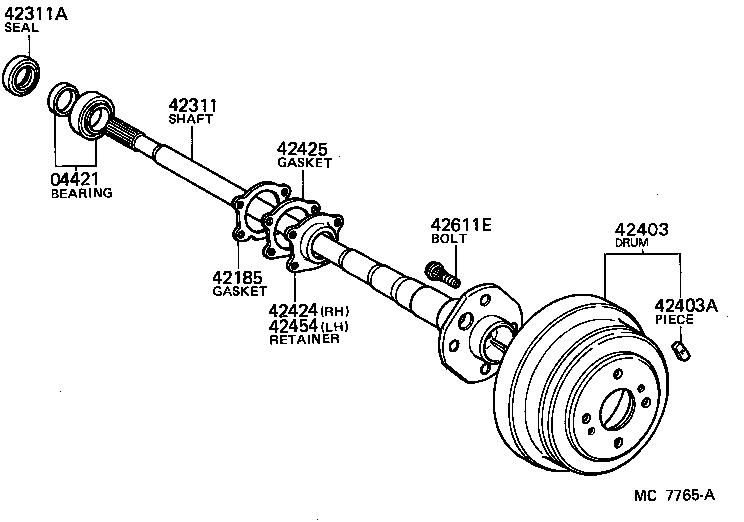

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04421 - BEARING KIT, REAR AXLE SHAFT | ||||
| 04421-30011 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-14020 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-14140 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52059 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-12060 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 20G,20G |
2 | ||
| 90937-01119 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 30G,30G |
2 | ||
| 90937-01197 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 60G,60G |
2 | ||
| 90937-01117 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 10G,10G |
2 | ||
| 90937-01195 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 40G,40G |
2 | ||
| 90937-01196 |
TA63..ST;AA60,CA6#,KA67,SA60,TA67 50G,50G |
2 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-14020 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42425 - GASKET, REAR AXLE BEARING RETAINER | ||||
| 42425-14020 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42454-14010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02035 |
AA6#,CA6#,RA63,SA60,TA6# |
8 | ||
