AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

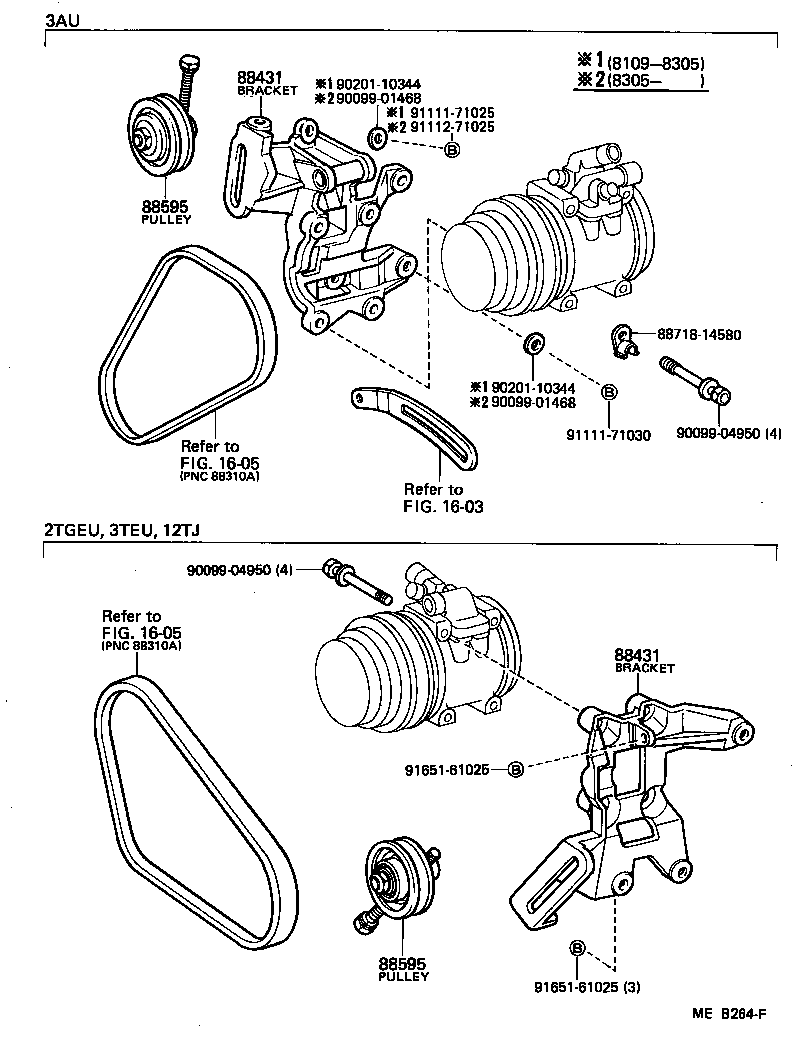

ILLUST NO. 3 OF 3(8109-8712)AA60,TA6#..DLX,GT,SE,SG,ST,STD

Click highlighted areas on diagram

diagram 1603 1605 1605 88431 88431 88595 88595 8871814580 9009901468 9009901468 9009904950 9009904950 9020110344 9020110344 9111171025 9111171030 9111271025 9165161025 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14160

AA60

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-14160

AA60

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12060

AA60

 1
88440-14060

AA60

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12060

AA60

 1
88440-14060

AA60

 1
Common parts
88718-14580
90099-01468
90099-04950
90201-10344
91111-71025
91111-71030
91112-71025
91651-61025
Linked diagrams
1603
1605

ILLUST NO. 2 OF 3(8109-8804)

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330B 88330C 88403
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

AA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14060

AA60,TA6#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12300

AA60

 1
88320-14390

AA60

 1
88330 - CLUTCH ASSY, MAGNET
88410-14110

AA60,TA6#..DLX,GT,SE,SG,ST,STD

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

AA60,TA6#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

AA60,CA6#,RA63,SA60,TA6#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040

AA60,TA6#

 1
