AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

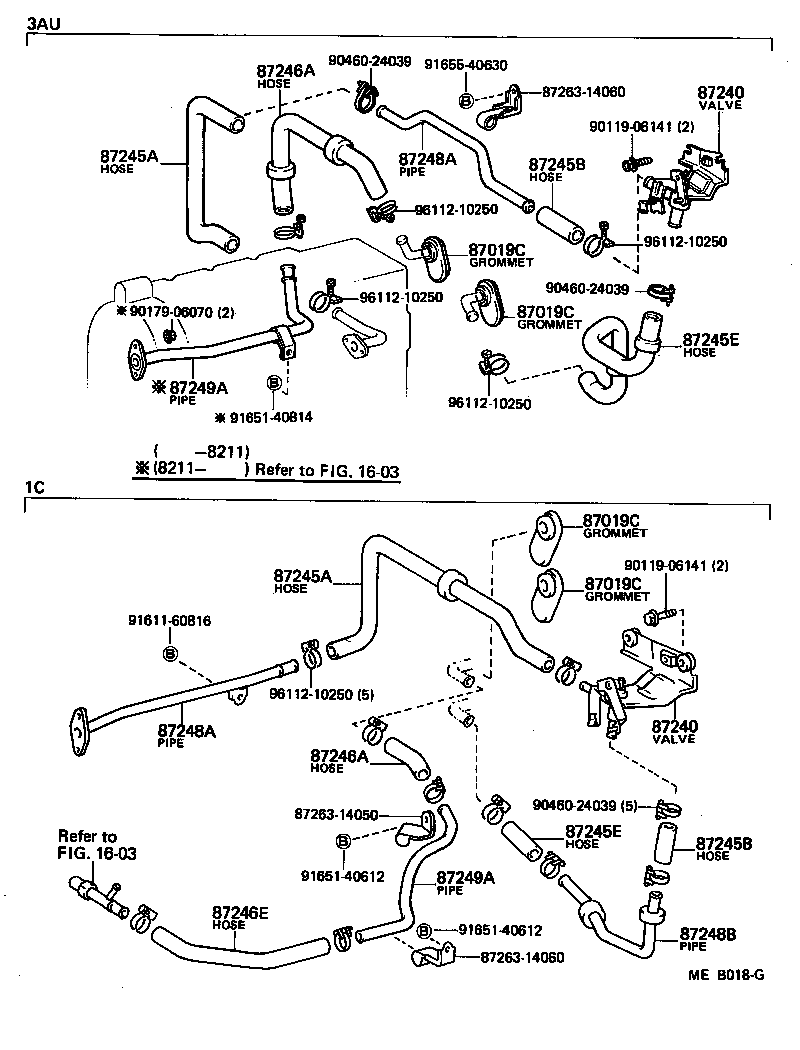

ILLUST NO. 1 OF 2(8109-8804)AA60,CA6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01015 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-1B130 |
AA6# |
1 | ||
| 87245-14820 |
AA60 |
1 | ||
| 87245-14821 |
AA60 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-1B130 |
AA6# |
1 | ||
| 87245-14820 |
AA60 |
1 | ||
| 87245-14821 |
AA60 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30100 |
AA60 *H,L=55 |
1 | ||
| 99552-30100 |
AA6# *H,L=55 |
1 | ||
| 99556-30055 |
AA6# *H,L=55 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30100 |
AA60 *H,L=55 |
1 | ||
| 99552-30100 |
AA6# *H,L=55 |
1 | ||
| 99556-30055 |
AA6# *H,L=55 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-14750 |
AA60 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-14750 |
AA60 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-14810 |
AA60 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-14810 |
AA60 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-14220 |
AA60 |
1 | ||
| 87248-14150 |
AA60 |
1 | ||
| 87248-14151 |
AA60 |
1 | ||
| 87208-14260 |
AA6# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-14220 |
AA60 |
1 | ||
| 87248-14150 |
AA60 |
1 | ||
| 87248-14151 |
AA60 |
1 | ||
| 87208-14260 |
AA6# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-16011 |
AA60 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-16011 |
AA60 |
1 | ||
| Common parts | ||||
| 87263-14050 | ||||
| 87263-14060 | ||||
| 90119-06141 | ||||
| 90179-06070 | ||||
| 90460-24039 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91655-40630 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1603 | ||||
ILLUST NO. 2 OF 2(8109-8804)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-14110 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 96112-10250 | ||||
