AA60-AEHDS (1981)
Toyota Carina Fr
ILLUST NO. 4 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12250 | ||||
| 82711-12540 | ||||
| 82711-14110 | ||||
| 82711-14230 | ||||
| 82711-14270 | ||||
| 82711-14320 | ||||
| 82711-14330 | ||||
| 82711-14340 | ||||
| 82711-14350 | ||||
| 82711-22300 | ||||
| 82711-22490 | ||||
| 82711-24010 | ||||
| 82711-24070 | ||||
| 82711-24090 | ||||
| 82711-24100 | ||||
| 82711-30070 | ||||
| 90461-06040 | ||||
| 90461-06303 | ||||
| 90461-08066 | ||||
| 90461-08175 | ||||
| 90461-08183 | ||||
| 90461-08186 | ||||
| 90461-08187 | ||||
| 90461-08202 | ||||
| 90461-08306 | ||||
ILLUST NO. 4 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14560 | ||||
| 82711-14690 | ||||
| 82711-14740 | ||||
| 82711-1A210 | ||||
| 82711-22220 | ||||
| 82711-22350 | ||||
| 82711-22670 | ||||
| 90461-06006 | ||||
| 90461-06132 | ||||
| 90461-08309 | ||||
| 90461-08312 | ||||
| 90461-08365 | ||||
| 90461-08401 | ||||
| 90461-08483 | ||||
| 90461-08514 | ||||
| 90461-08613 | ||||
| 90462-08003 | ||||
| 90463-04013 | ||||
| 90463-10012 | ||||
| 90463-10337 | ||||
| 90463-15565 | ||||
| 90464-00134 | ||||
| 90464-00137 | ||||
| 90989-01008 | ||||

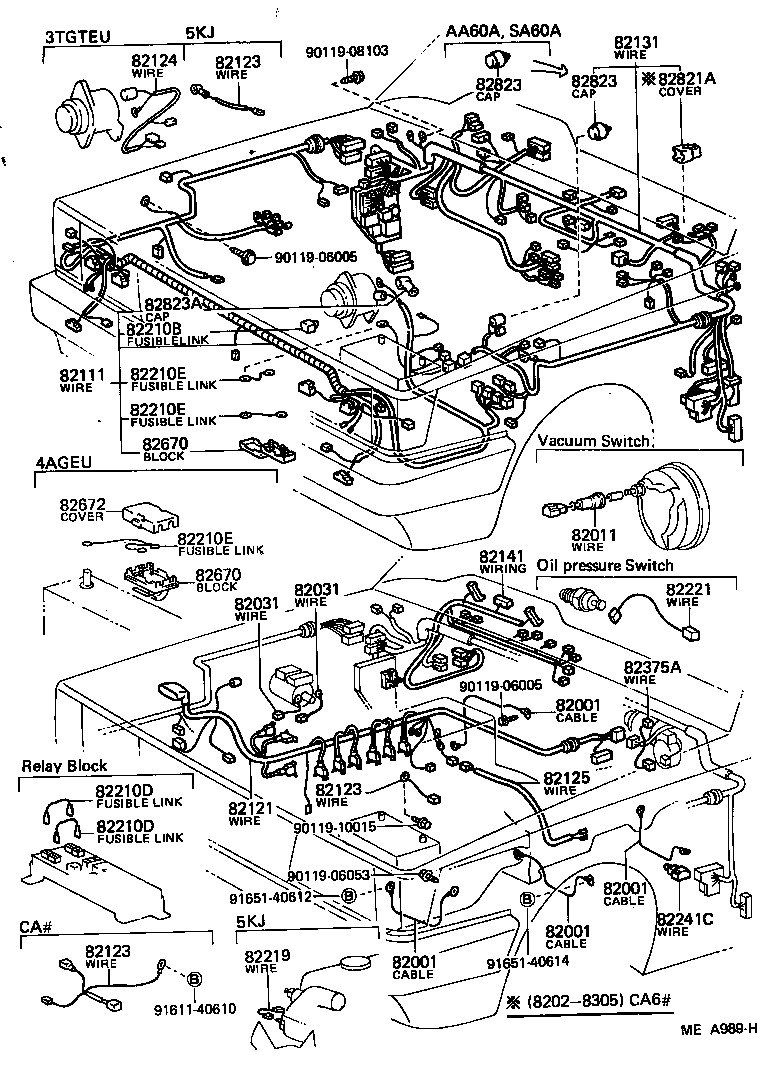

ILLUST NO. 1 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
AA60,RA63,SA60,TA6# TRANSMISSION--FLOOR |
2 | ||
| 90980-07233 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07200 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07203 |
AA60 ENGINE--SIDE MEMBER |
1 | ||
| 90980-07174 |
AA60 ENGINE--DASH PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
AA60,RA63,SA60,TA6# TRANSMISSION--FLOOR |
2 | ||
| 90980-07233 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07200 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07203 |
AA60 ENGINE--SIDE MEMBER |
1 | ||
| 90980-07174 |
AA60 ENGINE--DASH PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
AA60,RA63,SA60,TA6# TRANSMISSION--FLOOR |
2 | ||
| 90980-07233 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07200 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07203 |
AA60 ENGINE--SIDE MEMBER |
1 | ||
| 90980-07174 |
AA60 ENGINE--DASH PANEL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07148 |
AA60,RA63,SA60,TA6# TRANSMISSION--FLOOR |
2 | ||
| 90980-07233 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07200 |
AA6# ENGINE--DASH PANEL |
1 | ||
| 90980-07203 |
AA60 ENGINE--SIDE MEMBER |
1 | ||
| 90980-07174 |
AA60 ENGINE--DASH PANEL |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
AA60,RA63,TA63 (+) |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12490 |
AA60,RA63,TA63 (+) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-14011 |
AA60..SED |
1 | ||
| 82111-14320 |
AA60..SED |
1 | ||
| 82111-14640 |
AA60..SED |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-14590 |
AA60..SE ### |
1 | ||
| 82131-14011 |
AA60 |
1 | ||
| 82131-14800 |
AA60..DLX,SG,ST,STD |
1 | ||
| 82131-1B300 |
AA60..SE |
1 | ||
| 82131-1B310 |
AA60..DLX,SG,ST,STD |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-14181 |
AA60..DLX,SG,ST,STD |
1 | ||
| 82141-14320 |
AA60..SED..SE |
1 | ||
| 82141-14630 |
AA60..SED |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08125 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 1.0ｲｴﾛｰ,長さ=110,FL1.0 YELLOW |
1 | ||
| 90982-08157 |
AA6#,CA6#,KA67,RA63,SA60,TA6# FL 0.3 ﾋﾟﾝｸ,FL0.3 PINK |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08125 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 1.0ｲｴﾛｰ,長さ=110,FL1.0 YELLOW |
1 | ||
| 90982-08157 |
AA6#,CA6#,KA67,RA63,SA60,TA6# FL 0.3 ﾋﾟﾝｸ,FL0.3 PINK |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16010 |
AA60 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-30020 |
AA60,SA60 O2 SENSOR CHECK TERMINAL |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-30020 |
AA60,SA60 O2 SENSOR CHECK TERMINAL |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-22020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# ALTERNATOR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-08103 | ||||
| 90119-10015 | ||||
| 91611-40610 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||

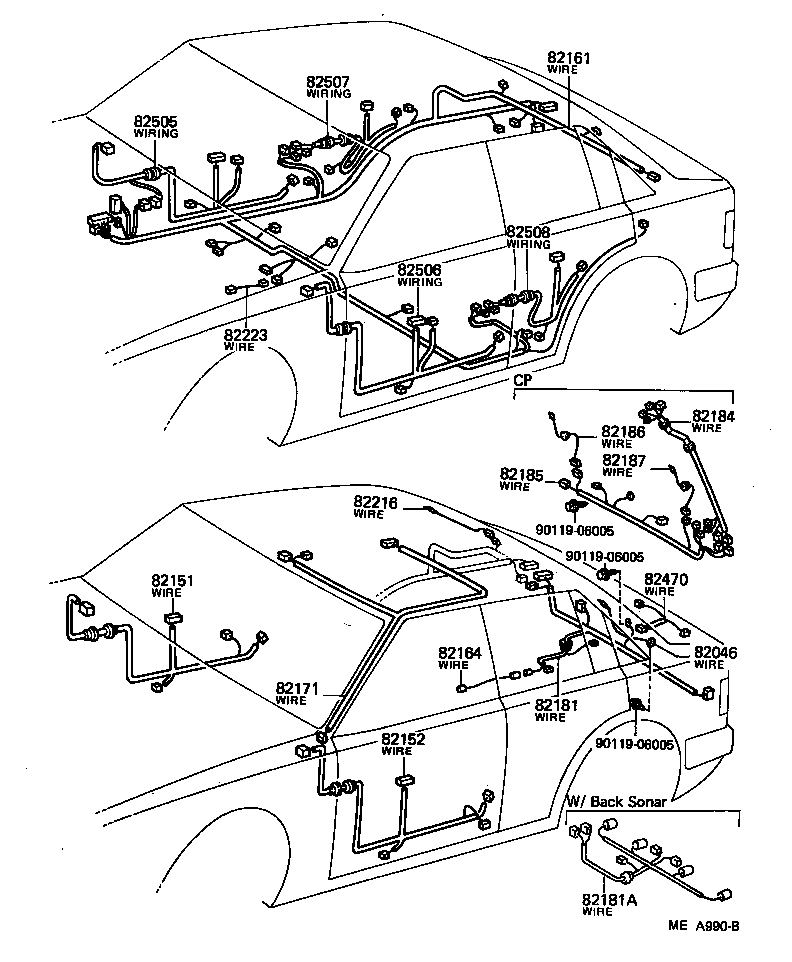

ILLUST NO. 2 OF 5(8109-8712)CP,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82187-14011 |
AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-14270 |
AA60,CA60,SA60,TA63..SED..(SE,ST) W/BACK SONAR |
1 | ||
| 82161-14011 |
AA60,CA60,SA60..SED..(DLX,SG,ST,STD) |
1 | ||
| 82161-14330 |
AA60,CA60,SA60,TA63..SED..(SE,ST) W/BACK SONAR |
1 | ||
| 82161-14191 |
AA60..SED..SE |
1 | ||
| 82161-14500 |
AA60,CA60..SED..(SE,ST) W/BACK SONAR |
1 | ||
| 82161-14440 |
AA6#,CA60,TA63..SED..(GT,GTT,SE) |
1 | ||
| 82161-14370 |
AA60,CA60,SA60..SED..(DLX,SG,ST,STD) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-14021 |
AA60,CA60,SA60..SED..SE |
1 | ||
| 82171-14011 |
AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SG,ST,STD) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-14011 |
AA60,CA60,RA63,SA60,TA61,63..SED |
1 | ||
| 82181-14012 |
AA60,CA60,SA60..SED |
1 | ||
| 82181-14320 |
AA60,CA60,SA60..SED..(SE,ST) W/BACK SONAR |
1 | ||
| 82181-14320 |
AA60,CA60,SA60..SED |
1 | ||
| 82181A - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-14010 |
AA60,CA60,SA60,TA63..SED..(SE,ST) W/BACK SONAR |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82186-14021 |
AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE) |
1 | ||
| 82470 - WIRE ASSY, LICENSE LAMP FEED | ||||
| 82470-14031 |
AA6#,CA60,RA63,SA60,TA61,63..SED |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82151-14230 |
AA60..SED..SE |
1 | ||
| 82151-14231 |
AA60..SED..SE |
1 | ||
| 82506 - WIRING SUB-ASSY, FRONT DOOR, LH | ||||
| 82152-14220 |
AA60..SED..SE |
1 | ||
| 82151-14231 |
AA60..SED..SE |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
ILLUST NO. 3 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82987-22010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82987-22010 |
AA60,CA6#,RA63,SA60,TA6#..SED,V |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22040 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22040 |
AA6#,CA6#,KA67,RA63,SA60,TA6#..SED,V |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82983-12010 | ||||
| 82983-22040 | ||||
| 82984-22010 | ||||
| 82987-22010 | ||||
| 82991-14020 | ||||
ILLUST NO. 5 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82817-10120 | ||||
| 82817-14280 | ||||
| 82817-14320 | ||||
| 82817-14330 | ||||
| 82817-14350 | ||||
| 82817-14360 | ||||
| 82817-14380 | ||||
| 82817-14410 | ||||
| 82817-14430 | ||||
| 82817-20160 | ||||
| 82817-22280 | ||||
| 82817-24010 | ||||
| 82817-24020 | ||||
| 82817-24030 | ||||
| 82817-24040 | ||||
| 82817-24070 | ||||
| 82817-24080 | ||||
| 82817-91707 | ||||

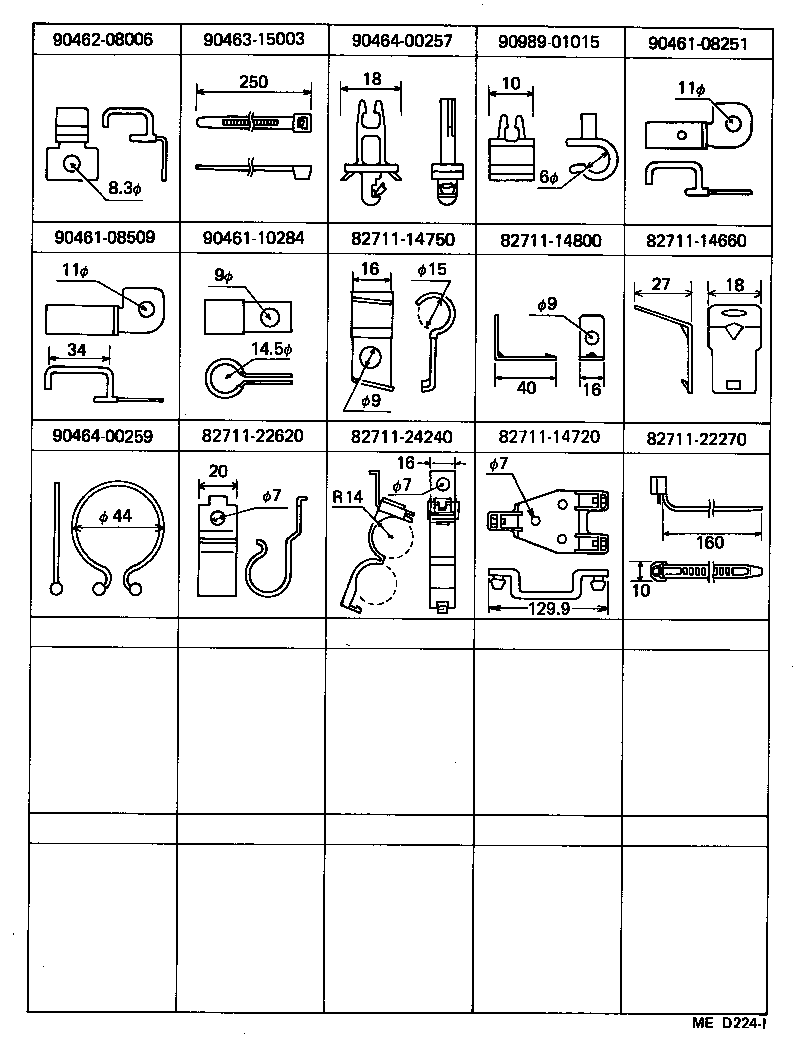

ILLUST NO. 4 OF 5(8109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14660 | ||||
| 82711-14720 | ||||
| 82711-14750 | ||||
| 82711-14800 | ||||
| 82711-22270 | ||||
| 82711-22620 | ||||
| 82711-24240 | ||||
| 90461-08251 | ||||
| 90461-08509 | ||||
| 90461-10284 | ||||
| 90462-08006 | ||||
| 90463-15003 | ||||
| 90464-00257 | ||||
| 90464-00259 | ||||
| 90989-01015 | ||||

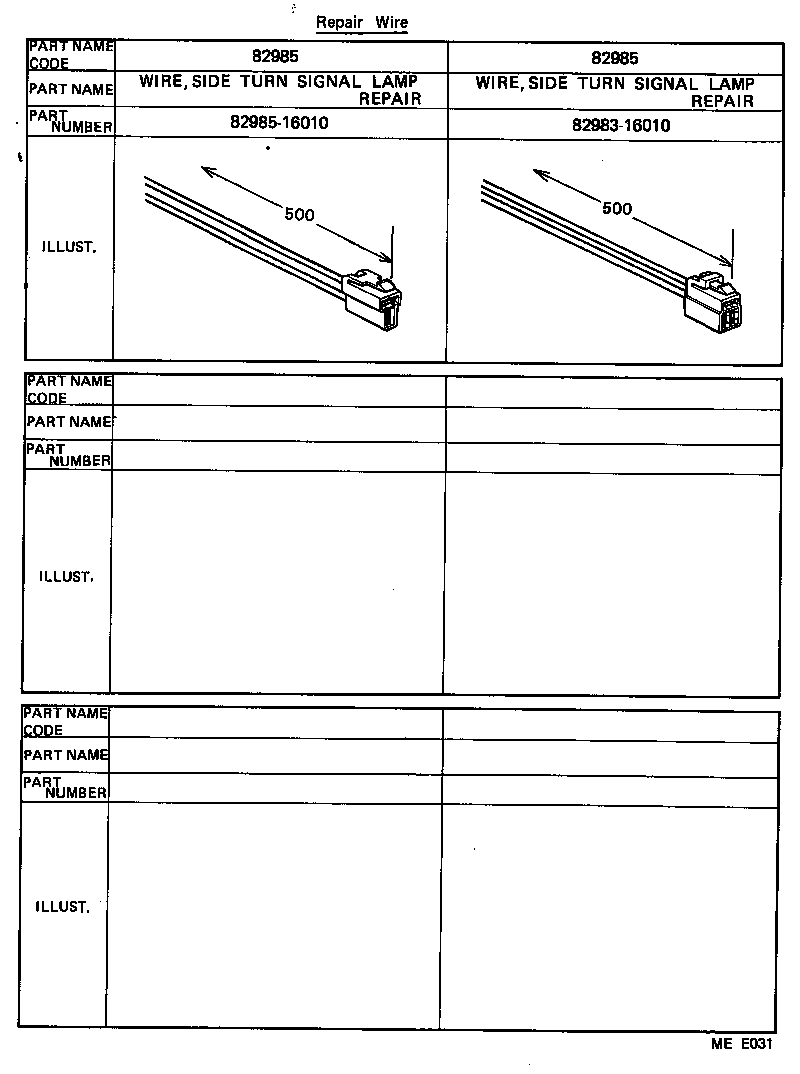

ILLUST NO. 3 OF 5(8109- )GTT ; (8109- )CP..3FC,4F..SG ; (8109- )SA60..CP..SE,ST ; (8109-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| Common parts | ||||
| 82983-16010 | ||||
| 82985-16010 | ||||
ILLUST NO. 3 OF 5(8109- )SA60..SED,WG..4FC,5F ; (8109- )AA60..SED..DLX,SG,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| 82985-16010 |
AA6#,CA60,SA60,TA63..SED |
1 | ||
| Common parts | ||||
| 82983-16010 | ||||
| 82985-16010 | ||||
