AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )SED

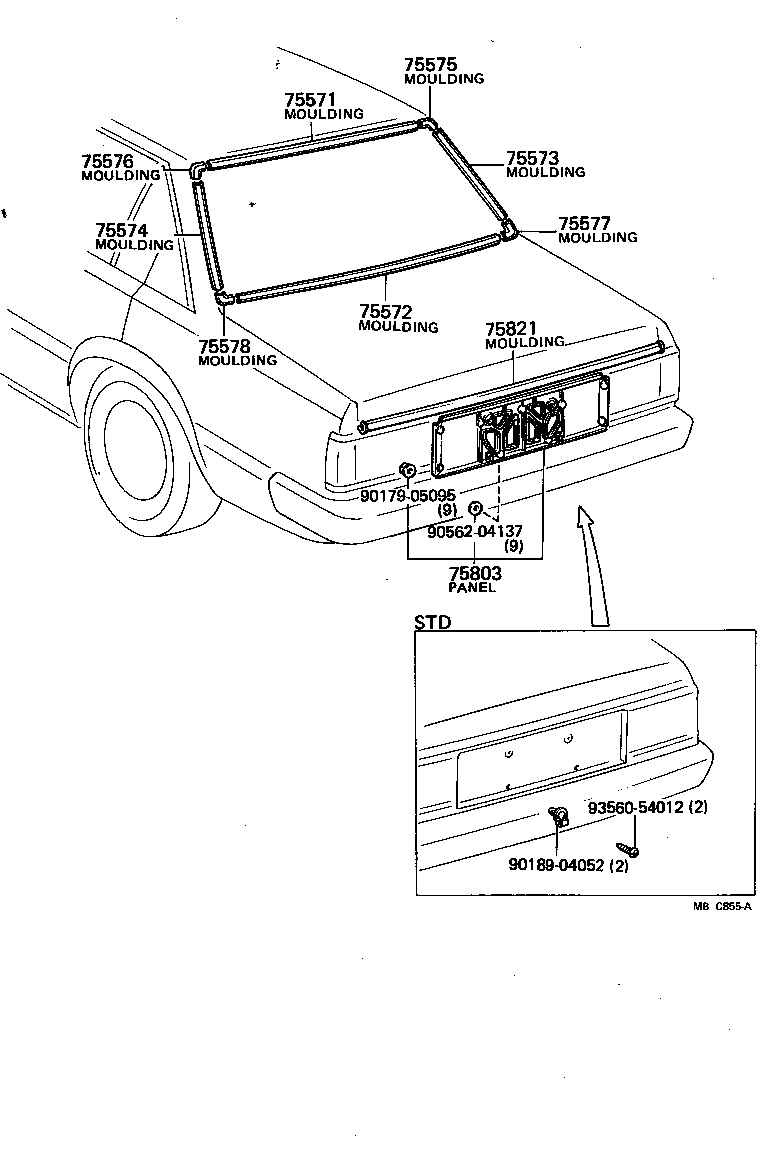

Click highlighted areas on diagram

diagram 75571 75572 75573 75574 75575 75576 75577 75578 75803 75821 9017905095 9018904052 9056204137 9356054012
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-14140

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75572 - MOULDING, BACK WINDOW, LOWER
75575-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-14150

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75573-14150

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75577 - MOULDING, BACK WINDOW CORNER, LOWER RH
75581-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75578 - MOULDING, BACK WINDOW CORNER, LOWER LH
75581-14090

AA6#,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75082-19175

AA60,CA60,RA63,SA60,TA61,63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75082-19305

AA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SE,SG,ST)

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-14130

AA6#,CA60,SA60,TA63..SED

 1
75813-14090

AA60,CA60,RA63,SA60,TA61,63..SED

 1
Common parts
90179-05095
90189-04052
90562-04137
93560-54012
