AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )DLX,GT,GTT,SE,SG,ST

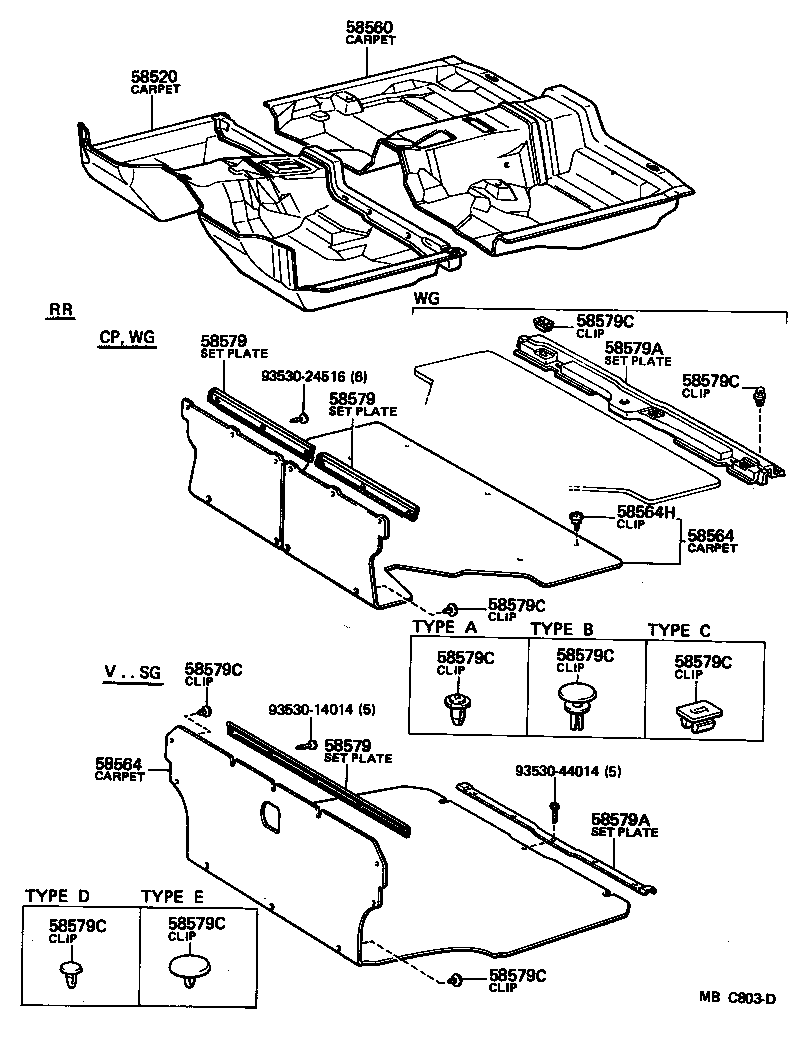

Click highlighted areas on diagram

diagram 58520 58560 58564 58564 58564H 58579 58579 58579 58579A 58579A 58579C 58579C 58579C 58579C 58579C 58579C 58579C 58579C 58579C 58579C 9353014014 9353024516 9353044014
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1466014

AA60,RA63,SA60,TA61,63..DLX,GT,SG,ST

BLUE,BLUE,TRIM8#

 1
58510-1454014

AA60,SA60,TA63..SE

BLUE,BLUE,TRIM8#

 1
58510-1454005

AA60,SA60,TA63..SE

BEIGE,BEIGE,TRIM4#

 1
58510-1454003

AA60,SA60,TA63..SE

GRAY,GRAY,TRIM2#

 1
58510-1454004

AA60,SA60..SE

BLUE,BLUE,TRIM8#

 1
58510-1466003

AA60,RA63,SA60,TA61,63..(CP,SED)..(DLX,GT,GTT,SG,ST)

GRAY,GRAY,TRIM2#

 1
58510-1466005

AA60,RA63,SA60,TA61,63..DLX,GT,SG,ST

BEIGE,BEIGE,TRIM4#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1419014

AA60,CA60,RA63,SA60,TA61,63..DLX,GT,SG,ST

BLUE,BLUE,TRIM8#

 1
58540-1425005

AA60,CA60,SA60,TA63..SE

BEIGE,BEIGE,TRIM4#

 1
58540-1425003

AA60,CA60,SA60,TA63..SE

GRAY,GRAY,TRIM2#

 1
58540-1425014

AA60,CA60,SA60,TA63..SE

BLUE,BLUE,TRIM8#

 1
58540-1419003

AA6#,CA60,RA63,SA60,TA61,63..(CP,SED)..(DLX,GT,GTT,SG,ST)

GRAY,GRAY,TRIM2#

 1
58540-1425004

AA60,CA60,SA60..SE

BLUE,BLUE,TRIM8#

 1
58540-1419005

AA6#,CA60,RA63,SA60,TA61,63..DLX,GT,SG,ST

BEIGE,BEIGE,TRIM4#

 1
Common parts
93530-14014
93530-24516
93530-44014
