AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )DLX,SG,STD ; (8206-8507)SED..SE,ST

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52701 9011910240 9046804029 9165540620 9165561030 9356815012
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14060

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52021-14070

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52021-14070

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52021-14060

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14070

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52115-14061

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52115-14061

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14050

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52116-14041

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52116-14041

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52119A - COVER, FRONT BUMPER
52119-14100

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52119-14230

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52119-14230

AA60,CA6#,KA67,SA60,TA67..(SED,V)..(DLX,SG,STD)

 1
52119-14100

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52711-14020

AA60,CA60,SA60..SED..SE

W/BACK SONAR

 1
52711-14030

AA60,CA67,KA67,TA67..DLX,STD

 1
Common parts
90119-10240
90468-04029
91655-40620
91655-61030
93568-15012

(8109- )GT,GTT,SE,ST ; (8202- )AA60,SA60..DLX,SG

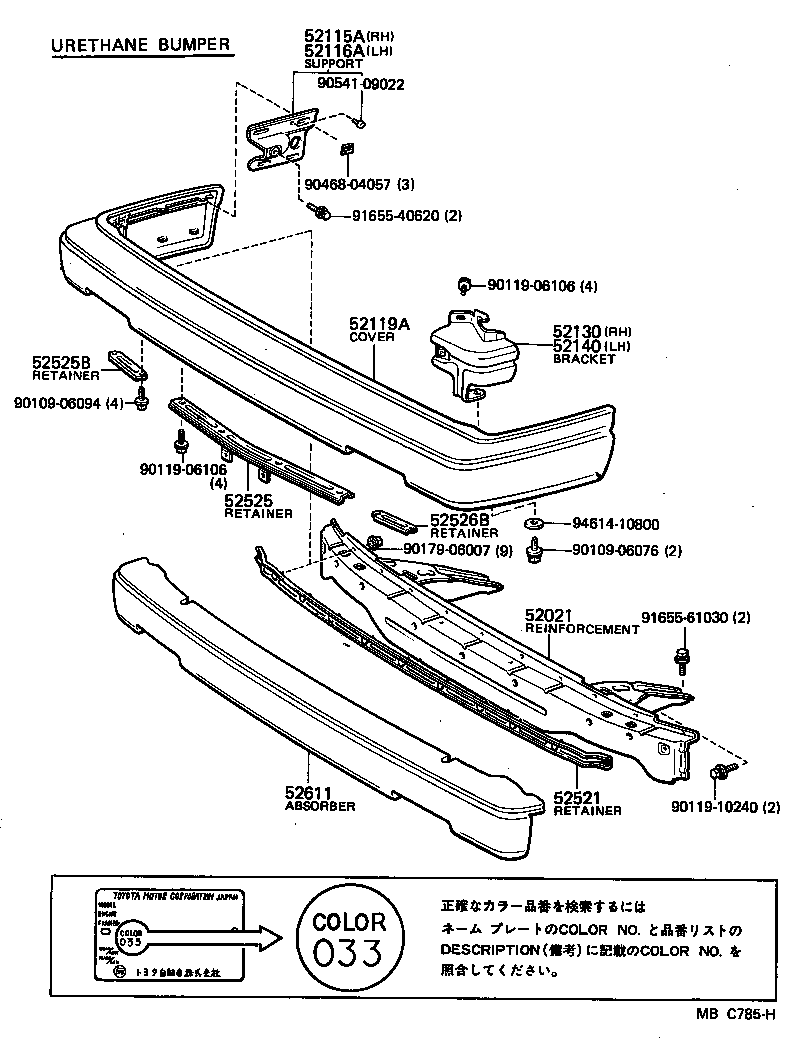

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52130 52140 52521 52525 52525B 52526B 52611 9010906076 9010906094 9011906106 9011906106 9011910240 9017906007 9046804057 9054109022 9165540620 9165561030 9461410800
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14060

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52021-14070

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52021-14070

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52021-14060

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14070

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52115-14061

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52115-14061

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14050

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52116-14041

AA60,CA6#,KA67,SA60,TA67..DLX,SG,STD

 1
52116-14041

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52119A - COVER, FRONT BUMPER
52119-14100

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52119-14230

AA60,CA60,SA60,TA63..SED..(SE,ST)

W/BACK SONAR

 1
52119-14230

AA60,CA6#,KA67,SA60,TA67..(SED,V)..(DLX,SG,STD)

 1
52119-14100

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52145-14100

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52146-14070

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14040

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52072-14010

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-14010

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52526-14010

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-14010

AA60,SA60..SED..(DLX,SG)

ROAD RUNNER,MY ROAD

 1
52526-14010

AA6#,CA60,RA63,SA60,TA61,63..SED..(GT,GTT,SE,ST)

*UB

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-14050

AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,ST

*UB

 1
Common parts
90109-06076
90109-06094
90119-06106
90119-10240
90179-06007
90468-04057
90541-09022
91655-40620
91655-61030
94614-10800
