AA60-AEHDS (1981)
Toyota Carina Fr
(8109- )AA60..SED ; (8109- )AA60..CP..SG,ST ; (8109- )AA63,CA60,RA63,SA60,

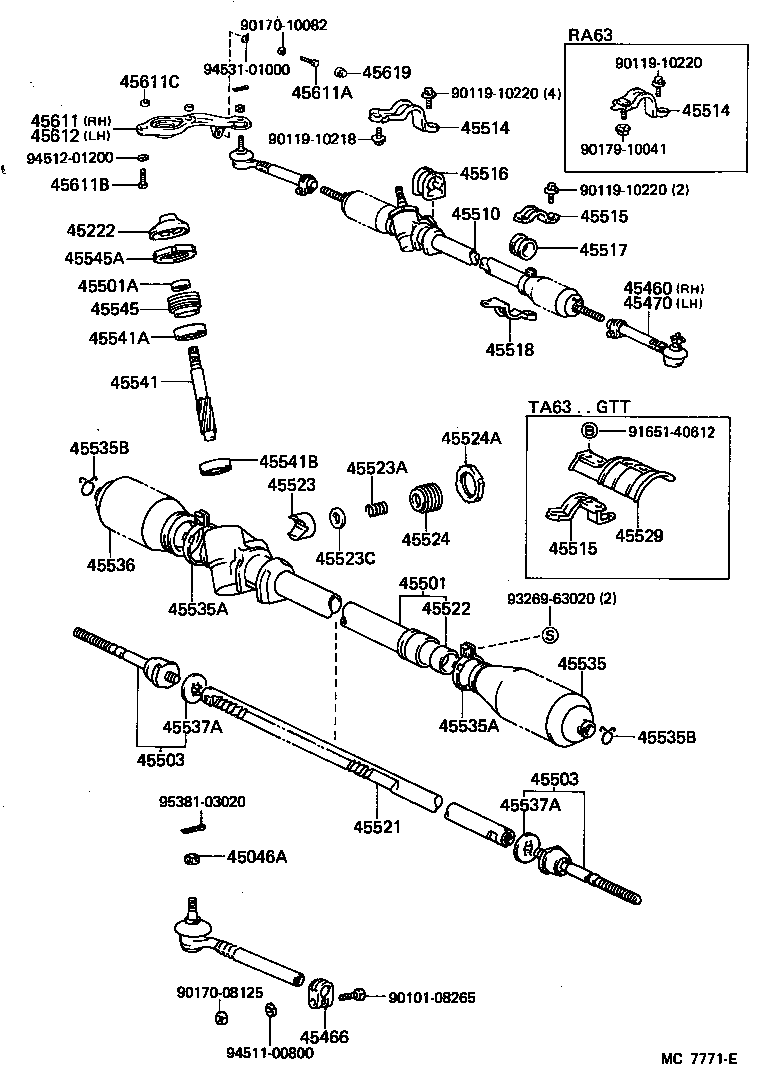

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19165 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460-19155 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19165 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460-19155 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45503-29016 |
TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45503-29016 |
TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14010 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45515-14010 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45515-14010 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45517-14010 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14011 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=61.5 |
1 | ||
| 90461-10273 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=41.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=61.5 |
1 | ||
| 90461-10273 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD ID=41.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 90214-14003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14005 |
TA63;AA60,CA60,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 90214-14003 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14040 |
AA60,SA60..DLX,SG,ST,STD |
1 | ||
| 45611-14030 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 90106-10002 |
AA6#,CA60,RA63,SA60,TA61,63 L=31 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-14030 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45612-14040 |
AA60,SA60..DLX,SG,ST,STD |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 90179-10041 | ||||
| 91651-40612 | ||||
| 93269-63020 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||

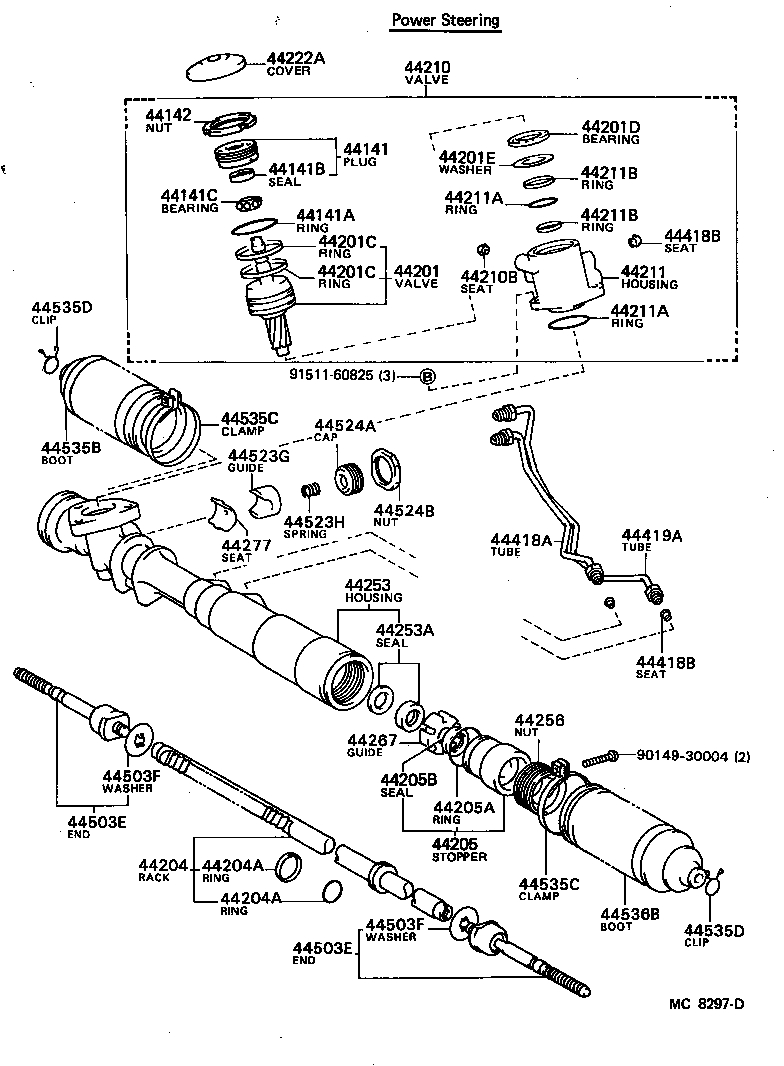

ILLUST NO. 2 OF 2(8201-8205)CA60,SA60 ; (8205-8602)AA60,CA60,SA60..SE,SG,ST ; (8401- )AA60..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44104-22011 |
AA60..DLX MY ROAD |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 90301-51001 |
AA60..DLX MY ROAD |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
AA60..DLX MY ROAD |
1 | ||
| 90311-19002 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 90369-22004 |
AA60..DLX MY ROAD |
1 | ||
| 90369-22004 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44142-22010 |
AA60..DLX MY ROAD |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44201-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AA60,CA60,SA60..SE,SG,ST |
2 | ||
| 90562-46001 |
AA60..DLX MY ROAD |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-46001 |
AA60,CA60,SA60..SE,SG,ST |
2 | ||
| 90562-46001 |
AA60..DLX MY ROAD |
2 | ||
| 44201D - BEARING, THRUST NEEDLE ROLLER(FOR CONTROL VALVE) | ||||
| 90374-30003 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 90374-30003 |
AA60..DLX MY ROAD |
1 | ||
| 44201E - WASHER, PLATE(FOR POWER STEERING CONTROL VALVE) | ||||
| 90201-30003 |
AA60..DLX MY ROAD |
1 | ||
| 90201-30003 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44204-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
AA60..DLX MY ROAD,INNER |
1 | ||
| 90562-38002 |
AA60..DLX MY ROAD,OUTER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-34003 |
AA60..DLX MY ROAD,INNER |
1 | ||
| 90562-38002 |
AA60..DLX MY ROAD,OUTER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-46001 |
AA60..DLX MY ROAD |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-25002 |
AA60..DLX MY ROAD |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44210-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
AA60..DLX MY ROAD |
2 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44211-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-26001 |
AA60,CA60,SA60..SE,SG,ST INNER |
1 | ||
| 90301-38002 |
AA60..DLX MY ROAD,OUTER |
1 | ||
| 90301-26001 |
AA60..DLX MY ROAD,INNER |
1 | ||
| 90301-38002 |
AA60,CA60,SA60..SE,SG,ST OUTER |
1 | ||
| 44211A - RING, O(FOR CONTROL VALVE HOUSING) | ||||
| 90301-26001 |
AA60,CA60,SA60..SE,SG,ST INNER |
1 | ||
| 90301-38002 |
AA60..DLX MY ROAD,OUTER |
1 | ||
| 90301-26001 |
AA60..DLX MY ROAD,INNER |
1 | ||
| 90301-38002 |
AA60,CA60,SA60..SE,SG,ST OUTER |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-29002 |
AA60..DLX MY ROAD,UPR,ID=29.9 |
1 | ||
| 90562-24002 |
AA60,CA60,SA60..SE,SG,ST LWR,ID=24.4 |
1 | ||
| 90562-24002 |
AA60..DLX MY ROAD,LWR,ID=24.4 |
1 | ||
| 90562-29002 |
AA60,CA60,SA60..SE,SG,ST UPR,ID=29.9 |
1 | ||
| 44211B - RING(FOR CONTROL VALVE HOUSING) | ||||
| 90562-29002 |
AA60..DLX MY ROAD,UPR,ID=29.9 |
1 | ||
| 90562-24002 |
AA60,CA60,SA60..SE,SG,ST LWR,ID=24.4 |
1 | ||
| 90562-24002 |
AA60..DLX MY ROAD,LWR,ID=24.4 |
1 | ||
| 90562-29002 |
AA60,CA60,SA60..SE,SG,ST UPR,ID=29.9 |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-12010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 45222-12010 |
AA60..DLX MY ROAD |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44203-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90999-99120 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 90999-99120 |
AA60..DLX MY ROAD |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-12010 |
AA60..DLX MY ROAD |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44267-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44418-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AA60,CA60,SA60..SE,SG,ST VALVE SIDE |
2 | ||
| 90410-03002 |
AA60..DLX MY ROAD,VALVE SIDE |
2 | ||
| 90410-03002 |
AA60,CA60,SA60..SE,SG,ST VALVE SIDE |
2 | ||
| 90410-05005 |
AA60,CA60,SA60..SE,SG,ST HOUSING SIDE |
2 | ||
| 90410-05005 |
AA60..DLX MY ROAD,HOUSING SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-02001 |
AA60,CA60,SA60..SE,SG,ST VALVE SIDE |
2 | ||
| 90410-03002 |
AA60..DLX MY ROAD,VALVE SIDE |
2 | ||
| 90410-03002 |
AA60,CA60,SA60..SE,SG,ST VALVE SIDE |
2 | ||
| 90410-05005 |
AA60,CA60,SA60..SE,SG,ST HOUSING SIDE |
2 | ||
| 90410-05005 |
AA60..DLX MY ROAD,HOUSING SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 44419-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29016 |
AA60..DLX MY ROAD |
2 | ||
| 45503-29015 |
AA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29016 |
AA60..DLX MY ROAD |
2 | ||
| 45503-29015 |
AA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
AA60..DLX MY ROAD |
2 | ||
| 90214-14003 |
AA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
AA60..DLX MY ROAD |
2 | ||
| 90214-14003 |
AA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-12010 |
AA60..DLX MY ROAD |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
AA60..DLX MY ROAD |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
AA60..DLX MY ROAD |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AA60..DLX MY ROAD |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AA60..DLX MY ROAD |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10568 |
AA60..DLX MY ROAD |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AA60..DLX MY ROAD |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AA60..DLX MY ROAD |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-20010 |
AA60..DLX MY ROAD |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
ILLUST NO. 1 OF 2(8201-8205)CA60,SA60 ; (8205- )AA60,CA60,SA60..SE,SG,ST ; (8401- )AA60..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-20010 |
AA60..DLX MY ROAD |
1 | ||
| 04445-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 04455-20020 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 04455-20020 |
AA60..DLX MY ROAD |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44250-20010 |
AA60,CA60,SA60..SE,SG,ST |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-19165 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460-19155 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-19165 |
AA60,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45460-19155 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14012 |
AA6#,CA60,SA60,TA61,63 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45515-14010 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14020 |
TA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD |
1 | ||
| 45517-14010 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-14040 |
AA60,SA60..DLX,SG,ST,STD |
1 | ||
| 45611-14030 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=34 |
2 | ||
| 90106-10002 |
AA6#,CA60,RA63,SA60,TA61,63 L=31 |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-12491 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=42 |
4 | ||
| 90101-12379 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=39 |
4 | ||
| 90101-12295 |
AA6#,CA6#,KA67,RA63,SA60,TA6# L=35 |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
4 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
2 | ||
| Common parts | ||||
| 90101-08265 | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90170-08125 | ||||
| 90170-10082 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
