AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )AA60..SE,SG,ST ; (8401- )AA60..DLX

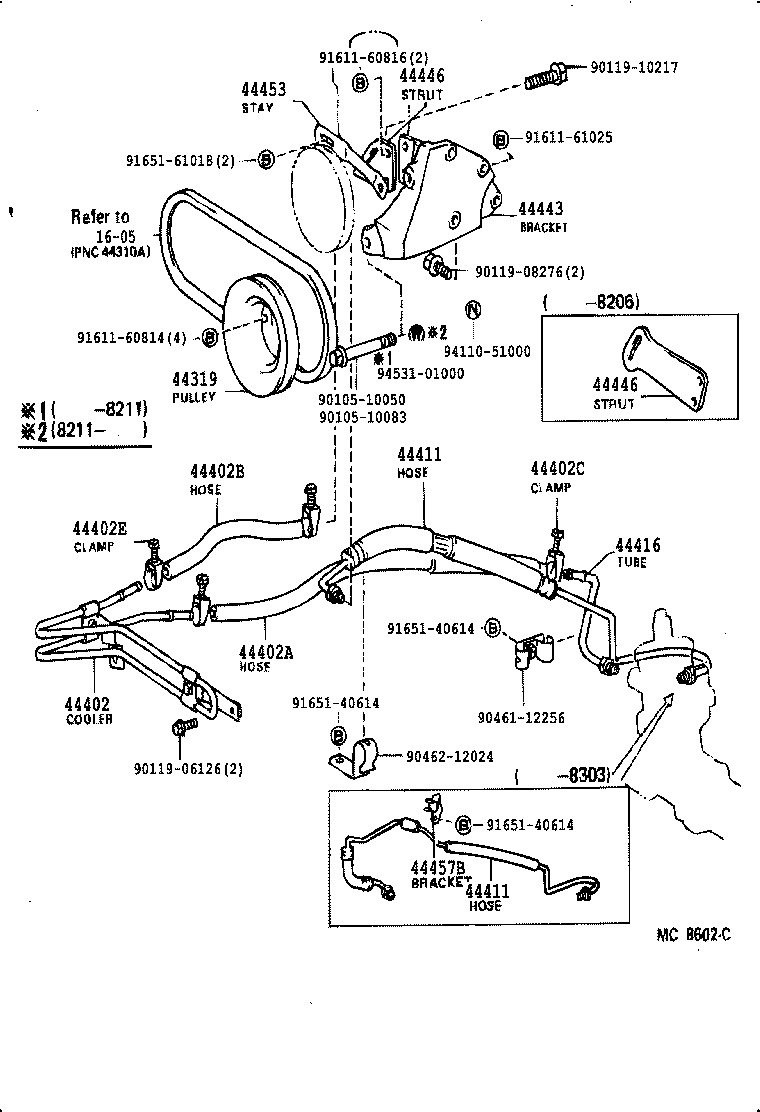

Click highlighted areas on diagram
AA60..DLX=MY ROAD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44319 - PULLEY, VANE PUMP DRIVE | ||||
| 44319-12011 |
AA60..SE,SG,ST |
1 | ||
| 44319-12011 |
AA60..DLX MY ROAD |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-14050 |
AA60,CA60,RA63,SA60..GT,SE,SG,ST |
1 | ||
| 44402-14110 |
AA60..DLX MY ROAD |
1 | ||
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 44412-20010 |
AA60..DLX MY ROAD |
1 | ||
| 44412-20010 |
AA60..SE,SG,ST |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 44412-20020 |
AA60..SE,SG,ST |
1 | ||
| 44412-20020 |
AA60..DLX MY ROAD |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
AA60..DLX MY ROAD |
2 | ||
| 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE | ||||
| 90460-01001 |
AA60..DLX MY ROAD |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20060 |
AA60..SE,SG,ST |
1 | ||
| 44411-20061 |
AA60..DLX MY ROAD |
1 | ||
| 44411-20061 |
AA60..SE,SG,ST |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-20060 |
AA60..SE,SG,ST |
1 | ||
| 44411-20061 |
AA60..DLX MY ROAD |
1 | ||
| 44411-20061 |
AA60..SE,SG,ST |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20040 |
AA60..SE,SG,ST |
1 | ||
| 44416-20040 |
AA60..DLX MY ROAD |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12020 |
AA60..SE,SG,ST |
1 | ||
| 44443-12021 |
AA60..DLX MY ROAD |
1 | ||
| 44443-12021 |
AA60..SE,SG,ST |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12011 |
AA60..DLX MY ROAD |
1 | ||
| 44446-12011 |
AA60..SE,SG,ST |
1 | ||
| 44446-12010 |
AA60..SE,SG,ST |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12011 |
AA60..DLX MY ROAD |
1 | ||
| 44446-12011 |
AA60..SE,SG,ST |
1 | ||
| 44446-12010 |
AA60..SE,SG,ST |
1 | ||
| 44453 - STAY, PUMP, FRONT | ||||
| 44453-12010 |
AA60..SE,SG,ST |
1 | ||
| 44453-12010 |
AA60..DLX MY ROAD |
1 | ||
| 44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2 | ||||
| 44457-20020 |
AA60..SE,SG,ST |
1 | ||
| Common parts | ||||
| 90105-10050 | ||||
| 90105-10083 | ||||
| 90119-06126 | ||||
| 90119-08276 | ||||
| 90119-10217 | ||||
| 90461-12256 | ||||
| 90462-12024 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-40614 | ||||
| 91651-61018 | ||||
| 94110-51000 | ||||
| 94531-01000 | ||||
| Linked diagrams | ||||
| 1605 | ||||
