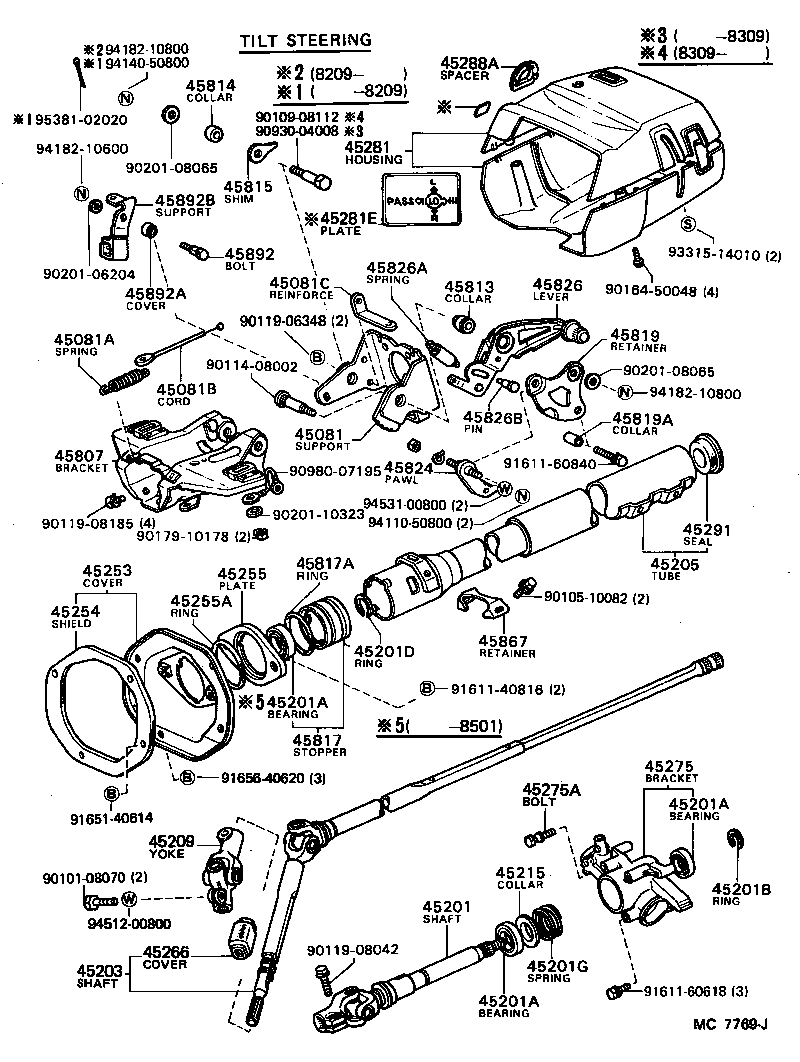

AA60-AEHDS (1981)
Toyota Carina Fr
(8109- )AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20130 |
AA60..DLX MY ROAD,W/PS |
1 | ||
| 45210-14010 |
AA60..DLX,SG,STD |
1 | ||
| 45210-22050 |
AA60..SE,ST |
1 | ||
| 45210-14021 |
AA60..DLX,SG,STD |
1 | ||
| 45210-14020 |
AA60..DLX,SG,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA6#,CA60,RA63,SA60,TA61,63 LWR |
1 | ||
| 90363-28001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA6#,CA60,RA63,SA60,TA61,63 LWR |
1 | ||
| 90363-28001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA6#,CA60,RA63,SA60,TA61,63 LWR |
1 | ||
| 90363-28001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-20040 |
AA60,CA60,SA60..SE,SG,ST W/POWER STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14110 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45870-14100 |
AA60..DLX,SG,STD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45209-14030 |
AA60,CA60,SA60..DLX,SG,ST,STD |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AA60,RA63,SA60,TA61,63 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24030 |
AA60,CA67,TA67..DLX,SG,STD |
1 | ||
| 45280-24011 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-14010 |
AA60,RA63,SA60,TA61,63..GT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45897-12030 |
AA60..DLX,SG,STD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492206 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST DARK BROWN,W/TILT STEERING,BROWN,TRIM4# |
1 | ||
| 45286-1492204 |
CA60,SA60;AA6#,TA63..GT,GTT,SE,ST BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-1492201 |
AA60,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,SG,ST) BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45286-1492204 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-2490004 |
AA60..DLX,SG BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490001 |
AA60,CA67,KA67,TA67..DLX,SG,STD BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2490014 |
AA60..DLX,SG BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-24011 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45082-14050 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22040 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=18.017−18.024,OD=18.017-18.024 |
1 | ||
| 45813-22020 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=18.003−18.010,OD=18.003-18.010 |
1 | ||
| 45813-22030 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=18.010−18.017,OD=18.010-18.017 |
1 | ||
| 45813-22050 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=17.989−17.996,OD=17.989-17.996 |
1 | ||
| 45813-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=17.996−18.003,OD=17.996-18.003 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=17.982−18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 外径=18.000−18.018,OD=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22090 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22080 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 厚さ=0.8,T=0.8 |
1 | ||
| 45815-22070 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 厚さ=0.5,T=0.5 |
1 | ||
| 45815-22100 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22060 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST 厚さ=0.2,T=0.2 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06348 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
(8109- )AA60..DLX,SG,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20130 |
AA60..DLX MY ROAD,W/PS |
1 | ||
| 45210-14010 |
AA60..DLX,SG,STD |
1 | ||
| 45210-22050 |
AA60..SE,ST |
1 | ||
| 45210-14021 |
AA60..DLX,SG,STD |
1 | ||
| 45210-14020 |
AA60..DLX,SG,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA6#,CA60,RA63,SA60,TA61,63 LWR |
1 | ||
| 90363-28001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30007 |
AA6#,CA60,RA63,SA60,TA61,63 LWR |
1 | ||
| 90363-28001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST CTR,W/TILT STEERING |
1 | ||
| 90363-18001 |
AA6#,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AA60,CA67,KA67,SA60,TA67..DLX,SG,STD 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14110 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45870-14100 |
AA60..DLX,SG,STD |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-14020 |
AA60..DLX MY ROAD,W/POWER STEERING |
1 | ||
| 45209-14030 |
AA60,CA60,SA60..DLX,SG,ST,STD |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
AA60,RA63,SA60,TA61,63 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24030 |
AA60,CA67,TA67..DLX,SG,STD |
1 | ||
| 45280-24011 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-14010 |
AA60,RA63,SA60,TA61,63..GT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45897-12030 |
AA60..DLX,SG,STD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492206 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST DARK BROWN,W/TILT STEERING,BROWN,TRIM4# |
1 | ||
| 45286-1492204 |
CA60,SA60;AA6#,TA63..GT,GTT,SE,ST BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-1492201 |
AA60,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,GTT,SE,SG,ST) BLACK,W/TILT STEERING,BLACK,TRIM2# |
1 | ||
| 45286-1492204 |
AA60,CA60,RA63,SA60,TA61,63..GT,SE,SG,ST BLUE,W/TILT STEERING,BLUE,TRIM8# |
1 | ||
| 45286-2490004 |
AA60..DLX,SG BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490001 |
AA60,CA67,KA67,TA67..DLX,SG,STD BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2490014 |
AA60..DLX,SG BLUE,BLUE,TRIM8# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-24011 |
AA60,CA67,KA67,TA67..DLX,SG,STD |
1 | ||
| 45082-14050 |
AA60,CA60,RA63,SA60,TA61,63..GT,GTT,SE,SG,ST W/TILT STEERING |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA6#,CA60,RA63,SA60,TA61,63 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
