AA60-AEHDS (1981)
Toyota Carina Fr

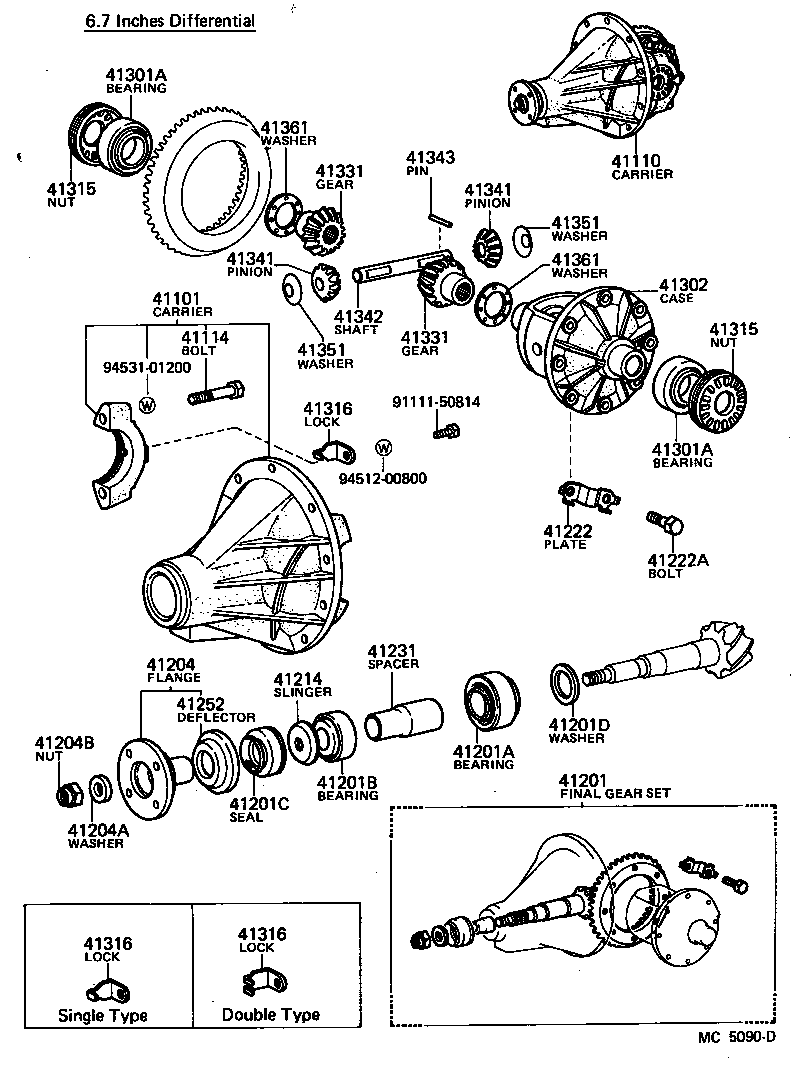

ILLUST NO. 1 OF 2(8109- )AA60,CA6#,KA67,SA60,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-20020 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-20181 |
AA60,CA60..ATM R=41:10=4.100 |
1 | ||
| 41110-20182 |
AA60..3FC *FGR=41:10=4.100,R=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29196 |
AA60,CA60..ATM N=41:10 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-34049 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30002 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38015 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35398 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.42,ﾏｰｸ 07,T=2.41-2.43 |
1 | ||
| 90201-35401 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.51,ﾏｰｸ 10,T=2.50-2.52 |
1 | ||
| 90201-35399 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.43,ﾏｰｸ 08,T=2.44-2.46 |
1 | ||
| 90201-35396 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.36,ﾏｰｸ 05,T=2.35-2.37 |
1 | ||
| 90201-35438 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.63,ﾏｰｸ 14,T=2.62-2.64 |
1 | ||
| 90201-35400 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.48,ﾏｰｸ 09,T=2.47-2.49 |
1 | ||
| 90201-35436 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.30,ﾏｰｸ 03,T=2.29-2.31 |
1 | ||
| 90201-35397 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.39,ﾏｰｸ 06,T=2.38-2.40 |
1 | ||
| 90201-35440 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.69,ﾏｰｸ 16,T=2.68-2.70 |
1 | ||
| 90201-35437 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.33,ﾏｰｸ 04,T=2.32-2.34 |
1 | ||
| 90201-35402 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.54,ﾏｰｸ 11,T=2.53-2.55 |
1 | ||
| 90201-35439 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.66,ﾏｰｸ 15,T=2.65-2.67 |
1 | ||
| 90201-35404 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.60,ﾏｰｸ 13,T=2.59-2.61 |
1 | ||
| 90201-35435 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.27,ﾏｰｸ 02,T=2.26-2.28 |
1 | ||
| 90201-35403 |
AA6#,CA6#,KA67,RA63,SA60,TA6# 厚さ=2.57,ﾏｰｸ 12,T=2.56-2.58 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
AA6#,CA6#,KA67,RA63,SA60,TA6# # |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
4 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
AA6#,CA6#,KA67,RA63,SA60,TA6# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-22010 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41053 |
AA60,CA6#,KA67,SA60,TA67 NSK |
2 | ||
| 90368-41056 |
AA60,CA6#,KA67,SA60,TA67 NACHI |
2 | ||
| 90368-41050 |
AA60,CA6#,KA67,SA60,TA67 KOYO |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41053 |
AA60,CA6#,KA67,SA60,TA67 NSK |
2 | ||
| 90368-41056 |
AA60,CA6#,KA67,SA60,TA67 NACHI |
2 | ||
| 90368-41050 |
AA60,CA6#,KA67,SA60,TA67 KOYO |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22030 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-22011 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
AA60,CA6#,KA67,SA60,TA67 SINGLE TYPE |
2 | ||
| 41317-22011 |
AA60,CA6#,KA67,SA60,TA67 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
AA60,CA6#,KA67,SA60,TA67 SINGLE TYPE |
2 | ||
| 41317-22011 |
AA60,CA6#,KA67,SA60,TA67 DOUBLE TYPE |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-22011 |
AA60,CA6#,KA67,SA60,TA67 SINGLE TYPE |
2 | ||
| 41317-22011 |
AA60,CA6#,KA67,SA60,TA67 DOUBLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22010 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22140 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| 41361-22150 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22030 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22160 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.20,ﾏｰｸ 04,T=1.18-1.22 |
2 | ||
| 41361-22140 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=0.95,ﾏｰｸ 14,T=0.93-0.97 |
2 | ||
| 41361-22020 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.00,ﾏｰｸ 02,T=0.98-1.02 |
2 | ||
| 41361-22150 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.05,ﾏｰｸ 15,T=1.03-1.07 |
2 | ||
| 41361-22030 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.10,ﾏｰｸ 03,T=1.08-1.12 |
2 | ||
| 41361-22160 |
AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD 厚さ=1.15,ﾏｰｸ 16,T=1.13-1.17 |
2 | ||
| Common parts | ||||
| 91111-50814 | ||||
| 94512-00800 | ||||
| 94531-01200 | ||||

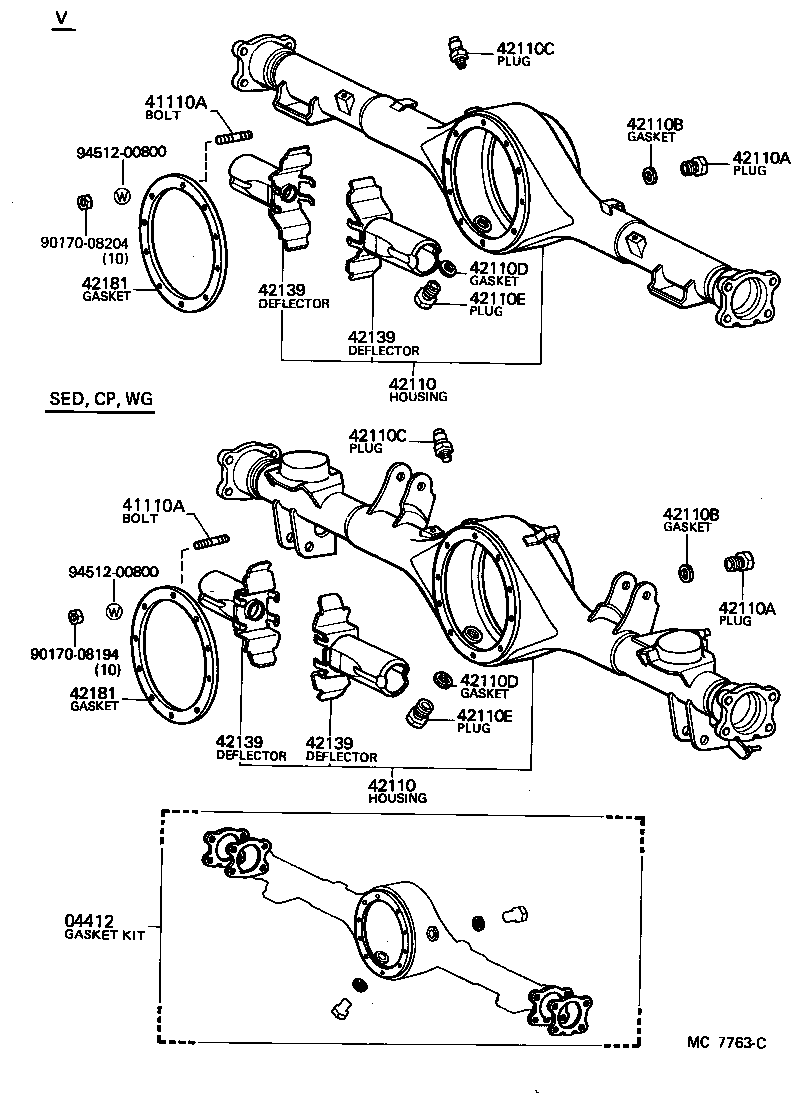

ILLUST NO. 2 OF 2(8109- )AA60,CA6#,KA67,SA60,TA67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-14040 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
AA60,CA6#,KA67,SA60,TA67 ﾈｼﾞ部長さ=12 & 15,長さ=34,L=34 |
9 | ||
| 90116-08236 |
AA60,CA6#,KA67,SA60,TA67 ﾈｼﾞ部長さ=12 & 15,長さ=78,L=78 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08235 |
AA60,CA6#,KA67,SA60,TA67 ﾈｼﾞ部長さ=12 & 15,長さ=34,L=34 |
9 | ||
| 90116-08236 |
AA60,CA6#,KA67,SA60,TA67 ﾈｼﾞ部長さ=12 & 15,長さ=78,L=78 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-14260 |
AA60,CA60 |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-14260 |
AA60,CA60 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-14010 |
AA60,CA6#,KA67,SA60,TA67 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-22010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-22010 |
AA60,CA6#,KA67,SA60,TA67 |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||
