AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8109- )ATM

Click highlighted areas on diagram

diagram 35505 35506 35506C 35506F 35506H 35556 35556E 35557 35557A 35572 35585 35595 9010106416 9411050800 9451200800 9454200600
Part # Description Qty Price
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-22030

AA60,CA60,KA67,SA60,TA63..ATM

 1
35505-22010

AA60,CA60,SA60,TA63,67..ATM

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35561-20021

AA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-03004

AA60,CA60,SA60,TA63,67..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-11128

AA60,CA60,SA60,TA63,67..ATM

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20003

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-22010

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35557 - PAWL, PARKING LOCK
35557-22010

AA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-25001

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH
35572-22040

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35585 - ROD, PARKING LOCK
35501-22020

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-16010

AA60,CA60,KA67,SA60,TA63,67..ATM

 1
35595-22020

AA60,CA60,KA67,SA60,TA63..ATM

 1
Common parts
90101-06416
94110-50800
94512-00800
94542-00600

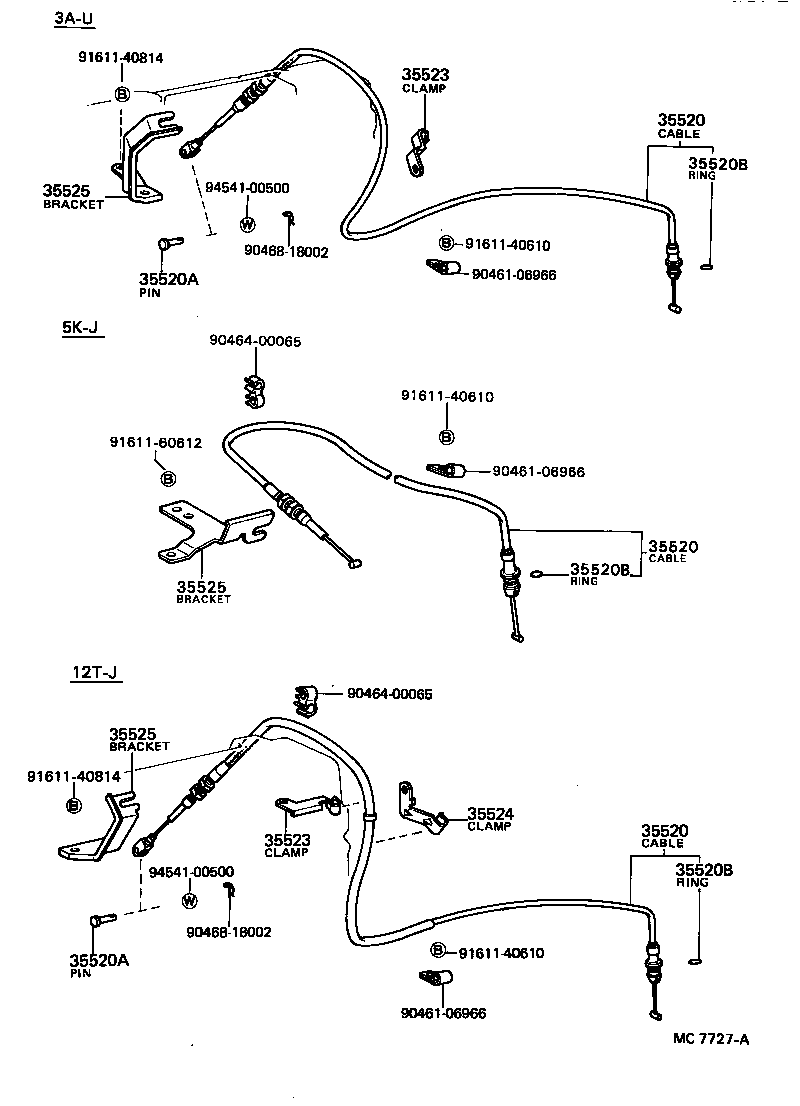

ILLUST NO. 2 OF 2(8109- )AA60,TA67..ATM

Click highlighted areas on diagram

diagram 35520 35520 35520 35520A 35520A 35520B 35520B 35520B 35523 35523 35524 35525 35525 35525 9046106966 9046106966 9046106966 9046400065 9046400065 9046818002 9046818002 9161140610 9161140610 9161140610 9161140814 9161140814 9161160612 9454100500 9454100500
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-12060

AA60..3FC

 1
35520 - CABLE ASSY, THROTTLE
35520-12060

AA60..3FC

 1
35520 - CABLE ASSY, THROTTLE
35520-12060

AA60..3FC

 1
35520A - PIN, THROTTLE CABLE
90240-05139

AA60,TA67..ATM

 1
35520A - PIN, THROTTLE CABLE
90240-05139

AA60,TA67..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

AA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

AA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

AA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)

 1
35523 - CLAMP, THROTTLE CABLE
35523-12050

AA60..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-12050

AA60..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-12050

AA60..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-12050

AA60..ATM

 1
35525 - BRACKET, THROTTLE CABLE
35525-12050

AA60..ATM

 1
Common parts
90461-06966
90464-00065
90468-18002
91611-40610
91611-40814
91611-60612
94541-00500
