AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )ATM

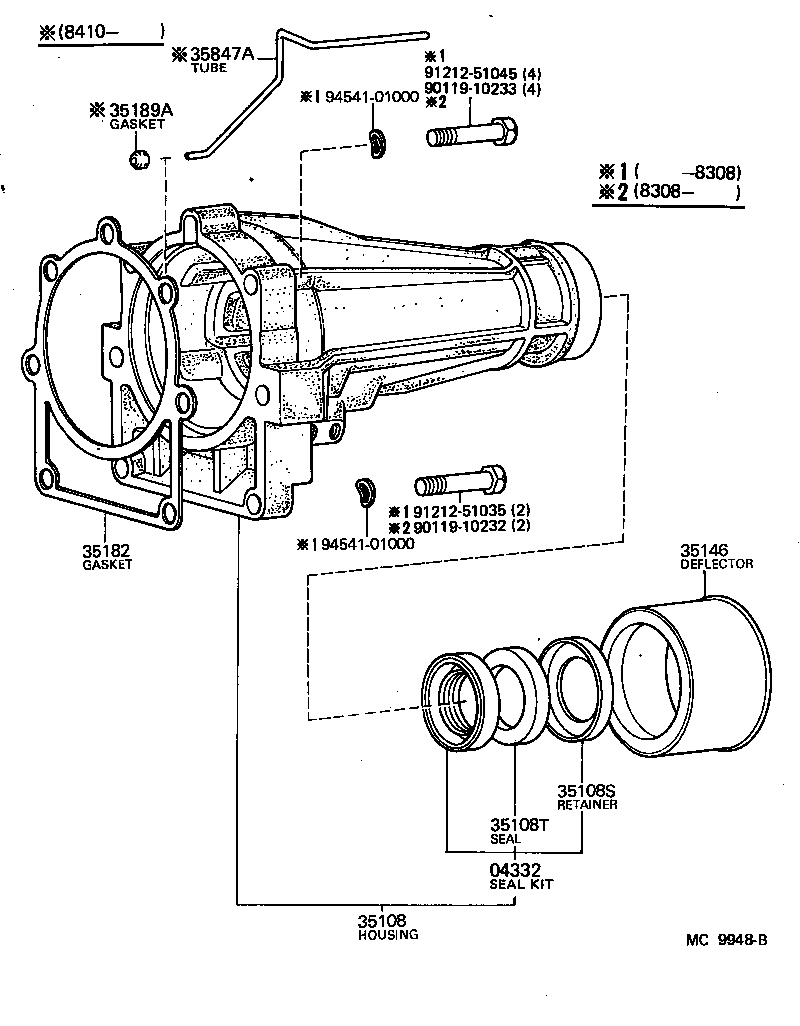

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04332 - SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 04332-30020 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| 35108 - HOUSING SUB-ASSY, EXTENSION (ATM) | ||||
| 35108-22033 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| 35108-22032 |
AA60,SA60,TA63,67..ATM |
1 | ||
| 35108S - RETAINER, EXTENSION HOUSING DUST SEAL (ATM) | ||||
| 33145-30010 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| 35108T - SEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSIN | ||||
| 90303-38010 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| 35146 - DEFLECTOR, EXTENSION HOUSING DUST (ATM) | ||||
| 33146-30010 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| 35182 - GASKET, EXTENSION HOUSING (ATM) | ||||
| 35182-22010 |
AA60,CA60,KA67,SA60,TA63,67..ATM |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 91212-51035 | ||||
| 91212-51045 | ||||
| 94541-01000 | ||||
