AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )3AU

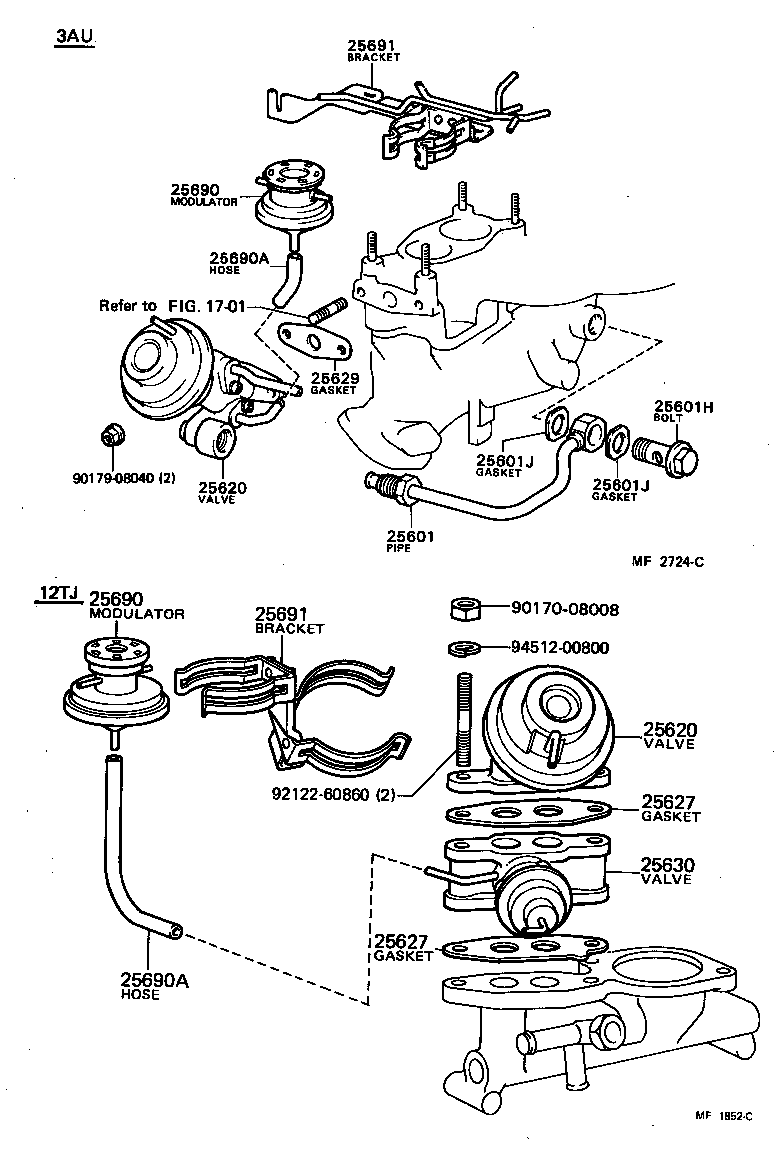

Click highlighted areas on diagram
MF2724C,MF1852C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-15020 |
3AU..AA60 |
1 | ||
| 25601-15020 |
3AU..AA60 |
1 | ||
| 25601H - BOLT, UNION(FOR EGR PIPE,NO.1) | ||||
| 90401-20003 |
3AU..AA60 |
1 | ||
| 90401-20003 |
3AU..AA60 |
1 | ||
| 25601J - GASKET(FOR EGR PIPE, NO.1) | ||||
| 90430-20005 |
3AU..AA60 |
2 | ||
| 90430-20005 |
3AU..AA60 |
2 | ||
| 25601J - GASKET(FOR EGR PIPE, NO.1) | ||||
| 90430-20005 |
3AU..AA60 |
2 | ||
| 90430-20005 |
3AU..AA60 |
2 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-15170 |
3AU..AA60 |
1 | ||
| 25620-15170 |
3AU..AA60 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-15170 |
3AU..AA60 |
1 | ||
| 25620-15170 |
3AU..AA60 |
1 | ||
| 25629 - GASKET, EGR VALVE ADAPTER | ||||
| 25629-15010 |
3AU..AA60 |
1 | ||
| 25629-15010 |
3AU..AA60 |
1 | ||
| 25629-15011 |
3AU..AA60 |
1 | ||
| 25629-15011 |
3AU..AA60 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-15100 |
3AU..AA60 |
1 | ||
| 25870-15100 |
3AU..AA60 |
1 | ||
| 25690 - MODULATOR ASSY, EGR VACUUM | ||||
| 25870-15100 |
3AU..AA60 |
1 | ||
| 25870-15100 |
3AU..AA60 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90445-11041 |
3AU..AA60 |
1 | ||
| 90445-11041 |
3AU..AA60 |
1 | ||
| 25690A - HOSE(FOR EGR VACUUM MODULATOR) | ||||
| 90445-11041 |
3AU..AA60 |
1 | ||
| 90445-11041 |
3AU..AA60 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-15070 |
3AU..AA60 |
1 | ||
| 25691-15070 |
3AU..AA60 |
1 | ||
| 25691-15071 |
3AU..AA60 |
1 | ||
| 25691-15071 |
3AU..AA60 |
1 | ||
| 25691 - BRACKET, EGR VACUUM MODULATOR | ||||
| 25691-15070 |
3AU..AA60 |
1 | ||
| 25691-15070 |
3AU..AA60 |
1 | ||
| 25691-15071 |
3AU..AA60 |
1 | ||
| 25691-15071 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90170-08008 | ||||
| 90179-08040 | ||||
| 92122-60860 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
