AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8109- )3AU

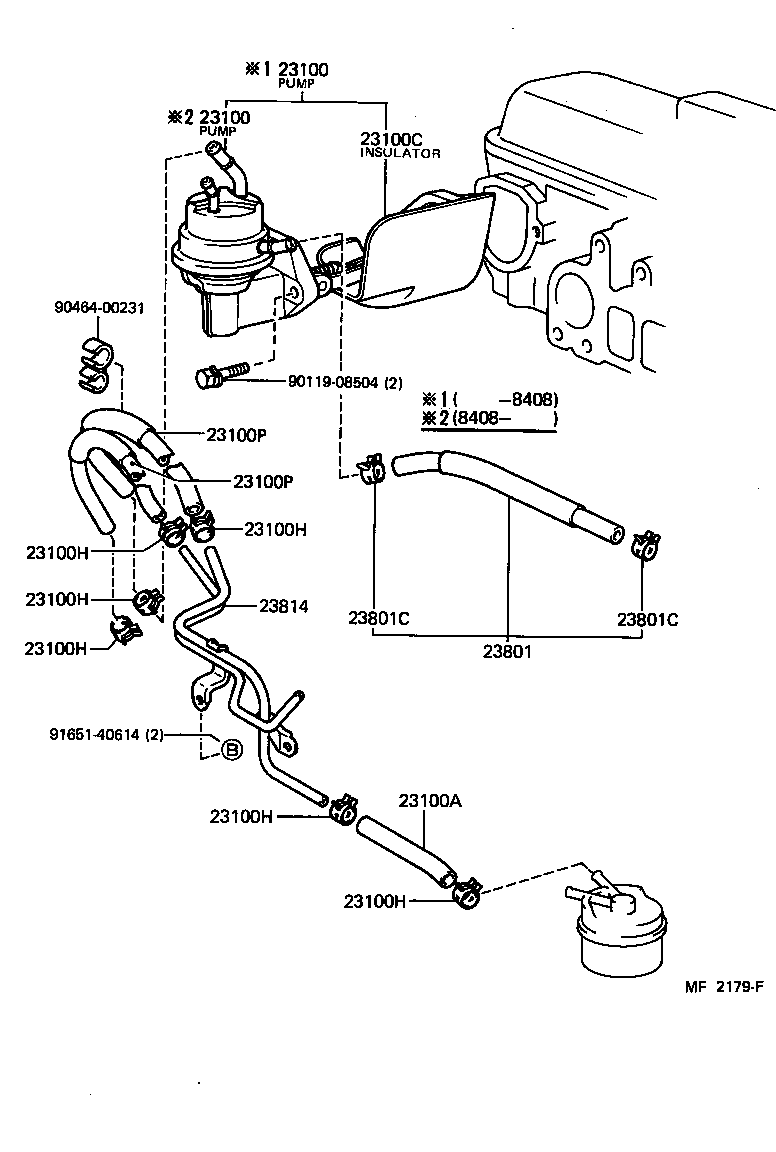

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19146 |
3AU..AA60 |
1 | ||
| 23100-15042 |
3AU..AA60 |
1 | ||
| 23100-19145 |
3AU..AA60 |
1 | ||
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19146 |
3AU..AA60 |
1 | ||
| 23100-15042 |
3AU..AA60 |
1 | ||
| 23100-19145 |
3AU..AA60 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06020 |
3AU..AA60 *H,L=120 |
1 | ||
| 95333-06020 |
3AU..AA60 *H,L=120 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-15011 |
3AU..AA60 |
1 | ||
| 23915-15010 |
3AU..AA60 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30400 |
3AU..AA60 RETURN |
2 | ||
| 96132-30600 |
3AU..AA60 MAIN |
4 | ||
| 23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE) | ||||
| 95332-06040 |
3AU..AA60 *H,L=360,MAIN |
1 | ||
| 23271-15050 |
3AU..AA60 RETURN |
1 | ||
| 95332-04040 |
3AU..AA60 *H,L=340,RETURN |
1 | ||
| 23271-15040 |
3AU..AA60 MAIN |
1 | ||
| 23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE) | ||||
| 95332-06040 |
3AU..AA60 *H,L=360,MAIN |
1 | ||
| 23271-15050 |
3AU..AA60 RETURN |
1 | ||
| 95332-04040 |
3AU..AA60 *H,L=340,RETURN |
1 | ||
| 23271-15040 |
3AU..AA60 MAIN |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23271-15010 |
3AU..AA60 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3AU..AA60 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
3AU..AA60 |
2 | ||
| 23814 - PIPE, FUEL DELIVERY | ||||
| 23814-15010 |
3AU..AA60 |
1 | ||
| 23814-15011 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90119-08504 | ||||
| 90464-00231 | ||||
| 91651-40614 | ||||
