AA60-AEHDS (1981)

Toyota Carina Fr

Production Sep 1981 - Dec 1987
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )3AU

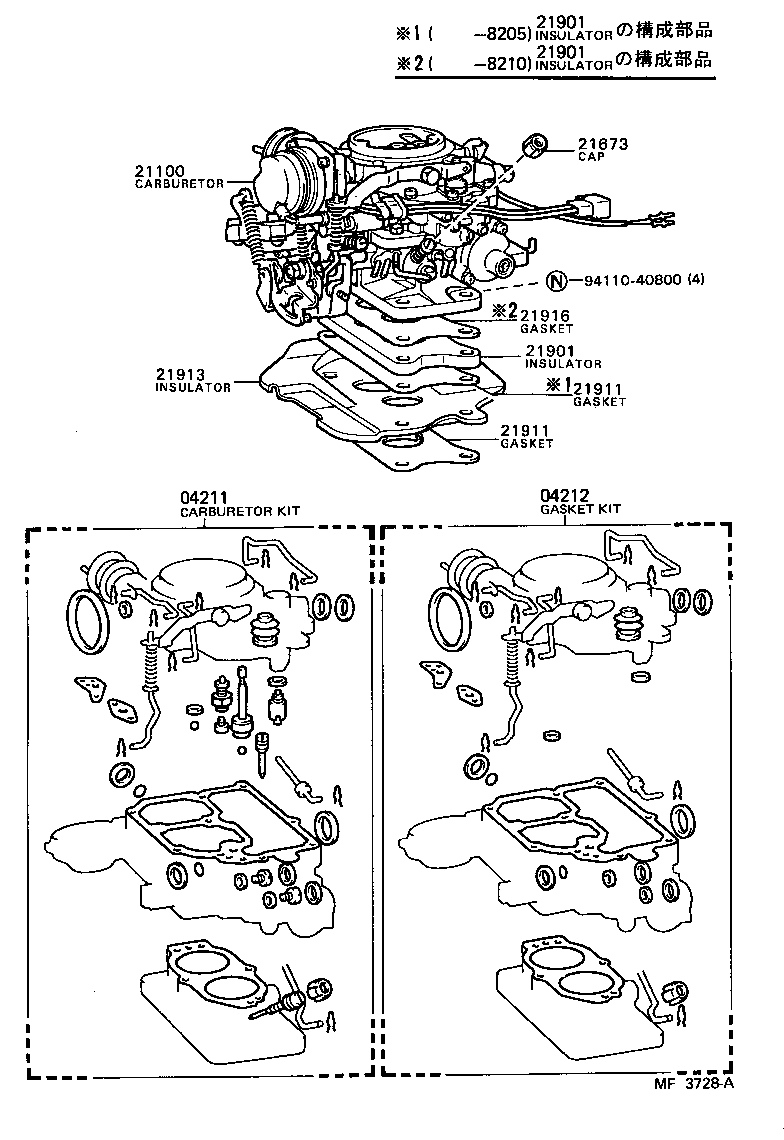

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21901 21901 21901 21911 21911 21913 21916 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-15080

3AU..AA60

 1
04212 - GASKET KIT, CARBURETOR
04212-15050

3AU..AA60

 1
21100 - CARBURETOR ASSY
21100-15240

3AU..AA60..3FC

 1
21100-15241

3AU..AA60..ATM

 1
21673 - CAP, IDLE LIMIT
21673-38020

3AU..AA60

 1
21673-13280

3AU..AA60

 1
21673-38020

3AU..AA60

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15011

3AU..AA60

 1
21901-15012

3AU..AA60

 1
21901-15010

3AU..AA60

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15011

3AU..AA60

 1
21901-15012

3AU..AA60

 1
21901-15010

3AU..AA60

 1
21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1
21901-15011

3AU..AA60

 1
21901-15012

3AU..AA60

 1
21901-15010

3AU..AA60

 1
21911 - GASKET, CARBURETOR
21911-15010

3AU..AA60

 2
21914-15020

3AU..AA60

 2
21911 - GASKET, CARBURETOR
21911-15010

3AU..AA60

 2
21914-15020

3AU..AA60

 2
21913 - INSULATOR, CARBURETOR HEAT, NO.2
21913-15010

3AU..AA60

 1
21916 - GASKET, CARBURETOR, NO.2
21914-15020

3AU..AA60

 1
Common parts
94110-40800
