AA60-AEHDS (1981)
Toyota Carina Fr
Production
Sep 1981
-
Dec 1987
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

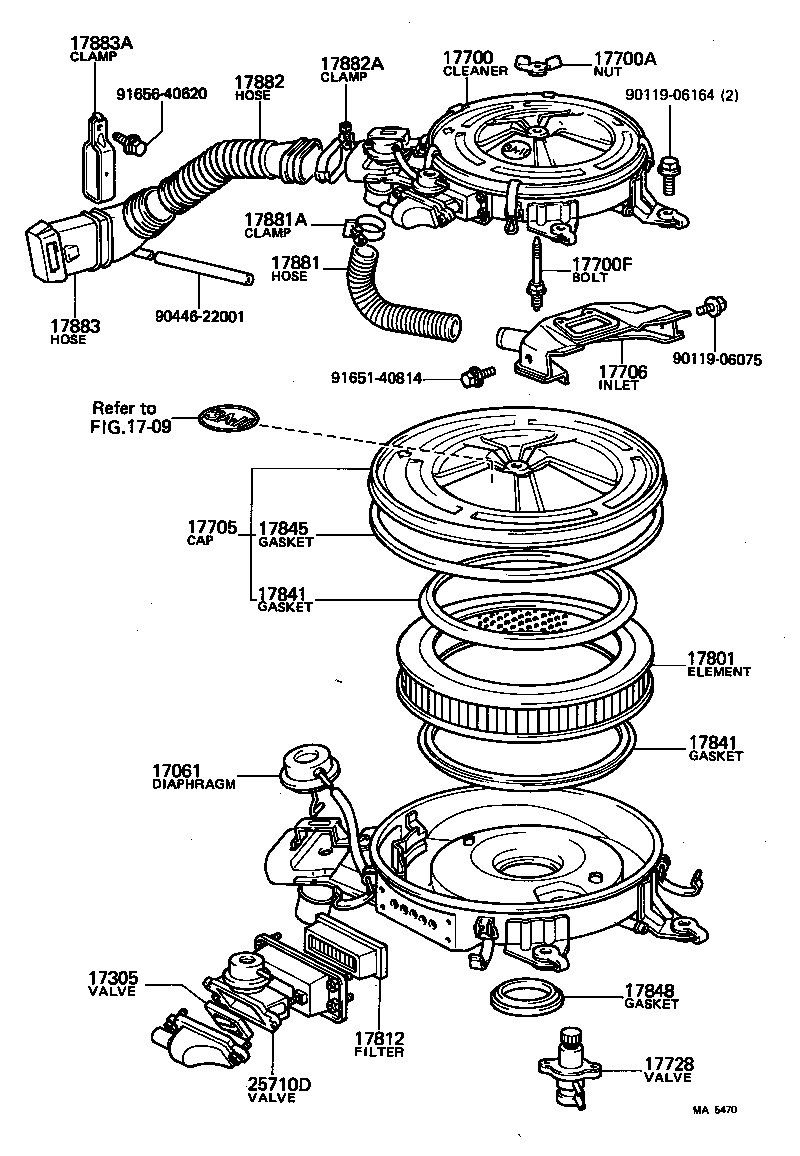

(8109-8305)3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
3AU..AA60 |
1 | ||
| 17061-15040 |
3AU..AA60 |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15030 |
3AU..AA60 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15080 |
3AU..AA60 |
1 | ||
| 17700-15150 |
3AU..AA60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
3AU..AA60 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
3AU..AA60 L=65,S=25&10.5 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15030 |
3AU..AA60 |
1 | ||
| 17705-15060 |
3AU..AA60 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15040 |
3AU..AA60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15040 |
3AU..AA60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
3AU..AA60 |
1 | ||
| 17812 - FILTER, AIR CLEANER, NO.2 | ||||
| 17812-15010 |
3AU..AA60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
3AU..AA60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
3AU..AA60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-15020 |
3AU..AA60 |
1 | ||
| 17845-61011 |
3AU..AA60 *G,L=1060 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63001 |
3AU..AA60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
3AU..AA60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
3AU..AA60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-14040 |
3AU..AA60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
3AU..AA60 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-14030 |
3AU..AA60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01018 |
3AU..AA60 |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-15070 |
3AU..AA60 |
1 | ||
| 25710-63010 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06164 | ||||
| 90446-22001 | ||||
| 91651-40814 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 1709 | ||||

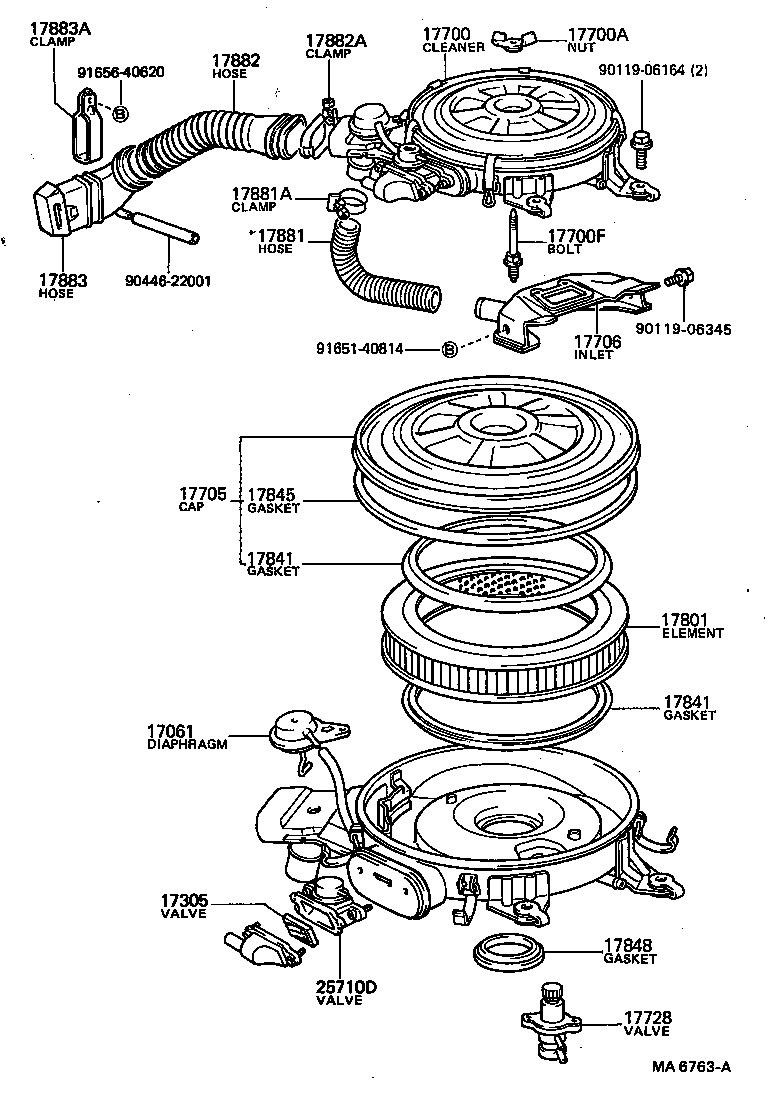

(8305- )3AU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-26010 |
3AU..AA60 |
1 | ||
| 17061-15040 |
3AU..AA60 |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17305-15030 |
3AU..AA60 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-15080 |
3AU..AA60 |
1 | ||
| 17700-15150 |
3AU..AA60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
3AU..AA60 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
3AU..AA60 L=65,S=25&10.5 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15030 |
3AU..AA60 |
1 | ||
| 17705-15060 |
3AU..AA60 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-15040 |
3AU..AA60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-15040 |
3AU..AA60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
3AU..AA60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
3AU..AA60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
3AU..AA60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-15020 |
3AU..AA60 |
1 | ||
| 17845-61011 |
3AU..AA60 *G,L=1060 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63001 |
3AU..AA60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-63010 |
3AU..AA60 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
3AU..AA60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-14040 |
3AU..AA60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
3AU..AA60 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17881-14030 |
3AU..AA60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-01018 |
3AU..AA60 |
1 | ||
| 25710D - VALVE ASSY, AIR SWITCHING | ||||
| 25710-15070 |
3AU..AA60 |
1 | ||
| 25710-63010 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90119-06164 | ||||
| 90119-06345 | ||||
| 90446-22001 | ||||
| 91651-40814 | ||||
| 91656-40620 | ||||
