AA60-AEHDS (1981)
Toyota Carina Fr
ILLUST NO. 3 OF 3(8109- )3AU,4AGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
3AU,4AGEU..AA6# |
1 | ||
| 23322-54010 |
3AU,4AGEU..AA6# |
1 | ||
| 23322-54010 |
3AU,4AGEU..AA6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3AU,4AGEU..AA6# |
1 | ||
| 96711-19007 |
3AU,4AGEU..AA6# |
1 | ||
| 96711-19007 |
3AU,4AGEU..AA6# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16444-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16444-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16445-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16445-35070 |
3AU,4AGEU..AA6# |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3AU,4AGEU..AA6# |
1 | ||
| 16401-63010 |
3AU,4AGEU..AA6# |
1 | ||
| 16401-63010 |
3AU,4AGEU..AA6# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15090 |
3AU..AA60..ATM |
1 | ||
| 16403-15090 |
3AU..AA60..ATM |
1 | ||
| 16403-15090 |
3AU..AA60..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16442-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16442-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16443-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16443-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16451-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16451-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16452-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16452-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16462-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16462-26330 |
3AU,4AGEU..AA6# |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16463-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16463-26330 |
3AU,4AGEU..AA6# |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-35080 |
3AU..AA60..3FC |
1 | ||
| 16491-35080 |
3AU..AA60..3FC |
1 | ||
| 16491-35080 |
3AU..AA60..3FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
3AU..AA60..ATM |
2 | ||
| 16492-35080 |
3AU..AA60..ATM |
2 | ||
| 16492-35080 |
3AU..AA60..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-35080 |
3AU..AA60..ATM |
2 | ||
| 16493-35080 |
3AU..AA60..ATM |
2 | ||
| 16493-35080 |
3AU..AA60..ATM |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-35080 |
3AU..AA60..ATM |
2 | ||
| 16494-35080 |
3AU..AA60..ATM |
2 | ||
| 16494-35080 |
3AU..AA60..ATM |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-35080 |
3AU..AA60..ATM |
2 | ||
| 16496-35080 |
3AU..AA60..ATM |
2 | ||
| 16496-35080 |
3AU..AA60..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-15240 |
3AU..AA60..ATM LH |
1 | ||
| 16495-15240 |
3AU..AA60..ATM LH |
1 | ||
| 16495-15240 |
3AU..AA60..ATM LH |
1 | ||
| 16495-35080 |
3AU..AA60..3FC |
2 | ||
| 16495-35080 |
3AU..AA60..3FC |
2 | ||
| 16495-35080 |
3AU..AA60..3FC |
2 | ||
| 16495-26340 |
3AU..AA60..ATM RH |
1 | ||
| 16495-26340 |
3AU..AA60..ATM RH |
1 | ||
| 16495-26340 |
3AU..AA60..ATM RH |
1 | ||

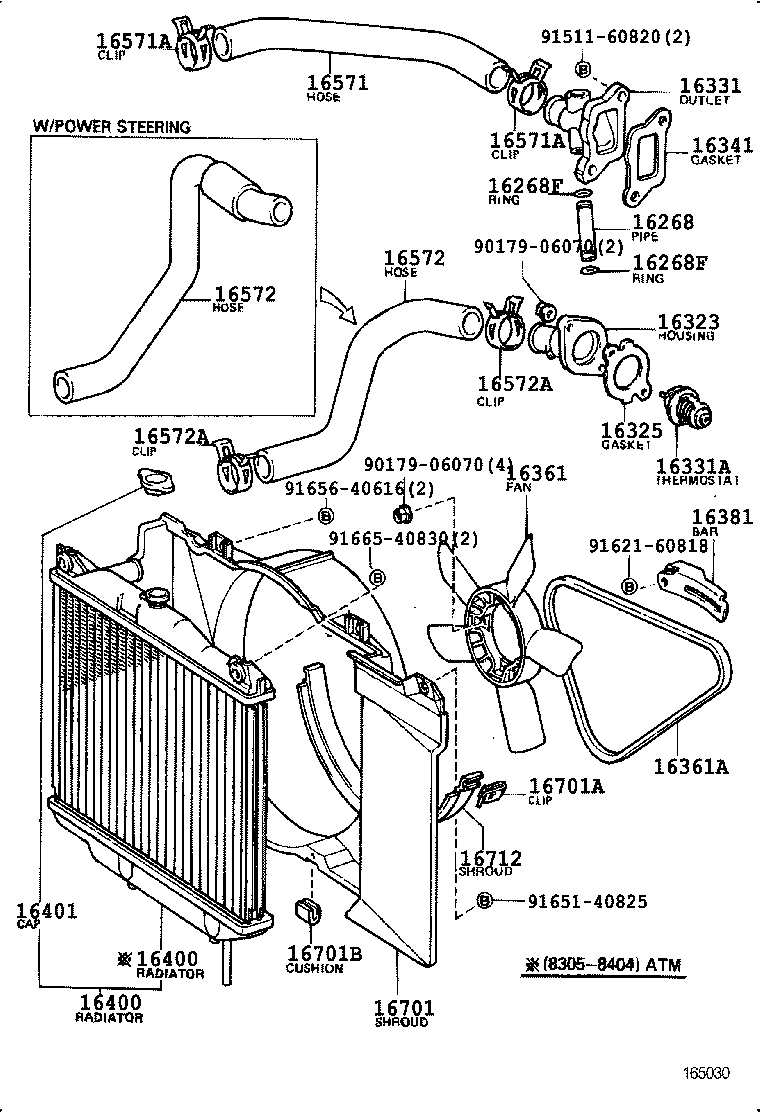

ILLUST NO. 1 OF 3(8109- )3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
3AU..AA60 |
1 | ||
| 16268-15011 |
3AU..AA60 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
3AU..AA60 |
2 | ||
| 96711-24013 |
3AU,4AGEU..AA6# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
3AU..AA60 |
2 | ||
| 96711-24013 |
3AU,4AGEU..AA6# |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15020 |
3AU..AA60 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
3AU,4AGEU..AA6# |
1 | ||
| 16325-70020 |
3AU..AA60 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15010 |
3AU..AA60 |
1 | ||
| 16331-15050 |
3AU..AA60 |
1 | ||
| 16331-15050 |
3AU..AA60..3FC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
3AU,4AGEU..AA6# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15011 |
3AU..AA60 |
1 | ||
| 16341-15010 |
3AU..AA60 |
1 | ||
| 16361 - FAN | ||||
| 16361-15020 |
3AU..AA60 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-50985 |
3AU..AA60 |
1 | ||
| 99321-51000 |
3AU..AA60 W/COOLER |
1 | ||
| 99321-50975 |
3AU..AA60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15011 |
3AU..AA60 |
1 | ||
| 16381-15030 |
3AU..AA60 |
1 | ||
| 88688-12040 |
3AU..AA60 W/COOLER |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15090 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16410-15240 |
3AU..AA60..ATM W/O CAP |
1 | ||
| 16400-15091 |
3AU..AA60..3FC W/CAP |
1 | ||
| 16400-15240 |
3AU..AA60..ATM W/CAP |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3AU,4AGEU..AA6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15070 |
3AU..AA60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-33002 |
3AU,4AGEU..AA6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-33002 |
3AU,4AGEU..AA6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15101 |
3AU..AA60..DLX MY ROAD,W/PS |
1 | ||
| 16572-15101 |
3AU..AA60..SE,SG,ST W/PS |
1 | ||
| 16572-15070 |
3AU..AA60 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15101 |
3AU..AA60..DLX MY ROAD,W/PS |
1 | ||
| 16572-15101 |
3AU..AA60..SE,SG,ST W/PS |
1 | ||
| 16572-15070 |
3AU..AA60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-33002 |
3AU,4AGEU..AA6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-34001 |
3AU,4AGEU..AA6# |
2 | ||
| 90467-33002 |
3AU,4AGEU..AA6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-15070 |
3AU,4AGEU..AA6# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
3AU,4AGEU..AA6# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
3AU,4AGEU..AA6# |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
3AU,4AGEU..AA6# W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91511-60820 | ||||
| 91621-60818 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
ILLUST NO. 2 OF 3(8211- )3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-15040 |
3AU..AA60 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
3AU..AA60 |
3 | ||
| 99555-00100 |
3AU..AA60 |
3 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
3AU..AA60 |
3 | ||
| 99555-00100 |
3AU..AA60 |
3 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99553-00100 |
3AU..AA60 |
3 | ||
| 99555-00100 |
3AU..AA60 |
3 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-15040 |
3AU..AA60 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 91651-40814 | ||||
