AA60-ACPSS (1983)

Toyota Carina Fr

Production May 1983 - Jul 1985
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)CP

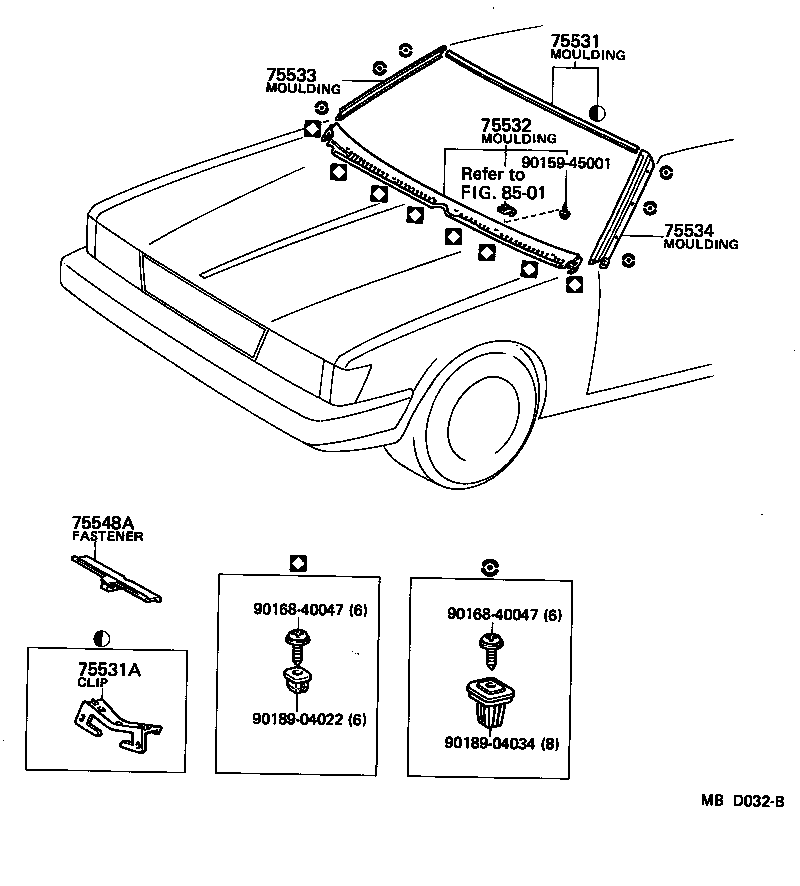

Click highlighted areas on diagram

diagram 75531 75531A 75532 75533 75534 75548A 8501 9015945001 9016840047 9016840047 9018904022 9018904034
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75503-14040

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,ST)

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75546-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 5
75532 - MOULDING, WINDSHIELD, LOWER
75535-14120

AA60,CA6#,SA60,TA63,67..DLX,GTT,SG,ST,STD

 1
75535-14120

AA6#,CA6#,KA67,SA60,TA6#..DLX,GT,GTT,SG,ST,STD

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75053-14050

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,ST)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75054-14040

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,ST)

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

AA6#,RA63,SA60,TA61,63..CP

 6
Common parts
90159-45001
90168-40047
90189-04022
90189-04034
Linked diagrams
8501
