AA60-ACPES (1983)

Toyota Carina Fr

Production May 1983 - Jul 1985
Engine 3AU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8109-8507)CP

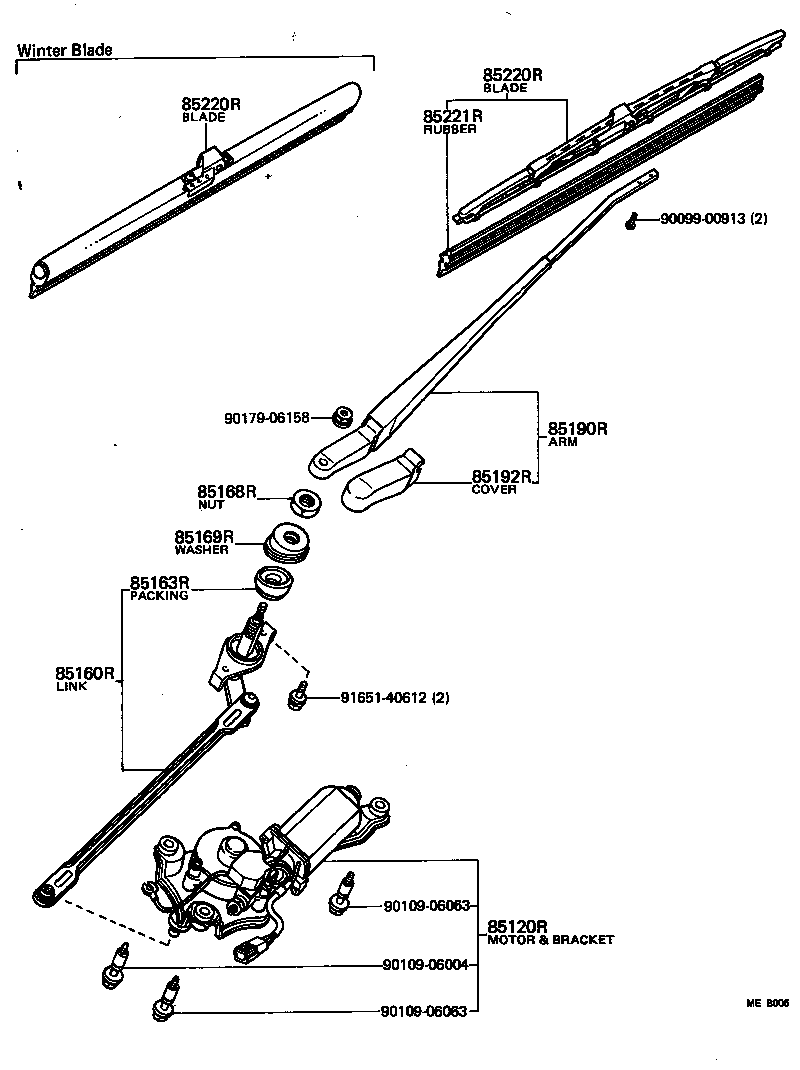

Click highlighted areas on diagram

diagram 85120R 85160R 85163R 85168R 85169R 85190R 85192R 85220R 85220R 85221R 9009900913 9010906004 9010906063 9010906063 9017906158 9165140612
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-14020

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
85160R - LINK ASSY, REAR WIPER
85160-14280

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85163-14280

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05159

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-14280

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

 1
85190R - ARM ASSY, REAR WIPER
85190-14570

AA6#,SA60,TA63..CP..(GT,GTT,SE)

 1
85190-14400

AA60,RA63,TA61,63..CP..(GT,GTT,SE)

 1
85192R - COVER, REAR WIPER ARM
85192-14060

AA60,RA63,TA61,63..CP..(GT,GTT,SE)

 1
85192-32010

AA6#,SA60,TA63..CP..(GT,GTT,SE)

 1
85220R - BLADE ASSY, REAR WIPER
85220-24040

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

WINTER BLADE(COLD SPEC)

 1
85220-32120

AA6#,SA60,TA63..CP..(GT,GTT,SE)

 1
85220-14340

AA60,RA63,TA61,63..CP..(GT,GTT,SE)

 1
85220R - BLADE ASSY, REAR WIPER
85220-24040

AA6#,RA63,SA60,TA61,63..CP..(GT,GTT,SE)

WINTER BLADE(COLD SPEC)

 1
85220-32120

AA6#,SA60,TA63..CP..(GT,GTT,SE)

 1
85220-14340

AA60,RA63,TA61,63..CP..(GT,GTT,SE)

 1
85221R - BLADE, REAR WIPER
85221-30080

AA60,RA63,TA61,63..CP..(GT,SE)

 1
Common parts
90099-00913
90109-06004
90109-06063
90179-06158
91651-40612
