AA60-ACMSS (1981)

Toyota Carina Fr

Production Sep 1981 - Jul 1985
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )AA60..SE,SG,ST ; (8401- )AA60..DLX

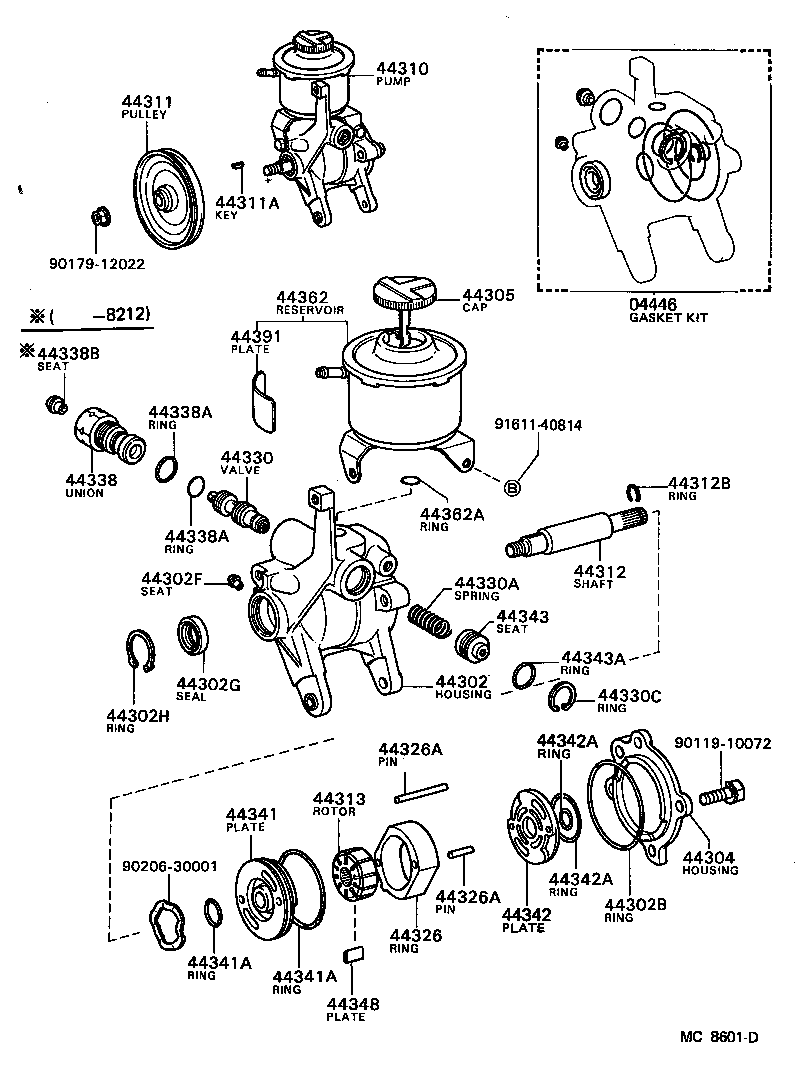

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302F 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312B 44313 44326 44326A 44326A 44330 44330A 44330C 44338 44338A 44338A 44338B 44341 44341A 44341A 44342 44342A 44342A 44343 44343A 44348 44362 44362A 44391 9011910072 9017912022 9020630001 9161140814
Part # Description Qty Price
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-12020

AA60..SE,SG,ST

 1
44302-12021

AA60..SE,SG,ST

 1
44302-16010

AA60..SE,SG,ST

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18003

AA60..SE,SG,ST

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44324-12020

AA60..SE,SG,ST

 1
44310 - PUMP ASSY, VANE
44320-12030

AA60..SE,SG,ST

 1
44320-12031

AA60..SE,SG,ST

 1
44320-12032

AA60..SE,SG,ST

 1
44338 - UNION, PRESSURE PORT
44308-14050

AA60..SE,SG,ST

 1
44308-12010

AA60..SE,SG,ST

 1
44338B - SEAT, UNION(FOR PRESSURE PORT UNION)
90410-06004

AA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-12010

AA60..SE,SG,ST

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-37002

AA60..SE,SG,ST

ID=37.5

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-37002

AA60..SE,SG,ST

ID=37.5

 1
Common parts
90119-10072
90179-12022
90206-30001
91611-40814
