AA60-ACMFS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

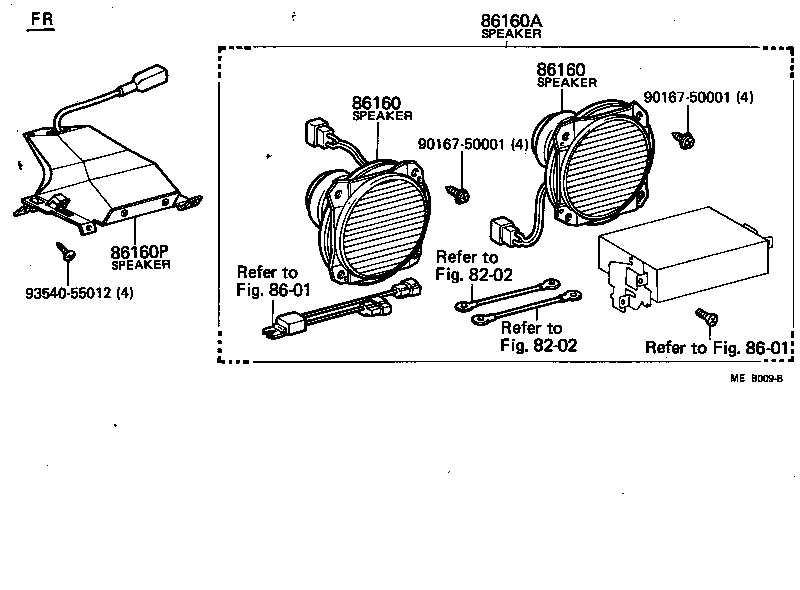

ILLUST NO. 1 OF 2(8109-8804)

Click highlighted areas on diagram

diagram 8202 8202 8601 8601 86160 86160 86160A 86160P 9016750001 9016750001 9354055012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-14130

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-14130

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
86160A - SPEAKER SET, FRONT
86160-19345

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-19355

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
Common parts
90167-50001
93540-55012
Linked diagrams
8202
8601

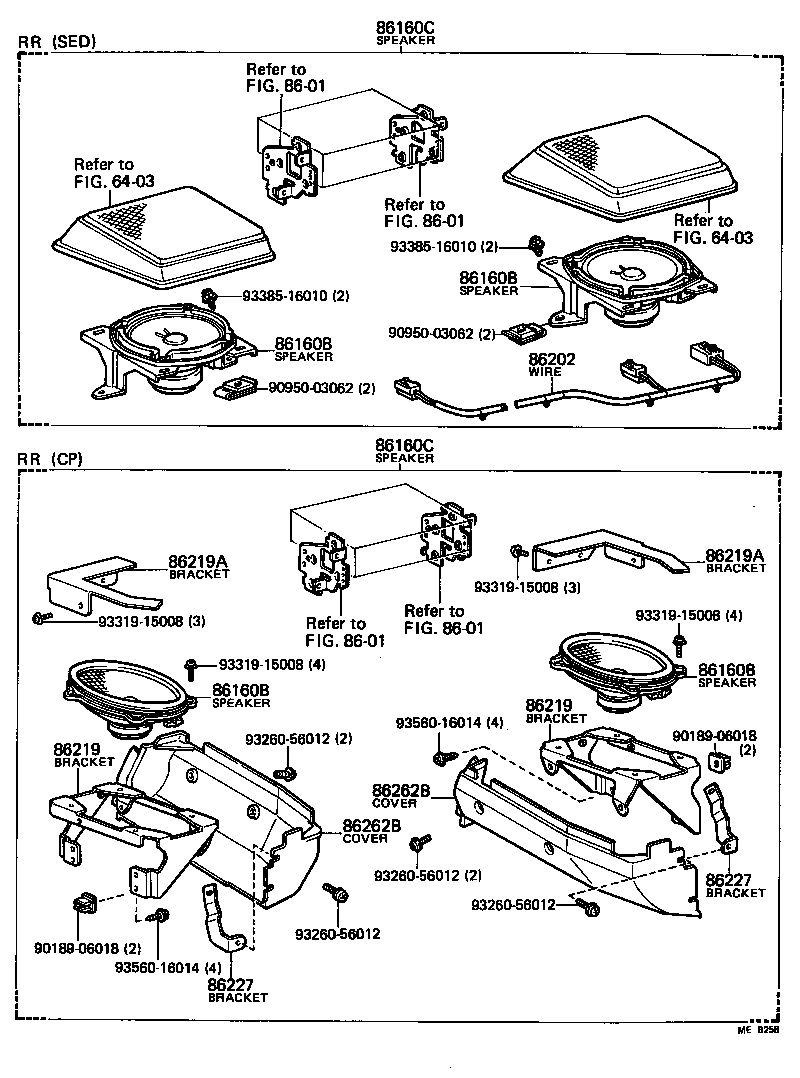

ILLUST NO. 2 OF 2(8109-8507)

Click highlighted areas on diagram

diagram 6403 6403 8601 8601 8601 8601 86160B 86160B 86160B 86160B 86160C 86160C 86202 86219 86219 86219A 86219A 86227 86227 86262B 86262B 9018906018 9018906018 9095003062 9095003062 9326056012 9326056012 9326056012 9326056012 9331915008 9331915008 9331915008 9331915008 9338516010 9338516010 9356016014 9356016014
Part # Description Qty Price
Common parts
90189-06018
90950-03062
93260-56012
93319-15008
93385-16010
93560-16014
Linked diagrams
6403
8601
