AA60-ACMFS (1981)
Toyota Carina Fr
Production
Sep 1981
-
May 1983
Engine
3AU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8109-8507)CP

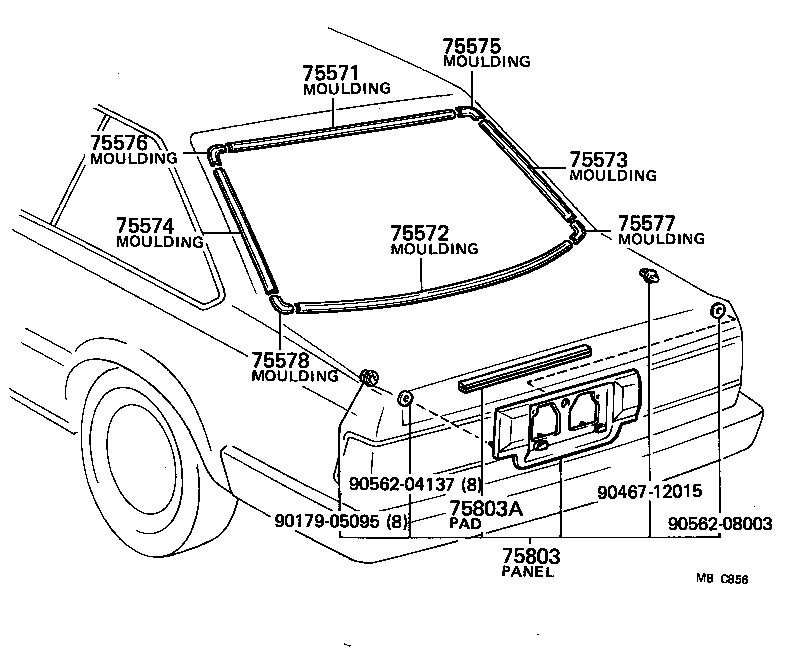

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-14160 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-14140 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75573 - MOULDING, BACK WINDOW SIDE, RH | ||||
| 75573-14170 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75574 - MOULDING, BACK WINDOW SIDE, LH | ||||
| 75573-14170 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75575 - MOULDING, BACK WINDOW CORNER, UPPER RH | ||||
| 75581-14110 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75576 - MOULDING, BACK WINDOW CORNER, UPPER LH | ||||
| 75581-14110 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75577 - MOULDING, BACK WINDOW CORNER, LOWER RH | ||||
| 75583-14080 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75578 - MOULDING, BACK WINDOW CORNER, LOWER LH | ||||
| 75583-14080 |
AA60,SA60,TA63..CP..(SE,SG) |
1 | ||
| 75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER | ||||
| 75082-19245 |
AA60,SA60..CP..SG |
1 | ||
| 75803A - PAD, LOWER BACK PANEL MOULDING, NO.1 | ||||
| 75845-14140 |
AA6#,RA63,SA60,TA61,63..CP |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 90467-12015 | ||||
| 90562-04137 | ||||
| 90562-08003 | ||||
