AA60-ACMFS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )

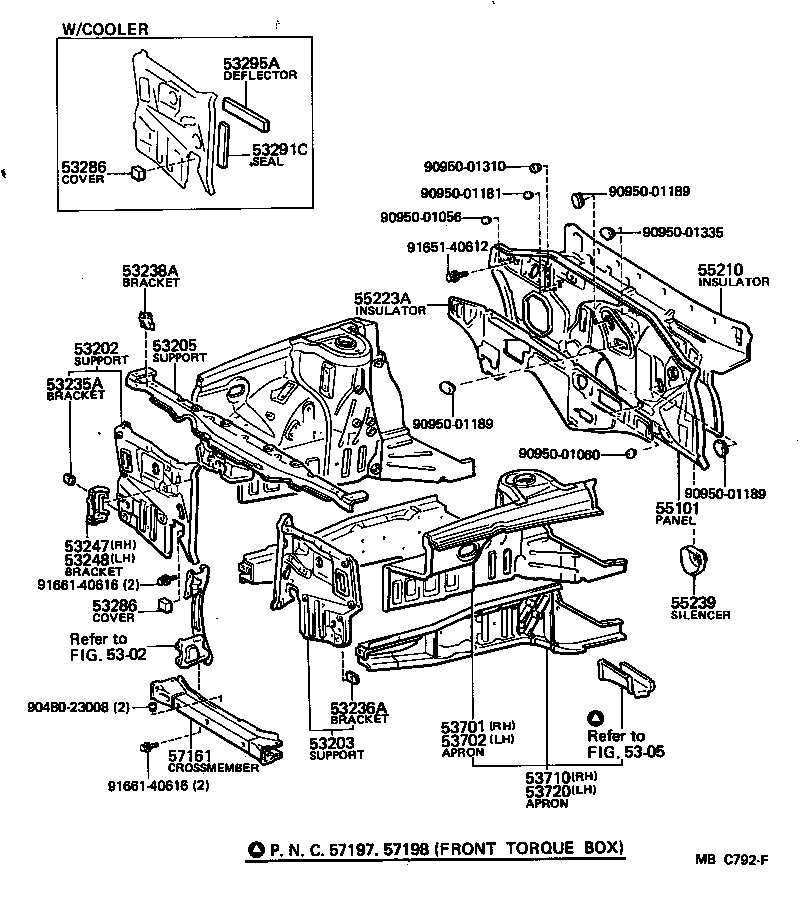

Click highlighted areas on diagram

diagram 5302 5305 53202 53203 53205 53235A 53236A 53238A 53247 53248 53286 53286 53291C 53295A 53701 53702 53710 53720 55101 55210 55223A 55239 57161 9048023008 9095001056 9095001060 9095001181 9095001189 9095001189 9095001189 9095001310 9095001335 9165140612 9166140616 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-14120

AA60,SA60

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-14170

AA6#,RA63,SA60,TA61,63

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
53238A - BRACKET, HOOD BUMPER MOUNTING
53238-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
53247 - BRACKET, HEADLAMP MOUNTING, INNER RH
53247-14060

AA6#,RA63,SA60,TA61,63..CP,WG

 1
53248 - BRACKET, HEADLAMP MOUNTING, INNER LH
53248-14040

AA6#,RA63,SA60,TA61,63..CP,WG

 1
53286 - COVER, FRONT BUMPER ARM HOLE
53285-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
53286 - COVER, FRONT BUMPER ARM HOLE
53285-14040

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-14913

AA60,CA60,SA60

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-14912

AA60

 1
53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH
53710-14900

AA6#,CA60,RA63,SA60,TA61,63

 1
53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH
53720-14920

AA60

 1
55101 - PANEL SUB-ASSY, DASH
55101-14910

AA60

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-14160

AA6#

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55212-14060

AA6#,CA6#,KA67,RA63,SA60,TA6#

 1
57161 - CROSSMEMBER, FRONT
57104-14090

AA60,CA6#,RA63,SA60,TA6#

 1
Common parts
90480-23008
90950-01056
90950-01060
90950-01181
90950-01189
90950-01310
90950-01335
91651-40612
91661-40616
Linked diagrams
5302
5305
