AA60-ACMFS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

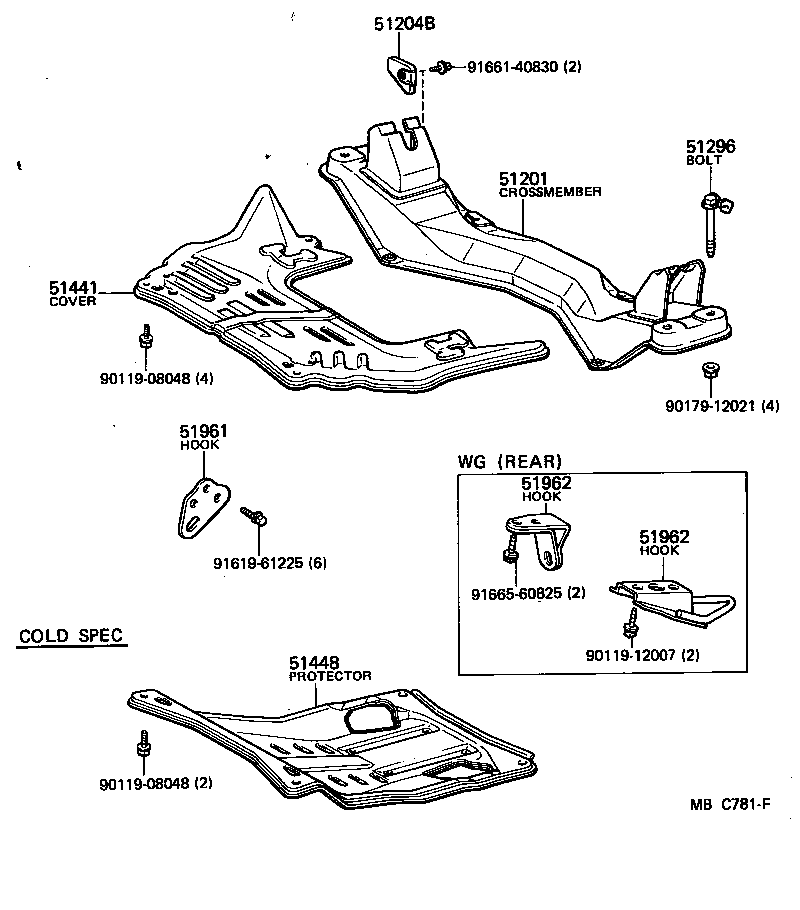

ILLUST NO. 1 OF 2(8109- )

Click highlighted areas on diagram

diagram 51201 51204B 51296 51441 51448 51961 51962 51962 9011908048 9011908048 9011912007 9017912021 9161961225 9166140830 9166560825
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-14160

AA60

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

AA6#,CA60,RA63,SA60,TA61,63

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-14060

AA60,TA6#

 1
51448 - PROTECTOR, OIL PAN
51447-14040

AA60,KA67,SA60,TA6#

 1
51961 - HOOK, NO.1
51963-14080

AA6#,CA6#,KA67,RA63,SA60,TA6#

 2
Common parts
90119-08048
90119-12007
90179-12021
91619-61225
91661-40830
91665-60825
