AA60-ACMFS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8109- )AA60,CA6#,SA60..MTM

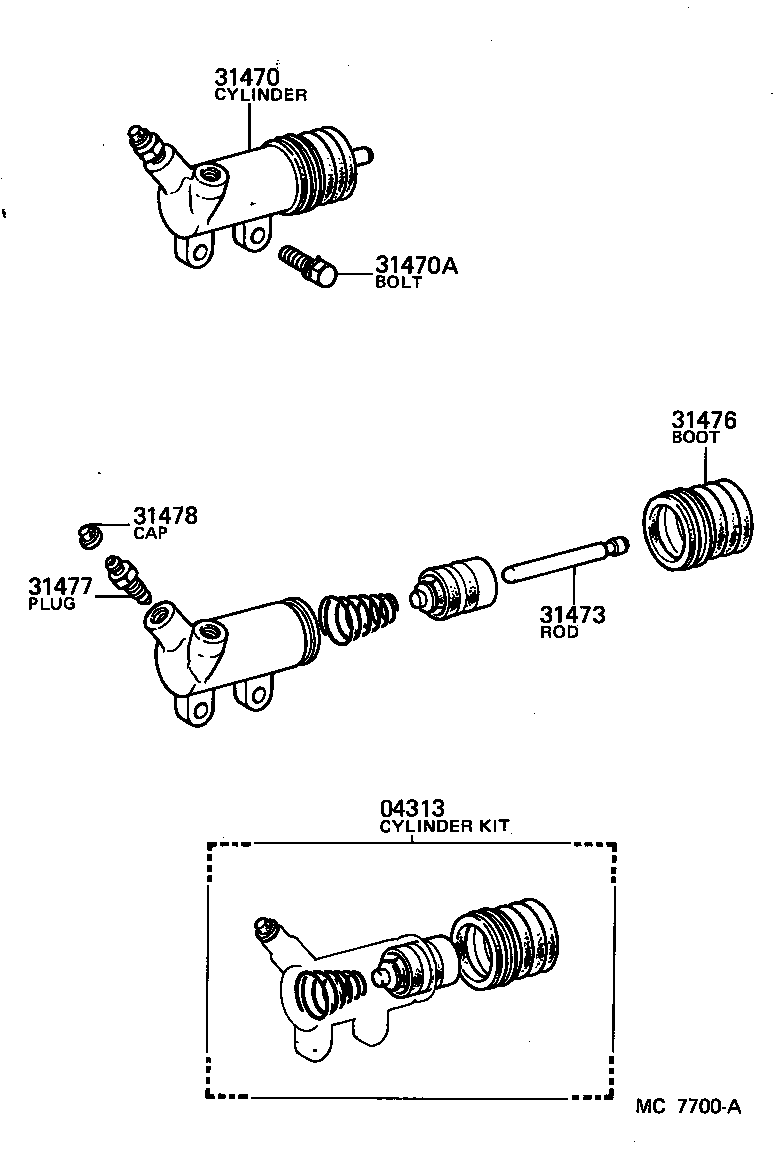

Click highlighted areas on diagram

diagram 04313 31470 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22020

AA6#,CA6#,KA67,RA63,SA60,TA6#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14040

AA60,CA6#,SA60..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

AA6#,CA6#,KA67,RA63,SA60,TA6#..MTM

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20031

AA6#,CA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

AA6#,CA6#,KA67,RA63,SA60,TA6#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

AA6#,CA6#,KA67,RA63,SA60,TA6#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

AA6#,CA6#,KA67,RA63,SA60,TA6#..MTM

 1
