Toyota Carina fr AA60 CYLINDER HEAD

AA60-ACMFS (1981)

Toyota Carina Fr

Production Sep 1981 - May 1983

Engine 3AU

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8109-8304)3AU

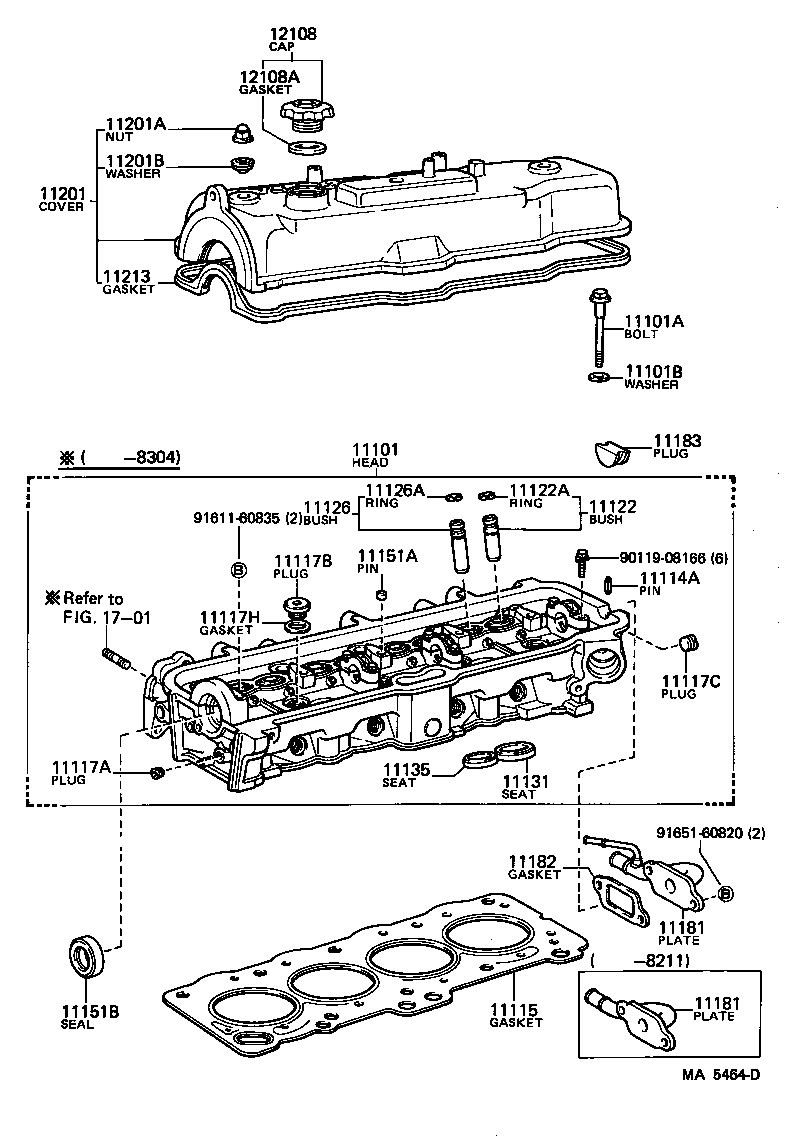

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19125	3AU..AA60	09/1981 - 01/1982	1
11101-19126	3AU..AA60	01/1982 - 04/1983	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025	3AU..AA60 *10-1.25PX97.5-22	09/1981 - 12/1987	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	3AU,4AGEU..AA6#	09/1981 - 04/1988	10
11114A - PIN, STRAIGHT
90254-03003	3AU..AA60 L=8,OD=3.2	09/1981 - 06/1984	1
11115 - GASKET, CYLINDER HEAD
11115-15042	3AU..AA60	09/1981 - 03/1982	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-51002	3AU..AA60	09/1981 - 06/1984	6
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002	3AU..AA60	09/1981 - 12/1987	4
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-54002	3AU..AA60	09/1981 - 12/1987	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	3AU..AA60	09/1981 - 12/1987	4
11122 - BUSH, INTAKE VALVE GUIDE
11123-15020	3AU..AA60 O/S 0.05,O/S 0.05	09/1981 - 02/1986	4
11122-15020	3AU..AA60 STD,STD	09/1981 - 02/1986	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001	3AU..AA60	09/1981 - 02/1986	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-15020	3AU..AA60 O/S 0.05,O/S 0.05	09/1981 - 02/1986	4
11126-15020	3AU..AA60 STD,STD	09/1981 - 02/1986	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001	3AU..AA60	09/1981 - 02/1986	4
11131 - SEAT, INTAKE VALVE
11131-15010	3AU..AA60 STD,STD	09/1981 - 12/1987	4
11132-15010	3AU..AA60 O/S 0.03,O/S 0.03	09/1981 - 12/1987	4
11135 - SEAT, EXHAUST VALVE
11135-15010	3AU..AA60 STD	09/1981 - 04/1982	4
11136-15010	3AU..AA60 O/S 0.03	09/1981 - 04/1982	4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021	3AU..AA60 長さ=8,外径=11	09/1981 - 12/1987	13
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35003	3AU..AA60	09/1981 - 08/1983	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-15020	3AU..AA60	09/1981 - 11/1982	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-15020	3AU..AA60	09/1981 - 11/1982	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-15010	3AU..AA60	09/1981 - 12/1981	1
11183 - PLUG, SEMICIRCULAR
11183-15010	3AU..AA60	09/1981 - 12/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19016	3AU..AA60	09/1981 - 05/1983	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007	3AU..AA60	09/1981 - 12/1987	3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001	3AU..AA60	09/1981 - 12/1987	3
11213 - GASKET, CYLINDER HEAD COVER
11213-15020	3AU..AA60	09/1981 - 12/1987	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	3AU..AA60	01/1983 - 03/1983	1
12180-13010	3AU..AA60	09/1981 - 01/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	3AU,4AGEU..AA6#	09/1981 - 04/1988	1
Common parts
90119-08166
91611-60835
91651-60820
Linked diagrams
1701

(8304- )3AU

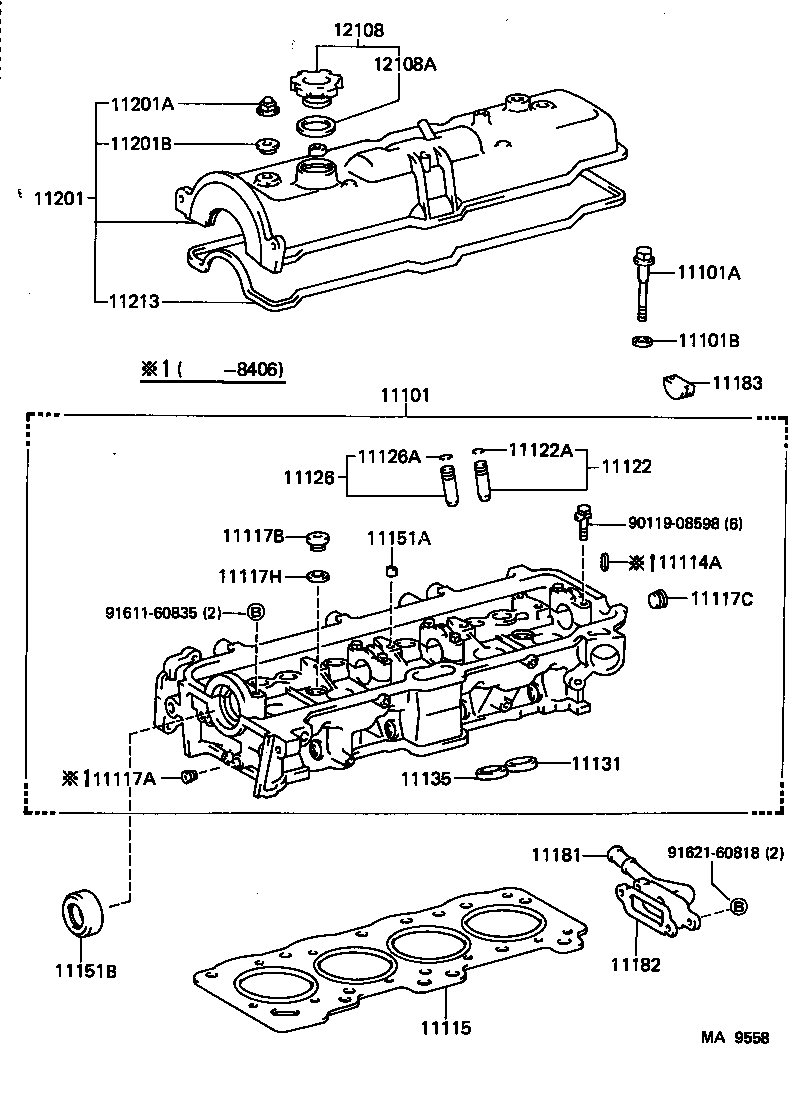

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-19125	3AU..AA60	09/1981 - 01/1982	1
11101-19126	3AU..AA60	01/1982 - 04/1983	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025	3AU..AA60 *10-1.25PX97.5-22	09/1981 - 12/1987	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	3AU,4AGEU..AA6#	09/1981 - 04/1988	10
11114A - PIN, STRAIGHT
90254-03003	3AU..AA60 L=8,OD=3.2	09/1981 - 06/1984	1
11115 - GASKET, CYLINDER HEAD
11115-15042	3AU..AA60	09/1981 - 03/1982	1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-51002	3AU..AA60	09/1981 - 06/1984	6
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002	3AU..AA60	09/1981 - 12/1987	4
11117C - PLUG, W/HEAD TAPER SCREW, NO.3
90344-54002	3AU..AA60	09/1981 - 12/1987	1
11117H - GASKET(FOR WATER HOLE)
90430-20004	3AU..AA60	09/1981 - 12/1987	4
11122 - BUSH, INTAKE VALVE GUIDE
11123-15020	3AU..AA60 O/S 0.05,O/S 0.05	09/1981 - 02/1986	4
11122-15020	3AU..AA60 STD,STD	09/1981 - 02/1986	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001	3AU..AA60	09/1981 - 02/1986	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-15020	3AU..AA60 O/S 0.05,O/S 0.05	09/1981 - 02/1986	4
11126-15020	3AU..AA60 STD,STD	09/1981 - 02/1986	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001	3AU..AA60	09/1981 - 02/1986	4
11131 - SEAT, INTAKE VALVE
11131-15010	3AU..AA60 STD,STD	09/1981 - 12/1987	4
11132-15010	3AU..AA60 O/S 0.03,O/S 0.03	09/1981 - 12/1987	4
11135 - SEAT, EXHAUST VALVE
11135-15010	3AU..AA60 STD	09/1981 - 04/1982	4
11136-15010	3AU..AA60 O/S 0.03	09/1981 - 04/1982	4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021	3AU..AA60 長さ=8,外径=11	09/1981 - 12/1987	13
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35003	3AU..AA60	09/1981 - 08/1983	1
11181 - PLATE, CYLINDER HEAD, REAR
11181-15020	3AU..AA60	09/1981 - 11/1982	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-15010	3AU..AA60	09/1981 - 12/1981	1
11183 - PLUG, SEMICIRCULAR
11183-15010	3AU..AA60	09/1981 - 12/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19016	3AU..AA60	09/1981 - 05/1983	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007	3AU..AA60	09/1981 - 12/1987	3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001	3AU..AA60	09/1981 - 12/1987	3
11213 - GASKET, CYLINDER HEAD COVER
11213-15020	3AU..AA60	09/1981 - 12/1987	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010	3AU..AA60	01/1983 - 03/1983	1
12180-13010	3AU..AA60	09/1981 - 01/1983	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	3AU,4AGEU..AA6#	09/1981 - 04/1988	1
Common parts
90119-08598
91611-60835
91621-60818

AA60-ACMFS (1981)

(8109-8304)3AU

(8304- )3AU
